Mechanical Pedestrian Semi Electric Pallet Truck 2T 2000kg

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 8 work days

Brand: JAC

Product Description

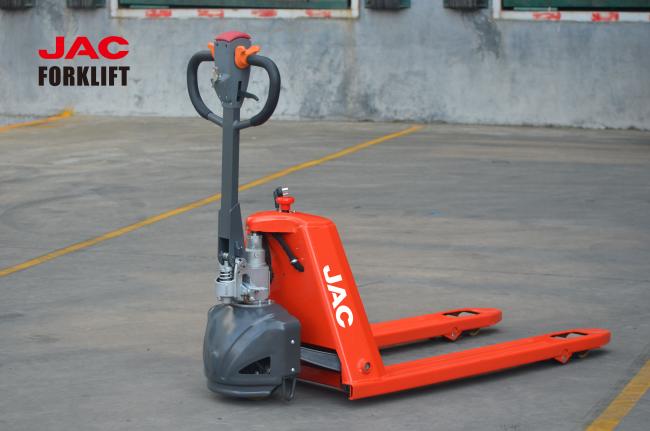

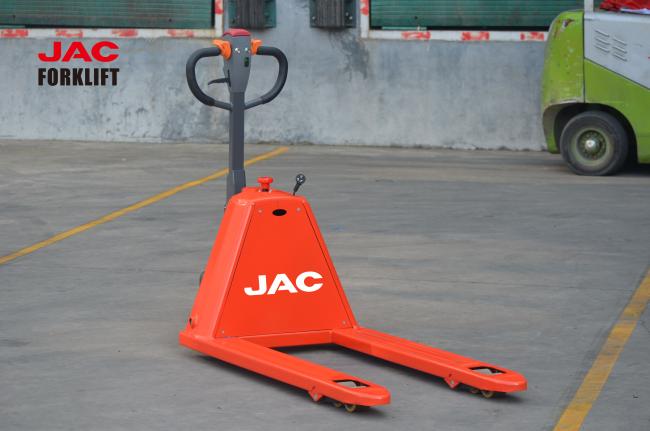

Mechanical Pedestrian Semi Electric Pallet Truck 2T 2000kg

Characteristics	1.1	Manufacturer	Unit	JAC
	1.2	Model		CBD20B
	1.3	Power unit		Electric
	1.4	Operation		Pedestrian
	1.5	Rated traction weight	kg	2000
	1.6	Load centre	mm	600
	1.7	Axle centre to fork face	mm	944
	1.8	Wheel base	mm	1243
Weights	2.1	Service weight with battery	kg	155
Wheels/Tyres	3.1	Wheels type		PU
	3.2	Driving wheel size	Φ×w(mm)	Φ210×70
	3.3	Bearing wheel size	Φ×w(mm)	Φ80×60
	3.4	Wheels, number front/rear (x = driven)		1x+0/4
	3.5	Track width	mm	400/535
Dimensions	4.1	Lift	mm	200
	4.2	Overall height(With handle)	mm	600/1170
	4.3	Lowered hength	mm	85
	4.4	Overall length	mm	1620
	4.5	Length to fork face	mm	470
	4.6	Overall width	mm	550/685
	4.7	Fork dimensions	s/e/l (mm)	50/150/1150
	4.8	Width of forks	mm	550/685
	4.9	Min.Ground clearance	mm	35
	4.10	Aisle width with pallet 1000 x 1200 across forks	mm	1825
	4.11	Aisle width with pallet 800 x 1200 along forks	mm	1875
	4.12	Min.Turning radius	mm	1415
Performance	5.1	Travel speed,laden/unladen	km/h	4.2/4.5
	5.2	Maximum climbing ability, with/without load	%	3/8
	5.3	Service brake		Electromagnetic
Drive/Battery	6.1	Drive motor, 60 minute rating	kW	0.75
	6.2	Lift motor rating at S3 15%	kW	/
	6.3	Battery voltage/rated capacity	V/Ah	2*12/32
	6.4	Battery weight (± 5%)	kg	10.1*2
Others	7.1	Type of drive control		DC power
	7.2	Noise level at operator‘s ear	dB(A)	≤70
	7.3	Steering type		Mechanical
