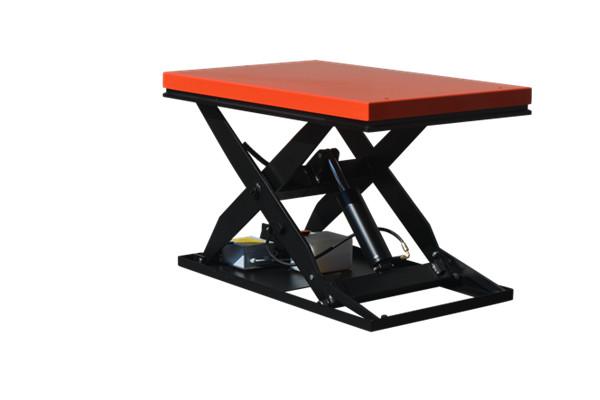

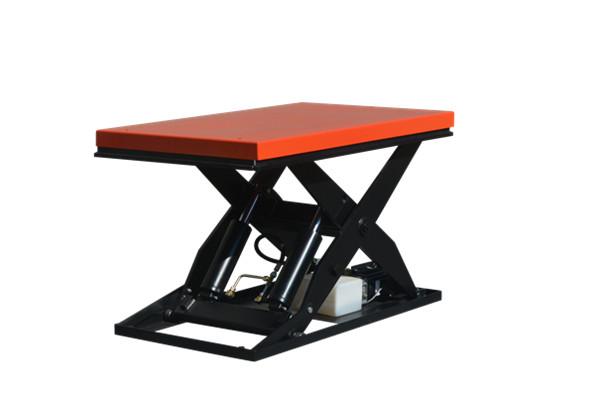

500-3000kg Electric Scissor Boom Aerial Platform Lift For Warehouse
Price:
Negotiable
MOQ:
1
Delivery Time:
8 work days
Brand:
JAC
Product Description
| Model | HIW1.0EU | HIW2.0EU | HIW4.0EU | HIW3.0EU | |
| Rated traction weight | kg | 500 | 1000 | 2000 | 3000 |
| The max. lifting height | mm | 1040 | 1040 | 1040 | 1040 |
| Lowered mast height | mm | 190 | 190 | 190 | 190 |
| Platfor Size | mm | 1300x800 | 1300x800 | 1300x800 | 1300x800 |
| Lifting time | S | 12-18 | 20-25 | 35-45 | 36-46 |
| Falling time | S | 10-16 | 17-22 | 31-41 | 30-40 |
| Hydraulic tank capacity | L | 2 | 2 | 2 | 2 |
| Lifting motor power | V | 220 | 220 | 220 | 220 |
| W | 750 | 750 | 750 | 1500 | |
| Overall weight | Kg | 198-108 | 210-220 | 250-260 | 258-268 |
Features
1.The lift is smooth and the load is large.
2.Improve work speed and efficiency.
