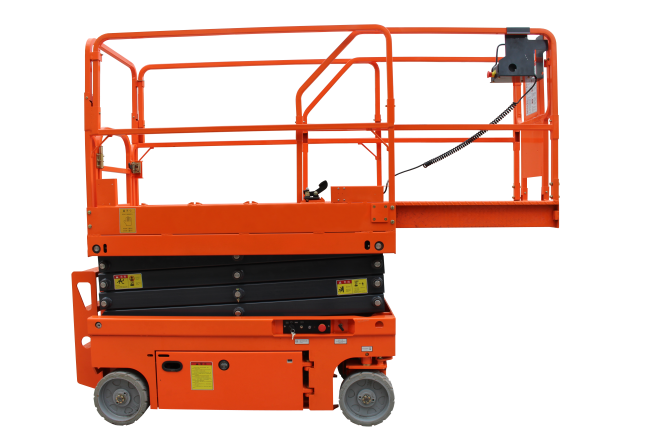

ODM Scissor Aerial Platform Lift MEWP For Material Handling

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: Negotiable

Brand: JAC FORKLIFT

Product Description

Modle		JS0812	JS0812E	JS1012	JS1012E	JS1212	JS1212E
Dmension
A1 Max.working height	m	10	10	12	12	13.9	13.9
A2 Max.platform height	m	8	8	10	10	11.9	11.9
B Overall length	m	2.4	2.4	2.4	2.4	2.4	2.4
C Overall width	m	1.15	1.15	1.15	1.15	1.15	1.15
D Overall height(guardrall unfolded)	m	2.3	2.3	2.46	2.46	2.60	2.60
Hight stowed-rails folded	m	1.71	1.71	1.84	1.84	1.98	1.98
Platfor Size(length Χ width)(EXF)	m	2.25x1.15	2.25x1.15	2.25x1.15	2.25x1.15	2.25x1.15	2.25x1.15
Guardrail hight(G)	m	1.1	1.1	1.1	1.1	1.1	1.1
H Extension size of platform	m	1	1	1	1	1	1
I Ground clearance(retracted state)	mm	95	95	95	95	95	95
J Ground clearance(lifting state)	mm	20	20	20	20	20	20
K Wheelbase	m	1.85	1.85	1.85	1.85	1.85	1.85
Performance
Max.number of workers(indoor/outdoor)		2 / 1	2 / 1	2 / 1	2 / 1	2 / -	2 / -
Rated capacity	kg	450	450	320	320	320	320
Rated capacity of extension platform	kg	120	120	120	120	120	120
Drive speed(retracted state)	km/h	0~3.2	0~3.2	0~3.2	0~3.2	0~3.2	0~3.2
Drive speed(lifting state)	km/h	0~0.8	0~0.8	0~0.8	0~0.8	0~0.8	0~0.8
Min.turning radius(inside)	m	0	0	0	0	0	0
Min.turning radius(outside)	m	2.2	2.2	2.2	2.2	2.2	2.2
Lifting/Falling time	s	32/35	32/35	52/48	52/48	52/52	52/52
Max.work slop(forward and backward/left andright)	°	3°/1.5°	3°/1.5°	3°/1.5°	3°/1.5°	3°/1.5°	3°/1.5°
Max.allowable wind speed (indoor/outdoor)	m/s	0/12.5	0/12.5	0/12.5	0/12.5	0/0	0/0
Max.allowable wind speed(indoor/outdoor)	N	400/200	400/200	400/200	400/200	400/0	400/0
Gradeability	%	30%	30%	25%	30%	25%	30%
Controls type		Proportional control		Proportional control		Proportional control
Drive		Dual fornt wheels	Dual fornt wheels	Dual fornt wheels	Dual fornt wheels	Dual fornt wheels	Dual fornt wheels
Brake		Dual front wheels	Dual fornt wheels	Dual front wheels	Dual fornt wheels	Dual front wheels	Dual fornt wheels
Tyres size	mm	381x129	381x129	381x129	381x129	381x129	381x129
Power
Lifting/driving motor power	kw	3.3	3.3/0.7x2	3.3	3.3/0.7x2	4.5	3.3/0.7x2
Battrey voltage/capacity	V/Ah	6x4/180	6x4/180	6x4/180	6x4/180	6x4/240	6x4/240
Charger input voltage	VAC	100-240	100-240	100-240	100-240	100-240	100-240
Charger output current	A	36	36	36	36	36	36
Controls voltage	VDC	24	24	24	24	24	24
Hydraulic tank capacity	L	22	22	22	22	22	22
Overall weight	kg	2460	2460	2820	2820	2950	2950
