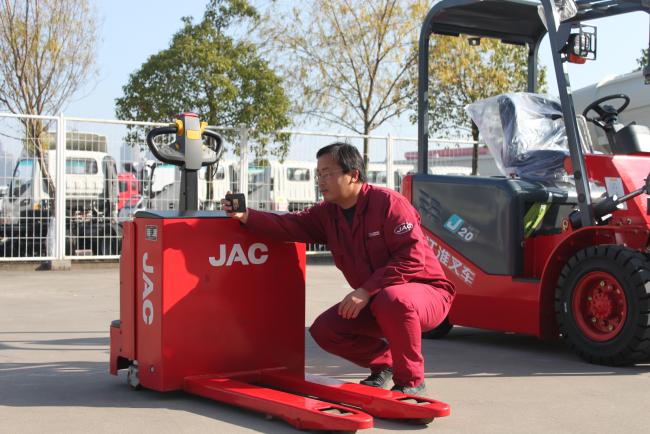

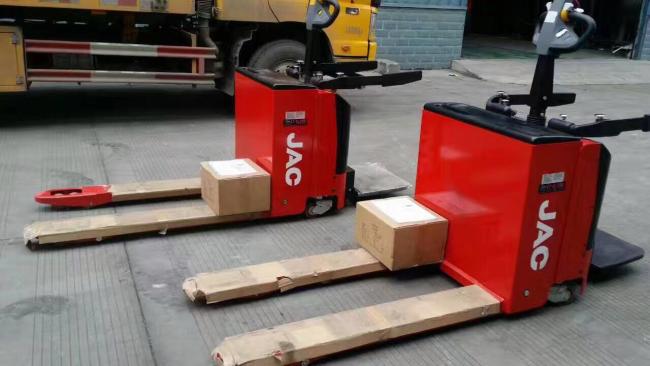

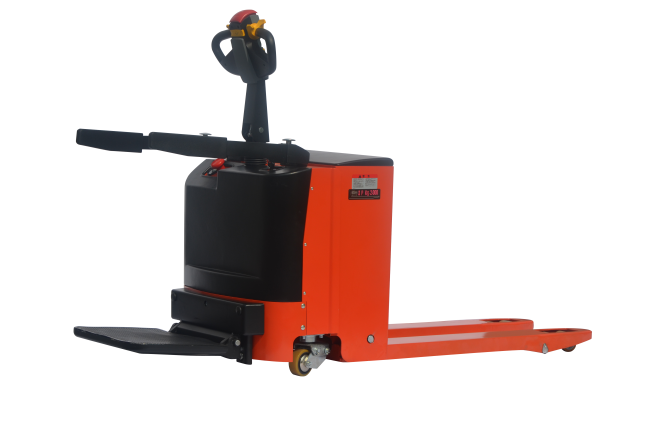

JAC 2T Electric Pallet Jack Stacker Mechanical Steering
Price:
Negotiable
MOQ:
1
Delivery Time:
8 work days
Brand:
JAC
Product Description
JAC 2T Electric Pallet Jack Stacker Mechanical Steering
| Model | Unit | CBD20 |
| Load capacity | kg | 2000 |
| Overall fork width | mm | 540/685 |
| Fork length | mm | 1150/1220 |
| Single fork width | mm | 160 |
| Lowered fork height | mm | 85 |
| Max. lifting height | mm | 200 |
| Overall length (Pedal down) | mm | 1860(2260) |
| Overall width | mm | 776 |
| Overall height | mm | 1300 |
| Front wheel size, number | φ80×70,4个 | |
| Driving wheel size, number | φ250×80,1个 | |
| Balance wheel size, number | φ100×40,2个 | |
| Turing radius | mm | 1738 |
| Load center distance | mm | 600 |
| Lift motor | v/kw | 24V/1.5kw |
| Drive motor | v/kw | 24V/1.5kw |
| Battery voltage | v/Ah | 2*12V/100AH |
| Working time of fully charged battery | h | 5 |
| Service weight (without battery) | kg | 500(320) |
