Warehouse Powered Pallet Stacker Counterbalance Electric Stacker 1000kg 1T
Price:
Negotiable
MOQ:
1
Delivery Time:
8 work days
Brand:
JAC
Product Description

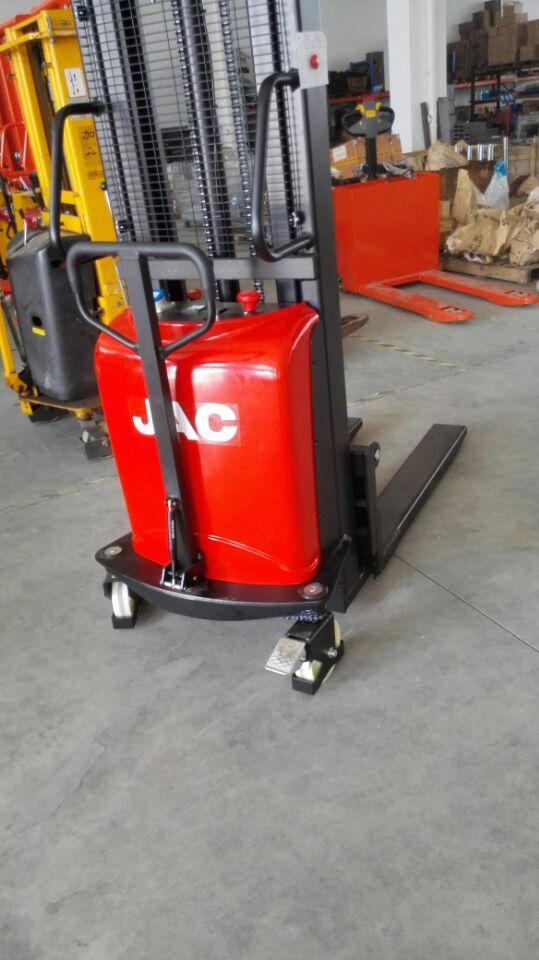

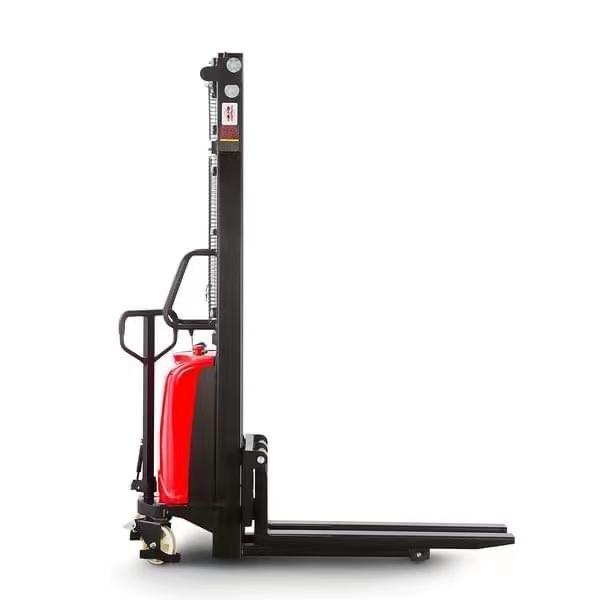

Warehouse Powered Pallet Stacker Counterbalance Electric Stacker 1000kg 1T
| Characteristics | 1.1 | Manufacturer | Unit | JAC | ||||
| 1.2 | Model | CDD10B | ||||||
| 1.3 | Operation | pedestrian | ||||||
| 1.4 | Load capacity | kg | 1000 | |||||
| 1.5 | Load center distance | mm | 450 | |||||
| Weights | 2.1 | Service Weight | Kg | 315 | 365 | 374 | 380 | 405 |
| Wheels | 3.1 | Wheels type | PU | |||||
| Dimensions | 4.1 | The max. lifting height | mm | 1600 | 2000 | 2500 | 3000 | 3500 |
| 4.2 | Load capacity on Max. height | kg | 1000 | 800 | 700 | 600 | 500 | |
| 4.3 | Extended mast height | mm | 2077 | 2567 | 3067 | 3567 | 4067 | |
| 4.4 | Lowered mast height | mm | 2077 | 1577 | 1827 | 2077 | 2327 | |
| 4.5 | Lowered fork height | mm | 85 | |||||
| 4.6 | Overall length(with Pedal) | mm | 1600(900 )/1800(1100 ) | |||||
| 4.7 | Overall width | mm | 760 | |||||
| 4.8 | Overall fork width | mm | 550/ 640 | |||||
| 4.9 | Fork length | mm | 900/1100 | |||||
| 4.1 | Single fork width | mm | 150 | |||||
| 4.11 | Aisle width for pallets 1000×1200 cross ways | mm | 2250 | |||||
| 4.12 | Aisle width for pallets 800×1200 length ways | mm | 2040 | |||||
| 4.13 | Turning radius | mm | 1350 | |||||
| Drive/Battery | 6.1 | Power motor | V/KW | DC,12V/1.5KW | ||||
| 6.2 | Battery voltage | V/Ah | 12V/120Ah | |||||
