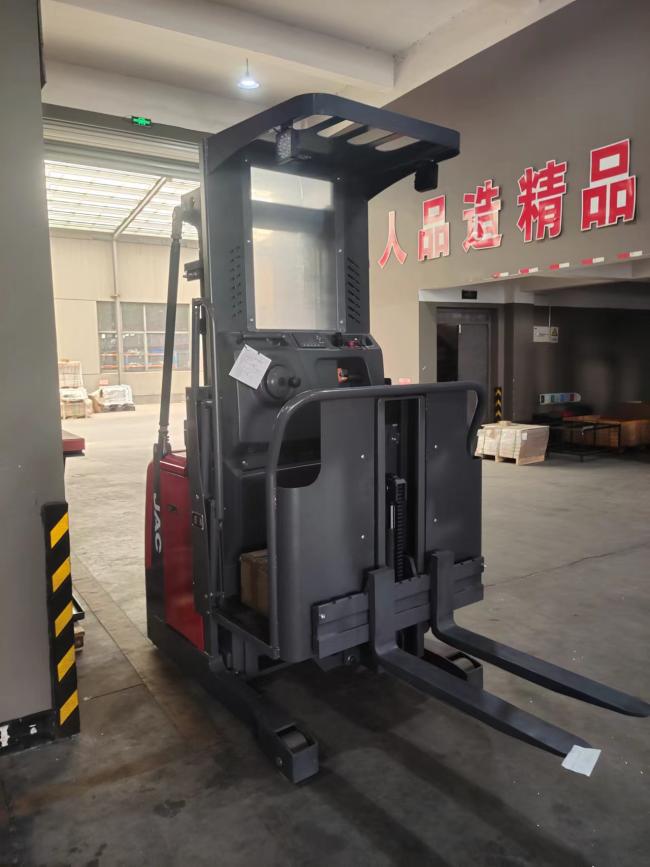

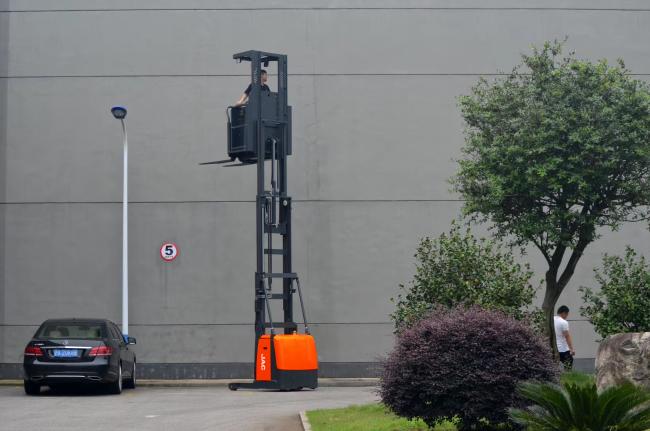

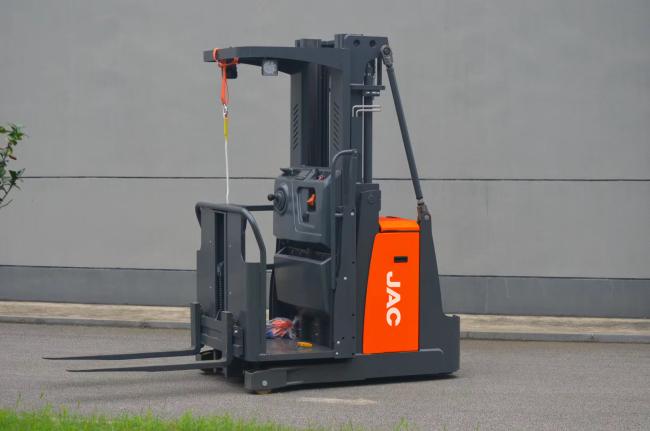

High Level Electric Warehouse Picker Truck Order Picker Pallet Jack 1000kg 4.5m
Price:
Negotiable
MOQ:
1
Delivery Time:
8 work days
Brand:
JAC
Product Description
| Characteristics | 1.1 | Model | JXG10 | |
| 1.2 | Power unit | Electric | ||
| 1.3 | Operation | Stand | ||
| 1.4 | Rated traction weight | Q (t) | 1.0 | |
| 1.5 | Load centre | c (mm) | 400 | |
| 1.6 | Axle centre to fork face | x (mm) | 192 | |
| 1.7 | Wheel base | y (mm) | 1358 | |
| Weights | 2.1 | Service weight with battery | kg | 2850 |
| Wheels/Tyres | 3.1 | Wheels type | Polyurethane | |
| 3.2 | Driving wheel size | Φ×w(mm) | Φ250×127 | |
| 3.3 | Bearing wheel size | Φ×w(mm) | Φ150×82 | |
| 3.4 | Additional wheels(dimensions) | Φ×w(mm) | ― | |
| 3.5 | Wheels, number front/rear (x = driven) | 1,/2 | ||
| 3.6 | Wheel base, bearing end | b11 (mm) | 960 | |
| Dimensions | 4.1 | Lowered mast height | h1 (mm) | 2365 |
| 4.2 | Lifting height | h3 (mm) | 4500 | |
| 4.3 | The max. lifting height | h4 (mm) | 6773 | |
| 4.4 | Height of overhead guard(cabin) | h6 (mm) | 2273 | |
| 4.5 | Height of seat/stand-on platform | h7 (mm) | 271 | |
| 4.6 | Additional lifting | h9 (mm) | 780 | |
| 4.7 | Total lift | h10 (mm) | 5300 | |
| 4.8 | Platform lift height | h12 (mm) | 4771 | |
| 4.9 | Lowered hength | h13 (mm) | 50 | |
| 4.10 | Picking height | h15 (mm) | 6071 | |
| 4.11 | Overall length | l1 (mm) | 2610 | |
| 4.12 | Length to fork face | l2 (mm) | 1760 | |
| 4.13 | Overall width | b1/ b2 (mm) | 1000/1150 | |
| 4.14 | Fork dimensions | s/e/l (mm) | 40/100/850 | |
| 4.15 | Width of fork fixing frame | b3 (mm) | 910 | |
| 4.16 | Width of forks | b5 (mm) | 872 | |
| 4.17 | Min.Ground clearance | m2 (mm) | 50 | |
| 4.18 | Aisle width with pallet 1000 x 1200 across forks | Ast (mm) | 3105 | |
| 4.19 | Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 3220 | |
| 4.20 | Min.Turning radius | Wa (mm) | 1570 | |
| Performance | 5.1 | Travel speed,laden/unladen | (km/h) | 6/5.8 |
| 5.2 | Lifting speed, with/without load(cab) | (mm/s) | 140/150 | |
| 5.3 | Lifting speed, with/without load(fork) | (mm/s) | 130/140 | |
| 5.4 | Lowering speed, with/without load(cab) | (mm/s) | 240/250 | |
| 5.5 | Lowering speed, with/without load(fork) | (mm/s) | 130/95 | |
| 5.6 | Maximum climbing ability, with/without load | (%) | 3/6 | |
| 5.7 | Service brake | Electromagnetism | ||
| Drive | 6.1 | Drive motor, 60 minute rating | (kW) | 3 |
| 6.2 | Lift motor rating at S3 15% | (kW) | 5.5 | |
| 6.3 | Battery voltage/rated capacity | (V/Ah) | 24/280 | |
| 6.4 | Battery weight(±5%) | (kg) | 270 | |
| Others | 7.1 | Type of drive control | AC | |
| 7.2 | Noise level at operator‘s ear | (dB(A)) | ≤75 |
