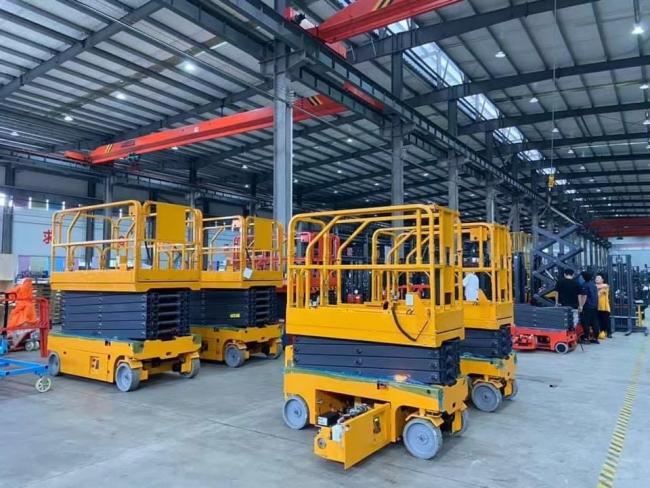

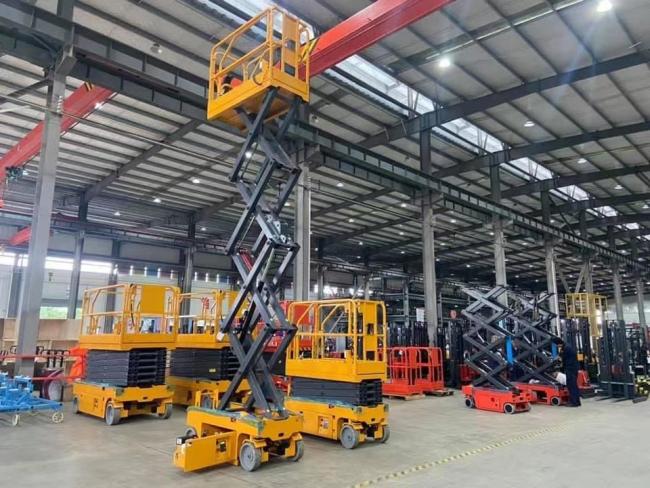

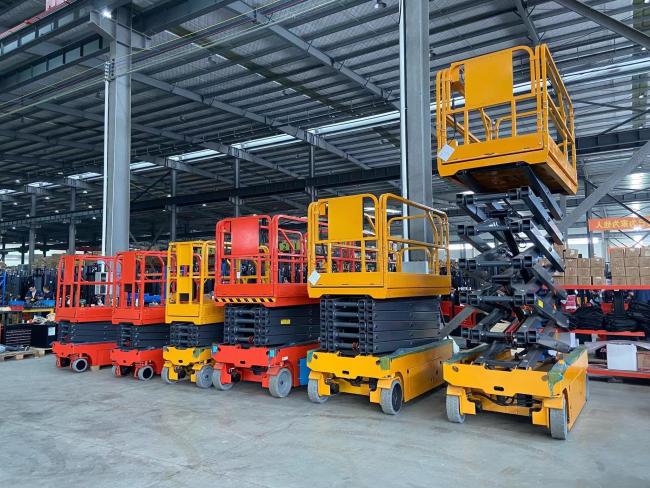

Electric Lifting Aerial Work Platform Scissor Lift For Warehouse 11.9m
Price:
Negotiable
MOQ:
1
Delivery Time:
8 work days
Brand:
JAC
Product Description
| Modle | JS1212 | JS1212E | |
| Dmension | |||
| Max.working height | m | 13.9 | 13.9 |
| Max.platform height | m | 11.9 | 11.9 |
| Overall length | m | 2.4 | 2.4 |
| Overall width | m | 1.15 | 1.15 |
| Overall height(guardrall unfolded) | m | 2.60 | 2.60 |
| Hight stowed-rails folded | m | 1.98 | 1.98 |
| Platfor Size(length Χ width)(EXF) | m | 2.25x1.15 | 2.25x1.15 |
| Guardrail hight(G) | m | 1.1 | 1.1 |
| H Extension size of platform | m | 1 | 1 |
| Ground clearance(retracted state) | mm | 95 | 95 |
| Ground clearance(lifting state) | mm | 20 | 20 |
| Wheelbase | m | 1.85 | 1.85 |
| Performance | |||
| Max.number of workers(indoor/outdoor) | 2 / - | 2 / - | |
| Rated capacity | kg | 320 | 320 |
| Rated capacity of extension platform | kg | 120 | 120 |
| Drive speed(retracted state) | km/h | 0~3.2 | 0~3.2 |
| Drive speed(lifting state) | km/h | 0~0.8 | 0~0.8 |
| Min.turning radius(inside) | m | 0 | 0 |
| Min.turning radius(outside) | m | 2.2 | 2.2 |
| Lifting/Falling time | s | 52/52 | 52/52 |
| Max.work slop(forward and backward/left andright) | ° | 3°/1.5° | 3°/1.5° |
| Max.allowable wind speed (indoor/outdoor) | m/s | 0/0 | 0/0 |
| Max.allowable wind speed(indoor/outdoor) | N | 400/0 | 400/0 |
| Gradeability | % | 25% | 30% |
| Controls type | Proportional control | ||
| Drive | Dual fornt wheels | Dual fornt wheels | |
| Brake | Dual front wheels | Dual fornt wheels | |
| Tyres size | mm | 381x129 | 381x129 |
| Power | |||
| Lifting/driving motor power | kw | 4.5 | 3.3/0.7x2 |
| Battrey voltage/capacity | V/Ah | 6x4/240 | 6x4/240 |
| Charger input voltage | VAC | 100-240 | 100-240 |
| Charger output current | A | 36 | 36 |
| Controls voltage | VDC | 24 | 24 |
| Hydraulic tank capacity | L | 22 | 22 |
| Overall weight | kg | 2950 | 2950 |
Features
1.Vehicle CE certification, American standard certification and Australian certification, higher safety factor, more reliable.
2.Parts universal, modular design, and two sides of the overall spiral out of the tray, repair and maintenance more convenient.
3.New electric proportional control system, with automatic fault diagnosis, fault code display and alarm system, more stable and stable.
4.The boom and key components are treated with high-strength steel and electrophoresis, which improves the anti-corrosion performance more than three times and breaks through 100,000 fatigue tests.
