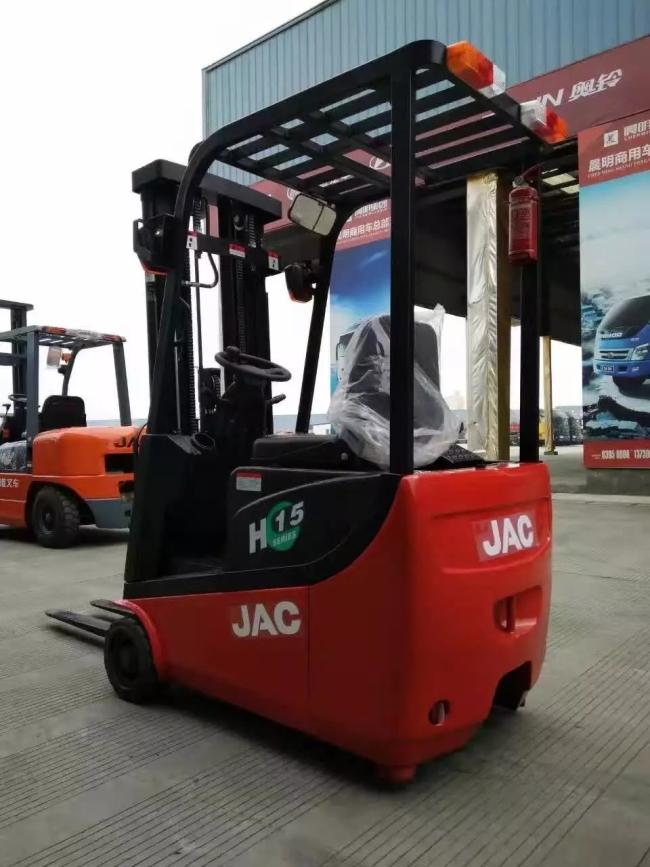

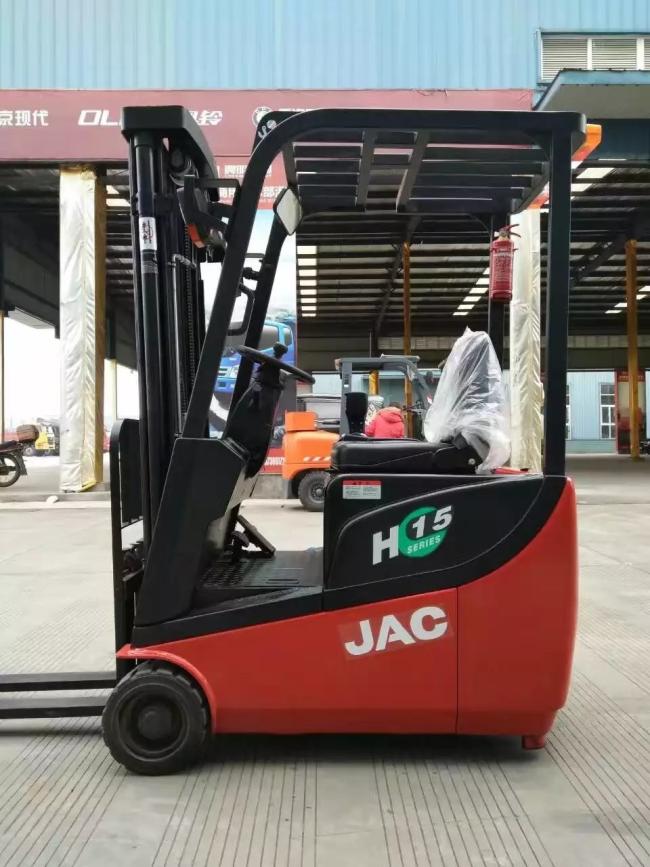

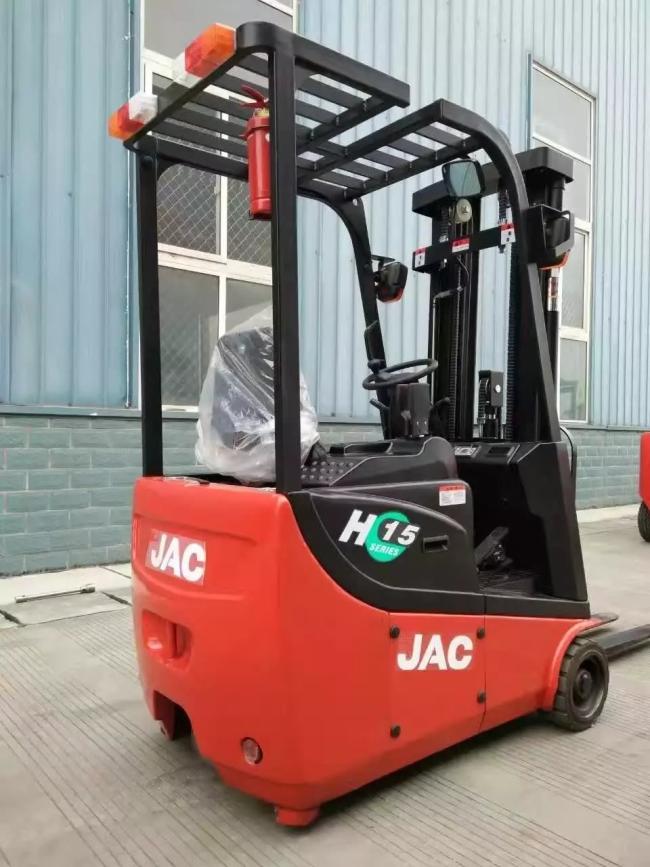

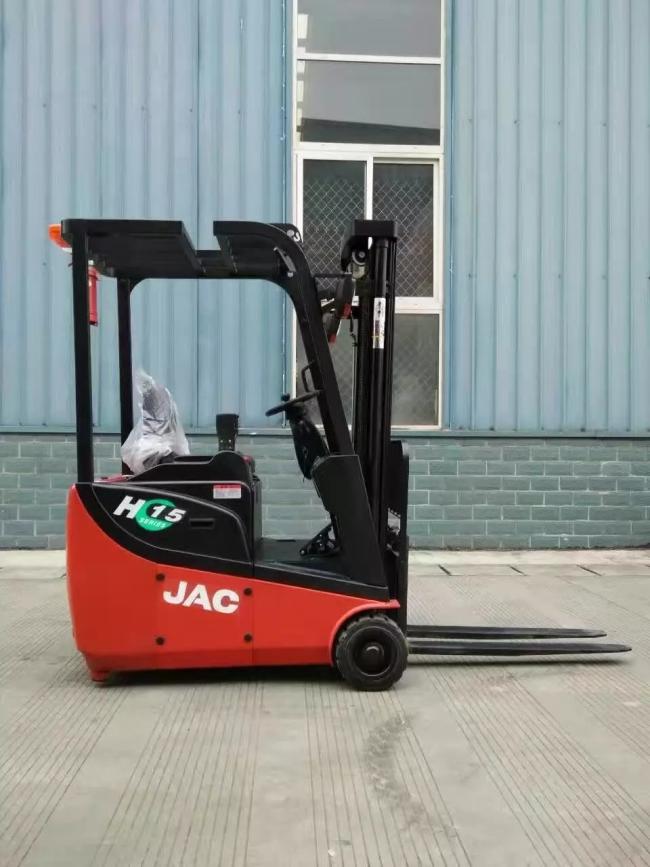

PU Tire Counter Balance Lift Truck Warehouse Electric Lift 1500kg
Price:
Negotiable
MOQ:
1
Delivery Time:
8 work days
Brand:
JAC
Product Description
| Model | Unit | CPD15S |
| Power | Battery | |
| Manner of operation | Seated | |
| Load capacity | kg | 1500 |
| The max. lifting height(mm) | kg | 1000 |
| Service Weight(kg) | kg | 2190 |
| Load center distance(mm) | mm | 500 |
| Distance between fork backrest and front wheel | mm | 170 |
| Wheel base | mm | 1090 |
| Tires | PU | |
| Front Wheel size,number | Φ305×127,2个 | |
| Driving Wheel size,number | Φ250×127,1个 | |
| The width between front wheels | mm | 783 |
| Lifting height | mm | 3000 |
| Free lifting height | mm | 135 |
| Lowered mast height | mm | 1995 |
| Extended mast height | mm | 3949 |
| Mast/Fork carriage tilt forward/backward | ° | 2/5 |
| Overhead load guard (cab) height | mm | 1980 |
| Seat height | mm | 960 |
| Overall length | mm | 2465 |
| Overall width | mm | 917 |
| Fork size, Thickness/Width/Length | mm | 35/100/950 |
| Fork adjust width | mm | 220-606 |
| Ground clearance under mast | mm | 90 |
| Ground clearance, center of wheelbase | mm | 90 |
| Aisle width for pallets 1000×1200 cross ways | mm | 2865 |
| Aisle width for pallets 800×1200 length ways | mm | 2975 |
| Turning radius | mm | 1348 |
| Max.gradient performance, laden/unladen | % | 6/10 |
| The max driving speed laden/unladen | km/h | 6.2/7.2 |
| Lift speed,laden/unladen | mm/s | 135/215 |
| Lowering speed,laden/unladen | mm/s | 238/225 |
| Driving Motor | V/kw | 24V/2.5kw |
| Lifting Motor | V/kw | 24V/4.5kw |
| Steering Motor | V/kw | 24V/0.2kw |
| Battery voltage | V/Ah | 24V/400Ah |
| Working time of fully charged batteries (h) | h | 5 |
| Battery dimensions | mm | 645/292/570 |
