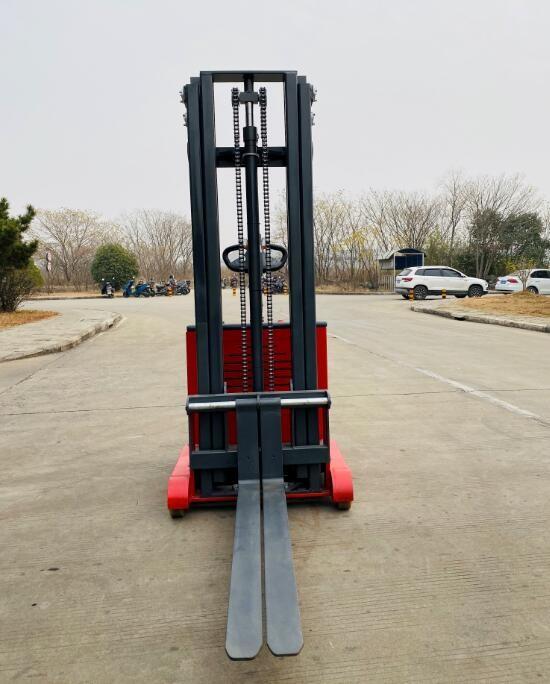

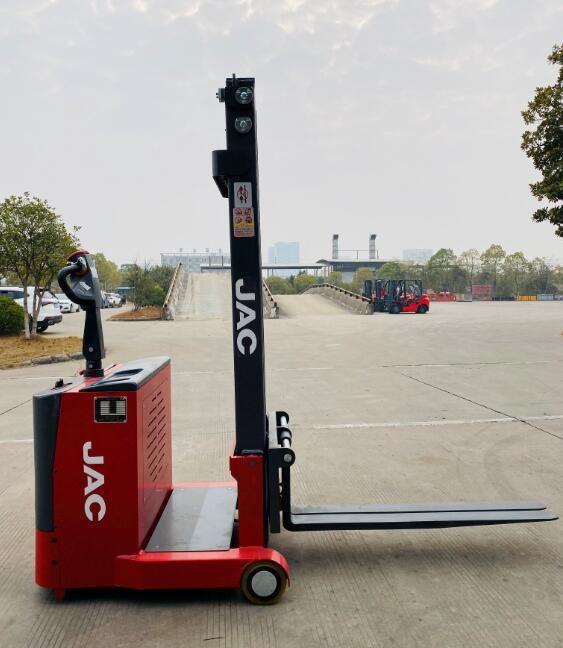

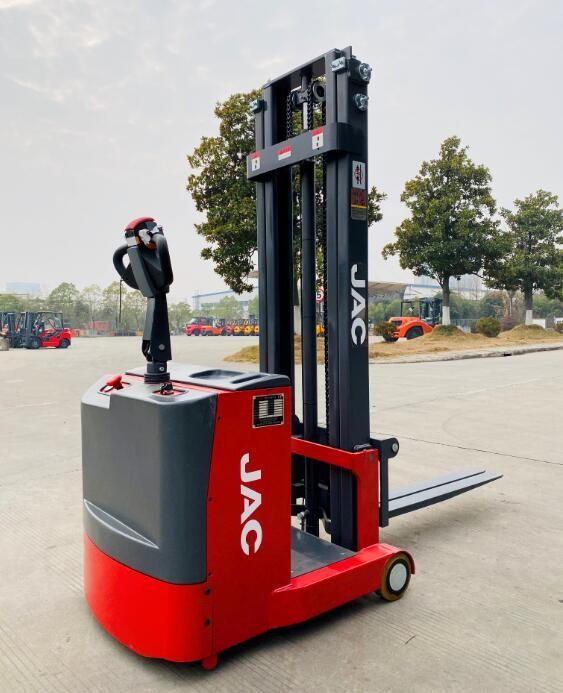

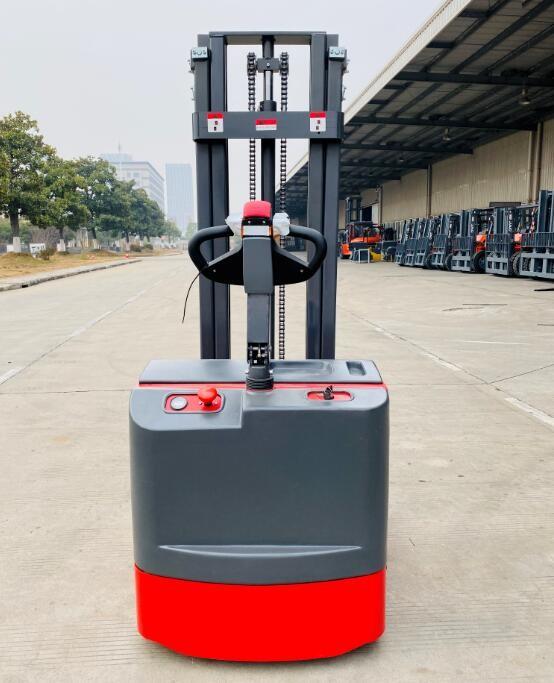

500kg electric counterbalanced stacker/Electric stacker/Floor work

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 8 work days

Brand: JAC

Product Description

Characteristics	Manufacturer		JAC
	Model		CDD05
	Power unit		electric
	Operation		pedestrian
	Rated traction weight	kg	500
	Load centre	mm	400
	Axle centre to fork face	mm	104
	Wheel base	mm	707
Weights	Service weight with battery	kg	990
Wheels/Tyres	Wheels type		polyurethane
	Driving wheel size	Φ×w(mm)	Φ210×170
	Bearing wheel size	Φ×w(mm)	Φ178×73
	Wheels, number front/rear (x = driven)		1,2
	Track width	mm	733
Dimensions	Height of mast, lowered	mm	2060
	Free lift	mm	0
	Lift	mm	3000
	Height of mast, extended	mm	3550
	Overall height(With handle	mm	1075/1502
	Fork Height,Lowered	mm	40
	Overall length	mm	1829
	Length to fork face	mm	1009
	Overall width	mm	878
	Fork dimensions	mm	35/100/820
	Width of forks	mm	210-550
	Distance Between Suporrts arms/loading surfaces	mm	596
	Min.Ground clearance	mm	75
	Aisle width with pallet 1000 x 1200 across forks	mm	2365
	Aisle width with pallet 800 x 1200 along forks	mm	2474
	Min.Turning radius	mm	905
Performance	Travel speed,laden/unladen	km/h	4.0/4.2
	Lifting speed, with/without load	mm/s	120/130
	Lowering speed, with/without load	mm/s	130/115
	Maximum climbing ability, with/without load	%	3/5
	Service brake		electromagnetic
Drive	Drive motor	kW	0.75
	Lift motor	kW	2.2
	Battery according to DIN 43531/35/36 A,B,C,no		no
	Battery voltage/rated capacity	V/Ah	2×12/100
	Battery weight (± 5%)	kg	2×27
Others	Type of drive control		DC
Others	Noise level at operator‘s ear	dB(A)	＜75
