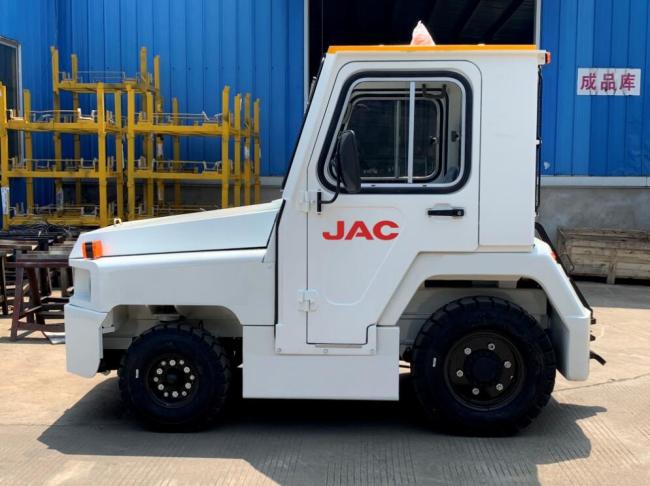

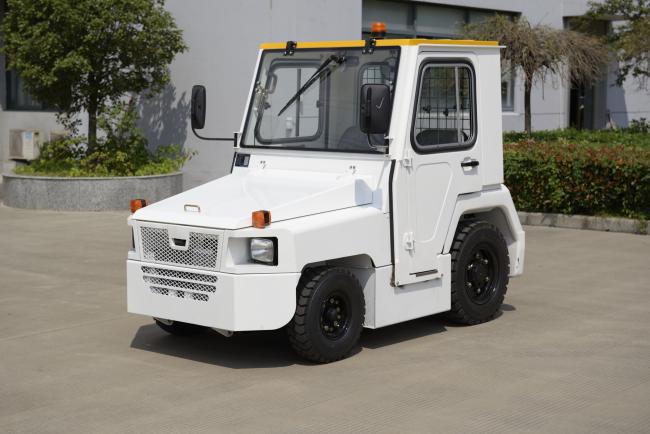

84dB Diesel Cab Industrial Tow Tractor For Aircraft QCD20/25
Diesel Cab Industrial Tow Tractor For Aircraft QCD20/25
Features
1. S4S four-cylinder in-line diesel engine originally imported from MITSUBISHI Corporation of Japan is selected.
2. Low vehicle noise, noise less than 84dB at the highest speed.
3. The braking system consists of front and rear four-wheel hydraulic service brake and mechanical parking brake acting on the driving wheel.
4. The whole vehicle is equipped with light systems such as near and far light headlights, front and rear turn signals, rear combined lights (steering, braking, tail lights) and rear operation lights, which fully meet the needs of traction operations at night and in areas with insufficient light.
| Model code | QCD20 | QCD25 | |||
| Max. drawbar pull | KN | 20 | 26 | ||
| Performance | Max. towed weight (at dry even concrete surface) | With one trailer | Kg | 26000 | 31500 |
| Traveling speed | Forward | Km/h | 28 | 28 | |
| Backward | Km/h | 22 | 22 | ||
| Max. grade ability | No load | % | 38 | 38 | |
| Dimensions | Overall length (with coupler) | mm | 3085 | 3066 | |
| Overall width | mm | 1440 | 1452 | ||
| Overall height | mm | 1420 | 1996 | ||
| Wheelbase | mm | 1600 | 1609 | ||
| Front overhang | mm | 640 | 624 | ||
| Rear overhang (with coupler) | mm | 845 | 833 | ||
| Front tread | mm | 1260 | 1263 | ||
| Rear tread | mm | 1190 | 1200 | ||
| Min.户turning radius | Outer | mm | 3500 | 2880 | |
| Floor height | mm | 425 | 425 | ||
| Center height coupler | mm | 305/450 | 305/450 | ||
| Min. ground clearance | mm | 130 | 151 | ||
| tires | Tire size | Front | 6.50-10-10 PR | 6.50-10-10 PR | |
| Rear | 7.00-15-12PR | 7.00-15-12PR | |||
| Weight | Truck weight (No load) | Kg | 3100/3400 | 3590 | |
| Weight distribution | Front axle | Kg | 1080/1040 | 1020 | |
| Rear axle | Kg | 2020/2360 | 2570 | ||
| Engine | Model | JX493ZG3 | Japan Mitsubishi S4S | ||
| Displacement | cm3 | 2771 | 3331 | ||
| Rated output | KW/rpm | 64/3000 | 47/2500 | ||
| Rated torque | NM/rpm | 243/1800 | 200/1600 | ||
