PHS Series Female Thread Rod Ends/Heim Joint /Rose Joint Bearings( PHS14-1 PHS16 PHS16-1 PHS18 PHS20 PHS22 PHS25 PHS28 ）
Product Description
A rod end bearing is a common type of mechanical joint used on the ends of control rods.The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.
Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.

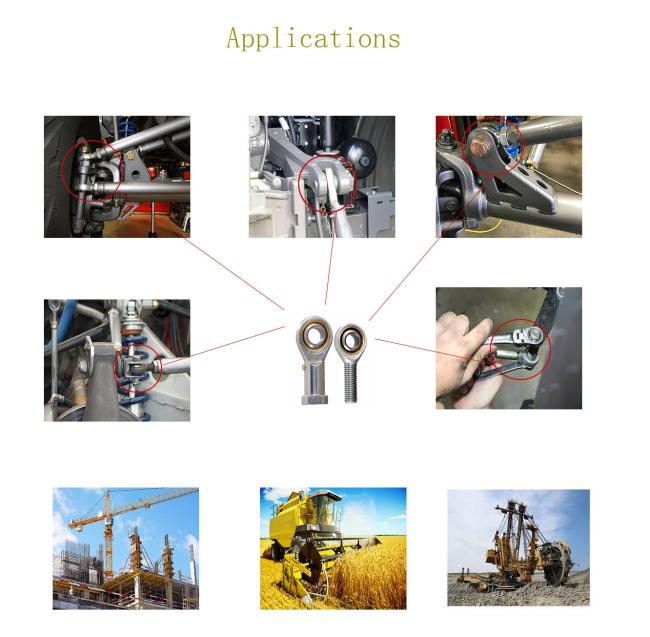

Applications:
- agriculture
- construction
- forklift trucks
- material handling
- metals
- mining
- railways
- trucks
- wind energy
![]()
![]()
- Our Bearing No. : PHS SKF :SIKAC 5 M INA:GAKR..-PB
-
Bearing No. Dimensions(mm) Load Ratings
(KN)Mass d d3
6HB C1 L3
minW d2 d1 h1 L4 L5 d4 d5 dk α
≈C C0 kg PHS4 4 M4x0.7 7 5.25 8 8 14 6.50 24 31 4 8.0 9.5 9.525 13 3.00 5.0 0.009 PHS5 5 M5x0.8 8 6.00 10 9 16 7.70 27 35 4 8.5 11 11.110 13 3.25 5.7 0.016 PHS6 6 M6x1.0 9 6.75 12 11 18 8.96 30 39 5 10.0 13 12.700 13 4.30 7.2 0.022 PHS8 8 M8x1.25 12 9.00 16 14 22 10.40 36 47 5 12.5 16 15.880 14 7.20 11.6 0.047 PHS10 10 M10x1.5 14 10.50 20 17 26 12.90 43 56 6.5 15.0 19 19.050 13 10.00 14.5 0.077 PHS10-1 10 M10x1.25 14 10.50 20 17 26 12.90 43 56 6.5 15.0 19 19.050 13 10.00 14.5 0.077 PHS12 12 M12x1.75 16 12.00 22 19 30 15.40 50 65 6.5 17.5 22 22.230 13 13.40 17.0 0.100 PHS12-1 12 M12x1.25 16 12.00 22 19 30 15.40 50 65 6.5 17.5 22 22.230 13 13.40 17.0 0.100 PHS14 14 M14x2.0 19 13.50 25 22 34 16.90 57 74 8 20.0 25 25.400 16 17.00 24.0 0.160 PHS14-1 14 M14x1.5 19 13.50 25 22 34 16.90 57 74 8 20.0 25 25.400 16 17.00 24.0 0.160 PHS16 16 M16x2.0 21 15.00 28 22 40 19.40 64 84 8 22.0 27 28.580 15 21.60 28.5 0.220 PHS16-1 16 M16x1.5 21 15.00 28 22 40 19.40 64 84 8 22.0 27 28.580 15 21.60 28.5 0.220 PHS18 18 M18x1.5 23 16.50 32 27 44 21.90 71 93 10 25.0 31 31.750 15 26.00 42.5 0.320 PHS20 20 M20x1.5 25 18.00 33 30 50 24.40 77 102 10 27.5 34 34.930 14 31.50 42.5 0.420 PHS22 22 M22x1.5 28 20.00 37 32 54 25.80 84 111 12 30.0 38 38.100 15 38.00 57.0 0.540 PHS25 25 M24x2.0 31 22.00 42 36 60 29.60 94 124 12 33.5 42 42.850 15 47.50 68.0 0.730 PHS28 28 M27x2.0 35 24.00 48 41 66 32.30 103 136 14 37.0 46 47.600 15 58.00 75.0 0.980 PHS30 30 M30x2.0 37 25.00 51 41 70 34.80 110 145 15 40.0 50 50.800 17 64.00 88.0 1.100 PHS30-1 30 M27x2.0 37 25.00 51 41 70 34.80 110 145 15 40.0 50 50.800 17 64.00 88.0 1.100 Packaging & Shipping
-
![]()
Our Advantages
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
