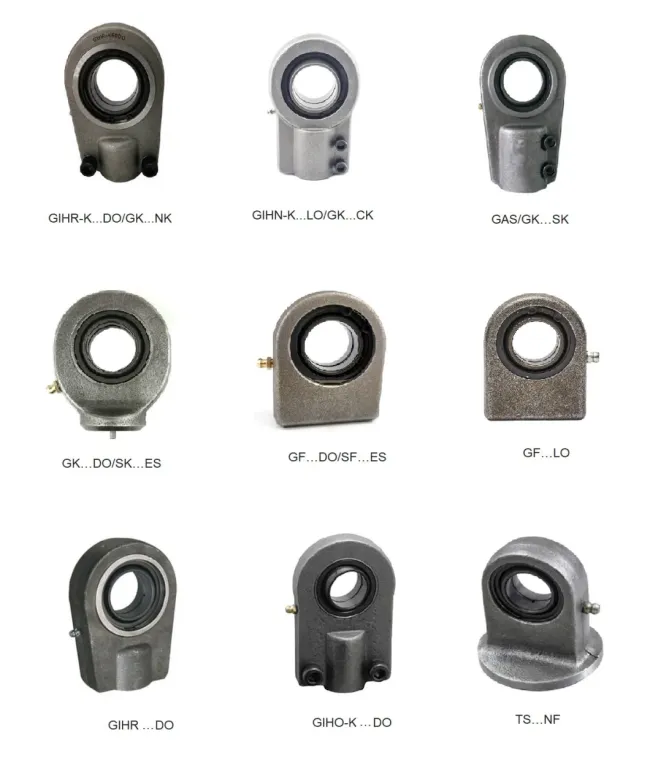

GK..DO Series Hydraulic Rod Ends/ Oscillating Bearings(GK10DO GK12DO GK15DO GK17DO GK20DO GK25DO GK30DO GK35DO GK40DO )
A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.
Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.
Applications:
- agriculture
- construction
- forklift trucks
- material handling
- metals
- mining
- railways
- trucks
- wind energy

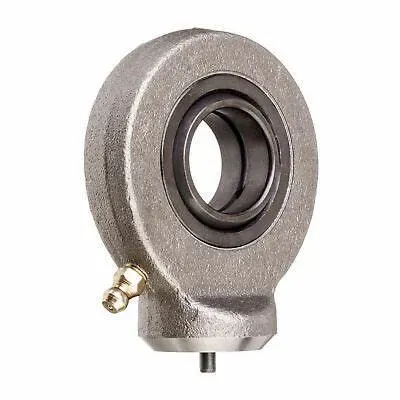

Technical specification

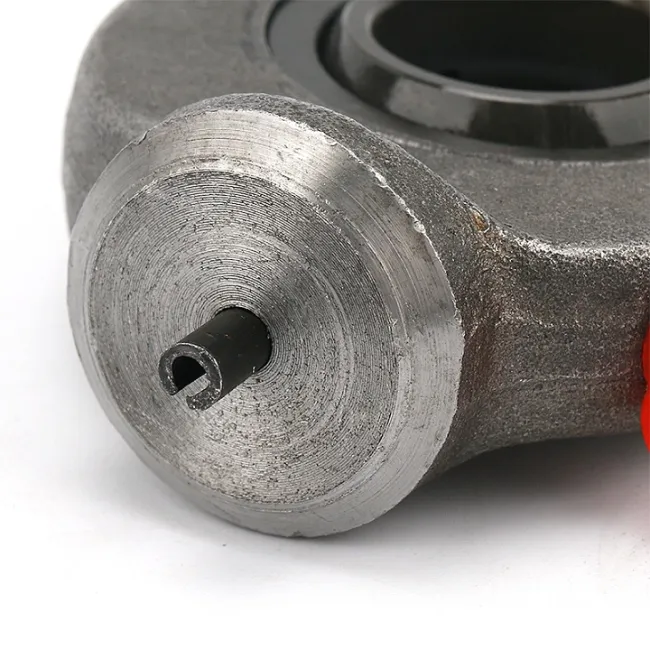

-Rod end housing with weldable base and dowel pin.
-It is made up of a radial spherical plain bearing GE... ES or GE... ES 2RS and rod end housing.
-Rod end housing with a lubricating hole or grease nipple.

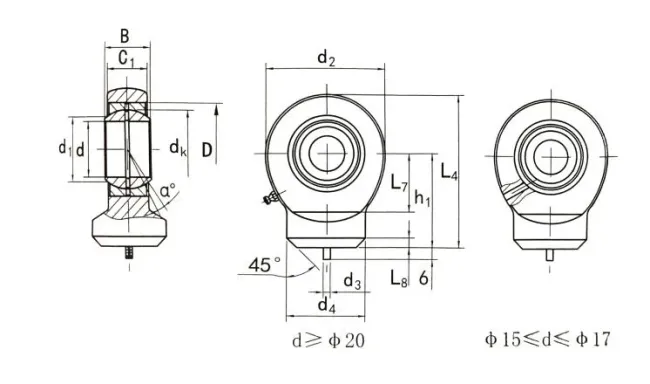

| Bearing No. | Dimensions (mm) | Load ratings (KN) | Mass | ||||||||||||||
| d | d3 | d4 | B | C1 | d2 | L7 min |
L8 | h1 | L4 | dk | d1 | D | a | C | C0 | kg | |
| GK 10 DO* | 10 | 3 | 15.0 | 9 | 7 | 29 | 15.0 | 1.5 | 24 | 38.5 | 16.0 | 13.2 | 19 | 12 | 8.2 | 15.6 | 0.04 |
| GK 12 DO* | 12 | 3 | 17.5 | 10 | 8 | 34 | 18.0 | 1.5 | 27 | 44.0 | 18.0 | 15.0 | 22 | 11 | 10.8 | 21.6 | 0.07 |
| GK 15 DO | 15 | 4 | 21.0 | 12 | 10 | 40 | 20.0 | 2.0 | 31 | 51.0 | 22.0 | 18.4 | 26 | 8 | 17.0 | 32.0 | 0.12 |
| GK 17 DO | 17 | 4 | 24.0 | 14 | 11 | 46 | 23.0 | 2.0 | 35 | 58.0 | 25.0 | 20.7 | 30 | 10 | 21.2 | 40.0 | 0.19 |
| GK 20 DO | 20 | 4 | 27.5 | 16 | 13 | 53 | 27.5 | 2.0 | 38 | 64.5 | 29.0 | 24.2 | 35 | 9 | 30.0 | 54.0 | 0.23 |
| GK 25 DO | 25 | 4 | 33.5 | 20 | 17 | 64 | 33.0 | 3.0 | 45 | 77.0 | 35.5 | 29.3 | 42 | 7 | 48.0 | 72.0 | 0.43 |
| GK 30 DO | 30 | 4 | 40.0 | 22 | 19 | 73 | 37.5 | 3.0 | 51 | 87.5 | 40.7 | 34.2 | 47 | 6 | 62.0 | 95.0 | 0.64 |
| GK 35 DO | 35 | 4 | 47.0 | 25 | 21 | 82 | 43.0 | 3.0 | 61 | 102.0 | 47.0 | 39.8 | 55 | 6 | 80.0 | 125.0 | 0.96 |
| GK 40 DO | 40 | 4 | 52.0 | 28 | 23 | 92 | 48.0 | 4.0 | 69 | 115.0 | 53.0 | 45.0 | 62 | 7 | 100.0 | 156.0 | 1.30 |
| GK 45 DO | 45 | 6 | 58.0 | 32 | 27 | 102 | 52.0 | 4.0 | 77 | 128.0 | 60.0 | 50.8 | 68 | 7 | 127.0 | 208.0 | 1.80 |
| GK 50 DO | 50 | 6 | 62.0 | 35 | 30 | 112 | 59.0 | 4.0 | 88 | 144.0 | 66.0 | 55.9 | 75 | 6 | 156.0 | 250.0 | 2.50 |
| GK 60 DO | 60 | 6 | 70.0 | 44 | 38 | 135 | 72.5 | 4.0 | 100 | 167.5 | 80.0 | 66.8 | 90 | 6 | 245.0 | 390.0 | 3.90 |
| GK 70 DO | 70 | 6 | 80.0 | 49 | 42 | 160 | 86.0 | 5.0 | 115 | 195.0 | 92.0 | 77.9 | 105 | 6 | 315.0 | 510.0 | 6.60 |
| GK 80 DO | 80 | 6 | 95.0 | 55 | 47 | 180 | 98.0 | 5.0 | 141 | 231.0 | 105.0 | 89.4 | 120 | 6 | 400.0 | 620.0 | 8.70 |
