GE…FW 2RS Series Self-Lubricating Radial Spherical Plain Bearings(GE15FW 2RS GE17FW 2RS GE20FW 2RS GE25FW 2RS )

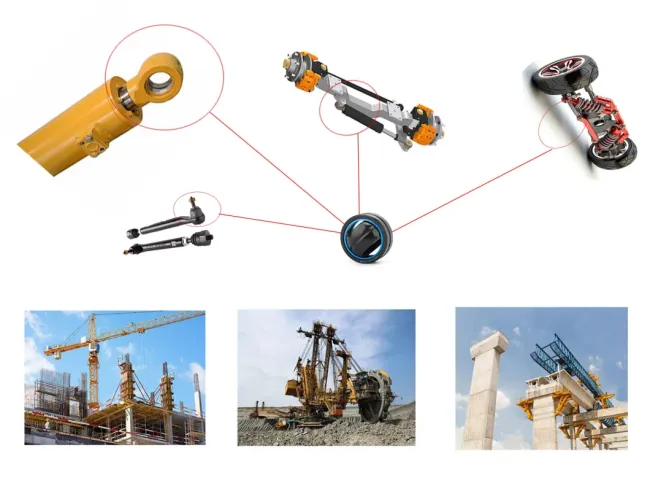

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.
We can supply high quality and almost all types of spherical plain bearing,

Product Parameters

Technical specification

Here is the comparison between each standard organization:

ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.



ANSI Standard*	DIN 620*	ISO 492*
ABEC 1	P0	Class Normal
ABEC 3	P6	Class 6
ABEC 5	P5	Class 5
ABEC 7	P4	Class 4
ABEC 9	P2	Class 2

Specifications:
1) Sliding contact surfaces: Steel vs. PTFE fabric.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), outer race surfaces are phosphorized, inner race surfaces are plated with chrome.
4) Features of structure: Without oil groove and oil holes, with an axial split in outer race. With dual seals. Sticked with a PTFE fabric on inner surface of outer race.
5) Properties: Self-lubricated, good wearability, corrosion resistance, self-alignment, dust proof.

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.

Please contact us immediately if you have any questions.
