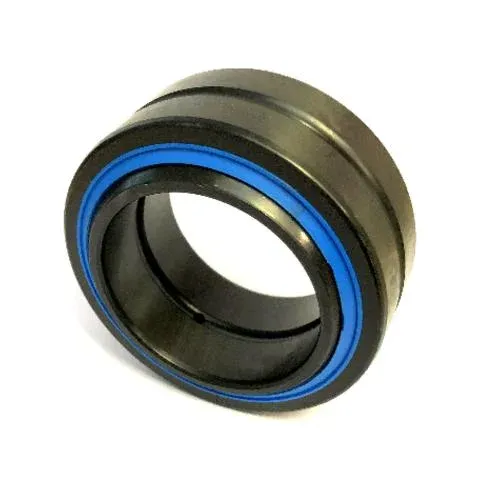

Radial Spherical Plain Bearing (GE4E GE5E GE6E GE8E GE10E GE12E)
Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.
We can supply high quality and almost all types of spherical plain bearing,
- Radial Spherical Plain Bearings
- Angular Contact Spherical Plain Bearings
- Thrust Spherical Plain Bearings
- Non-standard Spherical Plain Bearings
Applications:
Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
Technical specification
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
| ANSI Standard* | DIN 620* | ISO 492* |
| ABEC 1 | P0 | Class Normal |
| ABEC 3 | P6 | Class 6 |
| ABEC 5 | P5 | Class 5 |
| ABEC 7 | P4 | Class 4 |
| ABEC 9 | P2 | Class 2 |
| Bearing No. | Dimensions (mm) | Load Ratings (KN) | Mass | ||||||||
| d | D | B | C | dk | r1 min |
r2 min |
α | C | C0 | kg | |
| GE4E | 4 | 12 | 5 | 3 | 8 | 0.3 | 0.3 | 16 | 2.0 | 10 | 0.003 |
| GE5E | 5 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.4 | 17 | 0.005 |
| GE6E | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.4 | 17 | 0.004 |
| GE8E | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 15 | 5.5 | 27 | 0.008 |
| GE10E | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 12 | 8.1 | 40 | 0.011 |
| GE12E | 12 | 22 | 10 | 7 | 18 | 0.3 | 0.3 | 10 | 10.0 | 53 | 0.015 |
| Bearing No. | Dimensions (mm) | Load ratings (KN) | Mass | ||||||||
| d | D | B | C | dk | r1 min |
r2 min |
α | C | C0 | kg | |
| GE15ES | 15 | 26 | 12 | 9 | 22.0 | 0.3 | 0.3 | 8 | 16 | 84 | 0.027 |
| GE17ES | 17 | 30 | 14 | 10 | 25.0 | 0.3 | 0.3 | 10 | 21 | 106 | 0.041 |
| GE20ES | 20 | 35 | 16 | 12 | 29.0 | 0.3 | 0.3 | 9 | 30 | 146 | 0.066 |
| GE25ES | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.119 |
| GE30ES | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.153 |
| GE35ES | 35 | 55 | 25 | 20 | 47.0 | 0.6 | 1.0 | 6 | 79 | 399 | 0.233 |
| GE40ES | 40 | 62 | 28 | 22 | 53.0 | 0.6 | 1.0 | 7 | 99 | 495 | 0.306 |
| GE45ES | 45 | 68 | 32 | 25 | 60.0 | 0.6 | 1.0 | 7 | 127 | 637 | 0.427 |
| GE50ES | 50 | 75 | 35 | 28 | 66.0 | 0.6 | 1.0 | 6 | 156 | 780 | 0.546 |
| GE60ES | 60 | 90 | 44 | 36 | 80.0 | 1.0 | 1.0 | 6 | 245 | 1220 | 1.040 |
| GE70ES | 70 | 105 | 49 | 40 | 92.0 | 1.0 | 1.0 | 6 | 313 | 1560 | 1.550 |
| GE80ES | 80 | 120 | 55 | 45 | 105.0 | 1.0 | 1.0 | 6 | 400 | 2000 | 2.310 |
| GE90ES | 90 | 130 | 60 | 50 | 115.0 | 1.0 | 1.0 | 5 | 488 | 2440 | 2.750 |
| GE100ES | 100 | 150 | 70 | 55 | 130.0 | 1.0 | 1.0 | 7 | 607 | 3030 | 4.450 |
| GE110ES | 110 | 160 | 70 | 55 | 140.0 | 1.0 | 1.0 | 6 | 654 | 3270 | 4.820 |
| GE120ES | 120 | 180 | 85 | 70 | 160.0 | 1.0 | 1.0 | 6 | 950 | 4750 | 8.050 |
| GE140ES | 140 | 210 | 90 | 70 | 180.0 | 1.0 | 1.0 | 7 | 1070 | 5350 | 11.020 |
| GE160ES | 160 | 230 | 105 | 80 | 200.0 | 1.0 | 1.0 | 8 | 1360 | 6800 | 14.010 |
| GE180ES | 180 | 260 | 105 | 80 | 225.0 | 1.1 | 1.1 | 6 | 1530 | 7650 | 18.650 |
| GE200ES | 200 | 290 | 130 | 100 | 250.0 | 1.1 | 1.1 | 7 | 2120 | 10600 | 28.030 |
| GE220ES | 220 | 320 | 135 | 100 | 275.0 | 1.1 | 1.1 | 8 | 2320 | 11600 | 35.510 |
| GE240ES | 240 | 340 | 140 | 100 | 300.0 | 1.1 | 1.1 | 8 | 2550 | 12700 | 39.910 |
| Bearing No. | Dimensions (mm) | Load ratings (KN) | Mass | ||||||||
| d | D | B | C | dk | r1 min |
r2 min |
α | C | C0 | kg | |
| GE 15 ES 2RS | 15 | 26 | 12 | 9 | 22.0 | 0.3 | 0.3 | 8 | 16 | 84 | 0.027 |
| GE 17 ES 2RS | 17 | 30 | 14 | 10 | 25.0 | 0.3 | 0.3 | 10 | 21 | 106 | 0.041 |
| GE 20 ES 2RS | 20 | 35 | 16 | 12 | 29.0 | 0.3 | 0.3 | 9 | 30 | 146 | 0.066 |
| GE 25 ES 2RS | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.119 |
| GE 30 ES 2RS | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.153 |
| GE 35 ES 2RS | 35 | 55 | 25 | 20 | 47.0 | 0.6 | 1.0 | 6 | 79 | 399 | 0.233 |
| GE 40 ES 2RS | 40 | 62 | 28 | 22 | 53.0 | 0.6 | 1.0 | 7 | 99 | 495 | 0.306 |
| GE 45 ES 2RS | 45 | 68 | 32 | 25 | 60.0 | 0.6 | 1.0 | 7 | 127 | 637 | 0.427 |
| GE 50 ES 2RS | 50 | 75 | 35 | 28 | 66.0 | 0.6 | 1.0 | 6 | 156 | 780 | 0.546 |
| GE 60 ES 2RS | 60 | 90 | 44 | 36 | 80.0 | 1.0 | 1.0 | 6 | 245 | 1220 | 1.040 |
| GE 70 ES 2RS | 70 | 105 | 49 | 40 | 92.0 | 1.0 | 1.0 | 6 | 313 | 1560 | 1.550 |
| GE 80 ES 2RS | 80 | 120 | 55 | 45 | 105.0 | 1.0 | 1.0 | 6 | 400 | 2000 | 2.310 |
| GE 90 ES 2RS | 90 | 130 | 60 | 50 | 115.0 | 1.0 | 1.0 | 5 | 488 | 2440 | 2.750 |
| GE 100 ES 2RS | 100 | 150 | 70 | 55 | 130.0 | 1.0 | 1.0 | 7 | 607 | 3030 | 4.450 |
| GE 110 ES 2RS | 110 | 160 | 70 | 55 | 140.0 | 1.0 | 1.0 | 6 | 654 | 3270 | 4.820 |
| GE 120 ES 2RS | 120 | 180 | 85 | 70 | 160.0 | 1.0 | 1.0 | 6 | 950 | 4750 | 8.050 |
| GE 140 ES 2RS | 140 | 210 | 90 | 70 | 180.0 | 1.0 | 1.0 | 7 | 1070 | 5350 | 11.020 |
| GE 160 ES 2RS | 160 | 230 | 105 | 80 | 200.0 | 1.0 | 1.0 | 8 | 1360 | 6800 | 14.010 |
| GE 180 ES 2RS | 180 | 260 | 105 | 80 | 225.0 | 1.1 | 1.1 | 6 | 1530 | 7650 | 18.650 |
| GE 200 ES 2RS | 200 | 290 | 130 | 100 | 250.0 | 1.1 | 1.1 | 7 | 2120 | 10600 | 28.030 |
| GE 220 ES 2RS | 220 | 320 | 135 | 100 | 275.0 | 1.1 | 1.1 | 8 | 2320 | 11600 | 35.510 |
| GE 240 ES 2RS | 240 | 340 | 140 | 100 | 300.0 | 1.1 | 1.1 | 8 | 2550 | 12700 | 39.910 |
