CCYR-2-S CCYR-2 1/4-S Yoke Type Track Roller Bearings
Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.
Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.
Applications Of Track Roller Bearings
- Metals
- Mining, mineral processing and cement
- Railways
- Material handling
- Agriculture
- Construction
Versions Of Track Roller Bearings
Support Rollers Without Flange Rings, Without An Inner Ring
- RSTO Series
- RNA Series
Support Rollers Without Flange Rings, With An Inner Ring
- STO Series
- NA Series
Support Rollers With Flange Rings, With An Inner Ring
- NATR Series
- NATV Series
- PWTR Series
- NUTR Series
- NAST Series
- CYR Series
Cam Followers
- KR,KRE,KRV,KRVE Series
- NUKR,NUKRE Series
- PWKR,PWKRE Series
- CF,CFE,CFH Series
Technical specification
CYR series yoke-type cam follower bearing with lip seals supports high static and dynamic loads in cam type applications. This precision cam roller has a thick-walled outer ring that helps minimize deformation under heavy radial and shock loads.

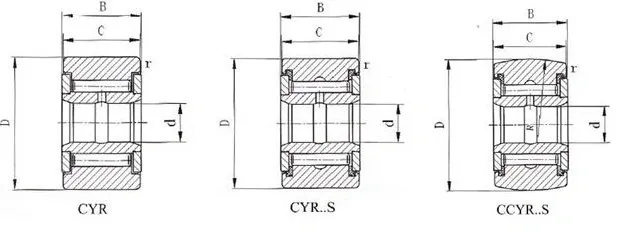

| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) |
Limited Speed |
Mass | |||||||
| Shield Type | Sealed Type | With Crowned | d | D | C | B | r min | C | Co | rpm | kg |
| CYR-3/4 | CYR-3/4-S | CCYR-3/4-S | 6.35 | 19.05 | 12.70 | 14.29 | 0.8 | 7.1 | 10.0 | 3120 | 0.028 |
| CYR-7/8 | CYR-7/8-S | CCYR-7/8-S | 6.35 | 22.23 | 12.70 | 14.29 | 0.8 | 7.1 | 10.0 | 3120 | 0.037 |
| CYR-1 | CYR-1-S | CCYR-1-S | 7.93 | 25.40 | 15.88 | 17.46 | 1.2 | 10.6 | 18.5 | 2400 | 0.069 |
| CYR-1 1/8 | CYR-1 1/8-S | CCYR-1 1/8-S | 7.93 | 28.58 | 15.88 | 17.46 | 1.6 | 10.6 | 18.5 | 2400 | 0.079 |
| CYR-1 1/4 | CYR-1 1/4-S | CCYR-1 1/4-S | 9.53 | 31.75 | 19.05 | 20.64 | 1.6 | 19.2 | 25.8 | 2080 | 0.111 |
| CYR-1 3/8 | CYR-1 3/8-S | CCYR-1 3/8-S | 9.53 | 34.93 | 19.05 | 20.64 | 1.6 | 19.2 | 25.8 | 2080 | 0.139 |
| CYR-1 1/2 | CYR-1 1/2-S | CCYR-1 1/2-S | 11.11 | 38.10 | 22.22 | 23.81 | 1.6 | 23.0 | 32.7 | 1680 | 0.190 |
| CYR-1 5/8 | CYR-1 5/8-S | CCYR-1 5/8-S | 11.11 | 41.28 | 22.22 | 23.81 | 1.6 | 23.0 | 32.7 | 1680 | 0.232 |
| CYR-1 3/4 | CYR-1 3/4-S | CCYR-1 3/4-S | 12.70 | 44.45 | 25.40 | 26.99 | 1.6 | 28.7 | 45.4 | 1360 | 0.296 |
| CYR-1 7/8 | CYR-1 7/8-S | CCYR-1 7/8-S | 12.70 | 47.63 | 25.40 | 26.99 | 1.6 | 28.7 | 45.4 | 1360 | 0.370 |
| CYR-2 | CYR-2-S | CCYR-2-S | 15.88 | 50.80 | 31.75 | 33.34 | 1.6 | 37.3 | 65.8 | 1200 | 0.486 |
| CYR-2 1/4 | CYR-2 1/4-S | CCYR-2 1/4-S | 15.88 | 57.15 | 31.75 | 33.34 | 1.6 | 37.3 | 65.8 | 1200 | 0.611 |
| CYR-2 1/2 | CYR-2 1/2-S | CCYR-2 1/2-S | 19.05 | 63.50 | 38.10 | 39.69 | 2.4 | 50.8 | 95.2 | 1040 | 0.832 |
| CYR-2 3/4 | CYR-2 3/4-S | CCYR-2 3/4-S | 19.05 | 69.85 | 38.10 | 39.69 | 2.4 | 50.8 | 95.2 | 1040 | 1.040 |
| CYR-3 | CYR-3-S | CCYR-3-S | 25.40 | 76.20 | 44.45 | 46.04 | 67.6 | 144.0 | 880 | 1.370 | |
| CYR-3 1/4 | CYR-3 1/4-S | CCYR-3 1/4-S | 25.40 | 82.55 | 44.45 | 46.04 | 67.6 | 144.0 | 880 | 1.640 | |
| CYR-3 1/2 | CYR-3 1/2-S | CCYR-3 1/2-S | 28.58 | 88.90 | 50.80 | 52.39 | 98.0 | 183.0 | 790 | 2.140 | |
| CYR-4 | CYR-4-S | CCYR-4-S | 31.75 | 101.60 | 57.15 | 58.74 | 130.0 | 260.0 | 740 | 3.160 | |
| CYR-5-S | CCYR-5-S | 44.45 | 127.00 | 69.85 | 73.02 | 200.0 | 395.0 | 560 | 5.743 | ||
| CYR-6-S | CCYR-6-S | 57.15 | 152.40 | 82.55 | 85.72 | 258.0 | 466.0 | 540 | 9.498 | ||
| CYR-7-S | CCYR-7-S | 69.85 | 177.80 | 95.25 | 98.42 | 324.0 | 620.0 | 500 | 14.723 | ||
