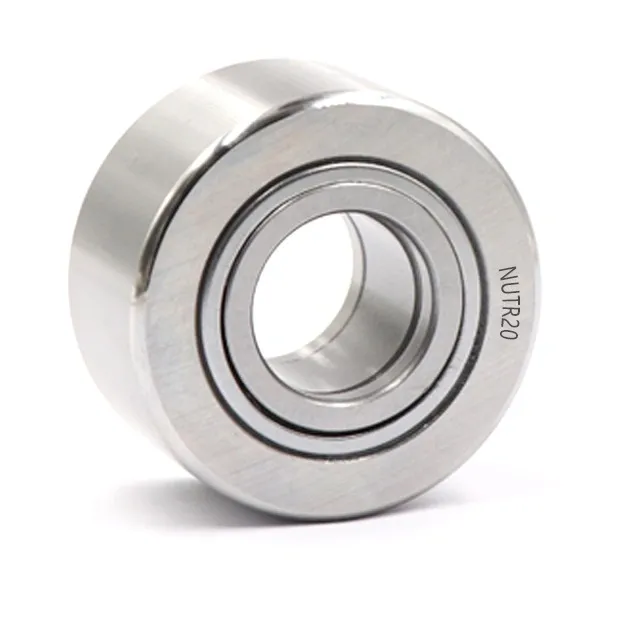

NUTR3072.2RS Yoke Type Track Roller Bearings
Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.
Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.
Applications Of Track Roller Bearings
- Metals
- Mining, mineral processing and cement
- Railways
- Material handling
- Agriculture
- Construction
Versions Of Track Roller Bearings
Support Rollers Without Flange Rings, Without An Inner Ring
- RSTO Series
- RNA Series
Support Rollers Without Flange Rings, With An Inner Ring
- STO Series
- NA Series
Support Rollers With Flange Rings, With An Inner Ring
- NATR Series
- NATV Series
- PWTR Series
- NUTR Series
- NAST Series
- CYR Series
Cam Followers
- KR,KRE,KRV,KRVE Series
- NUKR,NUKRE Series
- PWKR,PWKRE Series
- CF,CFE,CFH Series
Technical specification
NUTR series Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and suitable for cam drives, slideways, conveying equipment, etc. Metric series, with two row full complement cylindrical rollers design, available with cylindrical OD(suffix X), includes labyrinth seals for higher temperatures.
| Bearing No. | Dimensions (mm) | Basic Load Rating (KN) |
Limited Speed |
Mass | ||||||||
| Shield Type | Sealed Type | d | D | B | C | d1 | r min | r1 min | C | Co | rpm | kg |
| NUTR 15 | NUTR 15.2RS | 15 | 35 | 19 | 18 | 20 | 0.6 | 0.3 | 12.00 | 13.44 | 5200 | 0.100 |
| NUTR 17 | NUTR 17.2RS | 17 | 40 | 21 | 20 | 22 | 1.0 | 0.5 | 14.72 | 18.08 | 4400 | 0.148 |
| NUTR 1542 | NUTR 1542.2RS | 15 | 42 | 19 | 18 | 20 | 0.6 | 0.3 | 14.48 | 17.52 | 5200 | 0.160 |
| NUTR 20 | NUTR 20.2RS | 20 | 47 | 25 | 24 | 27 | 1.0 | 0.5 | 22.40 | 28.00 | 3360 | 0.247 |
| NUTR 1747 | NUTR 1747.2RS | 17 | 47 | 21 | 20 | 22 | 1.0 | 0.5 | 17.04 | 22.40 | 4400 | 0.222 |
| NUTR 25 | NUTR 25.2RS | 25 | 52 | 25 | 24 | 31 | 1.0 | 0.5 | 23.20 | 30.00 | 2720 | 0.284 |
| NUTR 2052 | NUTR 2052.2RS | 20 | 52 | 25 | 24 | 27 | 1.0 | 0.5 | 25.20 | 32.80 | 3360 | 0.324 |
| NUTR 30 | NUTR 30.2RS | 30 | 62 | 29 | 28 | 38 | 1.0 | 0.5 | 32.00 | 40.00 | 2080 | 0.470 |
| NUTR 2562 | NUTR 2562.2RS | 25 | 62 | 25 | 24 | 31 | 1.0 | 0.5 | 28.40 | 40.00 | 2720 | 0.455 |
| NUTR 35 | NUTR 35.2RS | 35 | 72 | 29 | 28 | 44 | 1.1 | 0.6 | 35.60 | 48.00 | 1680 | 0.636 |
| NUTR 3072 | NUTR 3072.2RS | 30 | 72 | 29 | 28 | 38 | 1.0 | 0.5 | 38.00 | 51.20 | 2080 | 0.704 |
| NUTR 40 | NUTR 40.2RS | 40 | 80 | 32 | 30 | 51 | 1.1 | 0.6 | 44.00 | 60.00 | 1280 | 0.824 |
| NUTR 3580 | NUTR 3580.2RS | 35 | 80 | 29 | 28 | 44 | 1.1 | 0.6 | 40.80 | 57.60 | 1680 | 0.844 |
| NUTR 45 | NUTR 45.2RS | 45 | 85 | 32 | 30 | 55 | 1.1 | 0.6 | 44.80 | 62.40 | 1120 | 0.892 |
| NUTR 50 | NUTR 50.2RS | 50 | 90 | 32 | 30 | 60 | 1.1 | 0.6 | 45.60 | 64.80 | 1040 | 0.956 |
| NUTR 4090 | NUTR 4090.2RS | 40 | 90 | 32 | 30 | 51 | 1.1 | 0.6 | 52.80 | 76.00 | 1280 | 1.140 |
| NUTR 45100 | NUTR 45100.2RS | 45 | 100 | 32 | 30 | 55 | 1.1 | 0.6 | 56.80 | 85.60 | 1120 | 1.410 |
| NUTR 50110 | NUTR 50110.2RS | 50 | 110 | 32 | 30 | 60 | 1.1 | 0.6 | 60.80 | 96.00 | 1040 | 1.707 |
