Y-48
Description: type K thermocouple wire with Kapton insulation and polyimide wrapping

Thermocouple type: K
Conductor (+): Ni/Cr

Conductor (-): Ni/Al
Construction: 7/0.2
Section: 0.2mm2
Insulation Kapton = PTFE
Insulation Color: red, yellow
Wrapping: double polyimide

Polyimide color: gold
Rating temperature: 260 ℃

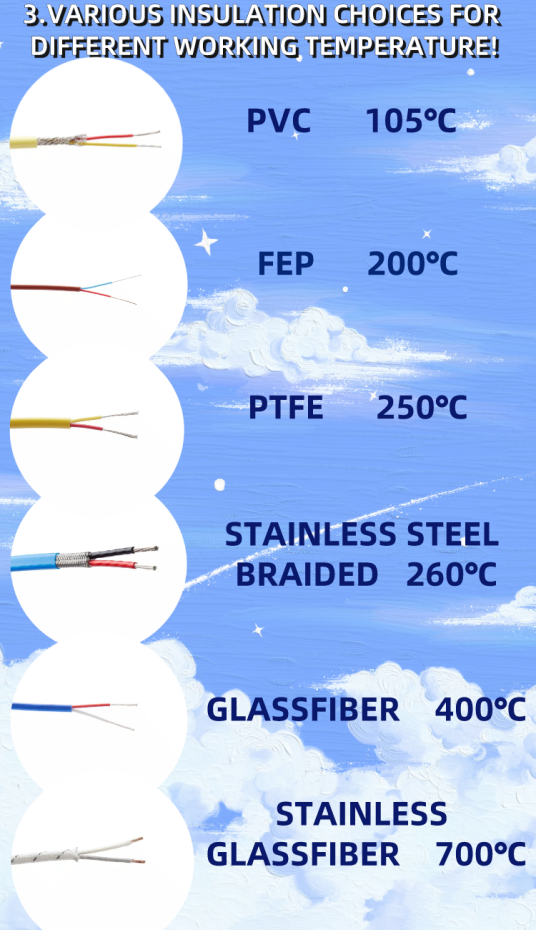

For high temperature thermocouple wire except fep insulation we can still choose Kapton/PTFE + polyimide combination.

Fused Kapton tape applied to conductors and jackets. Excellent moisture and abrasion resistance, high dielectric strength (7 kV/mil) retains much physical integrity after gamma radiation. FEP is used as adhesive binding agent (melts at approx. 500°F). However, in most applications the wire will withstand 600°F for prolonged time periods.

So, we have more choices in high temperature thermocouple wire, especially in glass factory, steel factory and petrochemical plant.

Dingzun Cable has been engaged in manufacturing various kinds of high temperature wires over 18 years, we have rich experience to produce super quality high temp wire.
