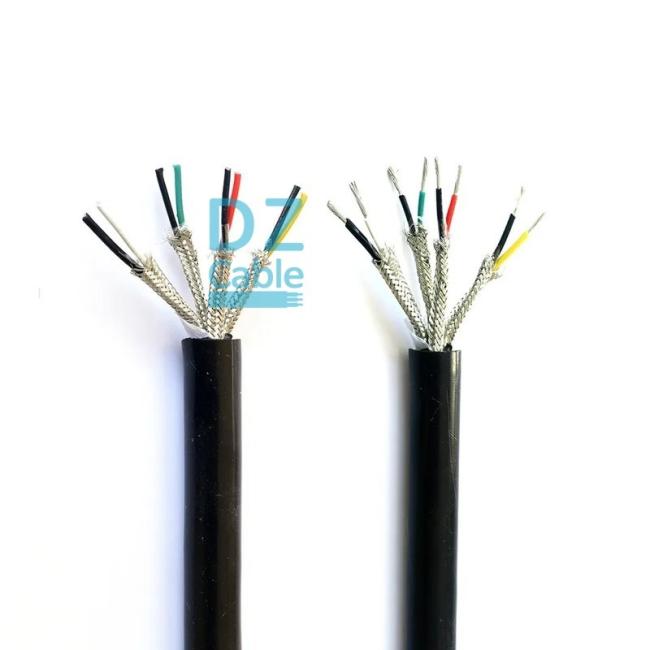

Multi Pair Individual Braided Shielded FEP Computer Cable – 4 Pairs 18AWG 450/750V TC/FEP/ISCR/Silicone
This high-performance multi pair computer cable features 4 twisted pairs of 18AWG conductors with individual braided shielding on each pair, specifically engineered for reliable data transmission in demanding industrial and computer applications requiring superior EMI protection and high temperature performance.
The TC tinned copper conductors provide excellent conductivity, flexibility, and corrosion resistance for reliable signal transmission. FEP insulation delivers outstanding thermal stability, low dielectric loss, and excellent electrical properties essential for high-speed data transmission. The ISCR individual screen features tinned copper wire braiding on each pair, providing robust EMI protection and eliminating crosstalk between adjacent signal pairs. The silicone rubber sheath offers exceptional flexibility, wide temperature range performance, and durability in demanding environments.
Rated at 450/750V, this 4-pair cable is ideal for computer interconnections, industrial control systems, data communication networks, and instrumentation requiring multiple shielded pairs with high temperature capability and superior noise rejection.
4 twisted pairs x 18AWG for multi-channel data transmission
TC tinned copper conductors for flexibility and corrosion resistance
FEP insulation for thermal stability and low dielectric loss
ISCR individual tinned copper wire braid shield per pair for 100% EMI protection
Silicone rubber sheath for flexibility and wide temperature range
450/750V voltage rating for industrial applications
Individual braided shielding eliminates crosstalk between pairs
| Parameter | Details |
|---|---|
| Type | Multi pair individual braided shielded computer cable |
| Configuration | 4 pairs x 18AWG |
| Conductor | TC tinned copper |
| Insulation | FEP compound |
| Individual Shield (ISCR) | Tinned copper wire braiding per pair |
| Sheath | Silicone rubber compound |
| Voltage Rating | 450/750V |
This 4-pair cable provides superior signal integrity for critical computer and industrial data applications. Individual tinned copper braided shielding on each pair eliminates crosstalk and provides robust EMI protection. FEP insulation ensures stable electrical properties at elevated temperatures, while silicone sheath offers exceptional flexibility. The 18AWG conductor size provides excellent current carrying capacity for both data and low power applications.
| AWG | Conductor (mm) |
Avg.Insulation Thickness (mm) |
Outer Dia. (mm) |
Stranded Dia. (mm) |
Jacket Thickness(mm) | OD(mm) |
| 2*18 | 7/0.39 | 0.25 | 1.70 | 3.40 | 0.64 | 4.7±0.2 |
| 3*18 | 7/0.39 | 0.25 | 1.70 | 3.70 | 0.64 | 5.0±0.3 |
| 4*18 | 7/0.39 | 0.25 | 1.70 | 4.10 | 0.64 | 5.4±0.3 |
| 5*18 | 7/0.39 | 0.25 | 1.70 | 4.60 | 0.64 | 5.9±0.3 |
| 6*18 | 7/0.39 | 0.25 | 1.70 | 4.80 | 0.64 | 6.1±0.3 |
| 7*18 | 7/0.39 | 0.25 | 1.70 | 5.10 | 0.64 | 6.4±0.3 |
| 2*16 | 19/0.30 | 0.25 | 2.00 | 4.00 | 0.64 | 5.3±0.3 |
| 3*16 | 19/0.30 | 0.25 | 2.00 | 4.30 | 0.64 | 5.6±0.3 |
| 4*16 | 19/0.30 | 0.25 | 2.00 | 4.80 | 0.64 | 6.1±0.3 |
| 5*16 | 19/0.30 | 0.25 | 2.00 | 5.40 | 0.64 | 6.7±0.3 |
| 6*16 | 19/0.30 | 0.25 | 2.00 | 5.60 | 0.64 | 6.9±0.3 |
| 7*16 | 19/0.30 | 0.25 | 2.00 | 6.00 | 0.64 | 7.3±0.4 |
| 2*14 | 19/0.37 | 0.25 | 2.40 | 4.80 | 0.64 | 6.1±0.3 |
| 3*14 | 19/0.37 | 0.25 | 2.40 | 5.20 | 0.64 | 6.5±0.3 |
| 4*14 | 19/0.37 | 0.25 | 2.40 | 5.80 | 0.64 | 7.1±0.4 |
| 5*14 | 19/0.37 | 0.25 | 2.40 | 6.50 | 0.64 | 7.8±0.4 |
| 6*14 | 19/0.37 | 0.25 | 2.40 | 6.70 | 0.64 | 8.0±0.4 |
| 7*14 | 19/0.37 | 0.25 | 2.40 | 7.20 | 0.64 | 8.5±0.4 |
| Remarks: able to produce according to customer’s requirement | ||||||
Computer Interconnections: Provides reliable data transmission between computers, servers, and peripherals
Industrial Control Systems: Delivers noise-immune signal connections for PLCs, HMIs, and industrial controllers
Data Communication Networks: Enables reliable communication in electrically noisy industrial environments
Instrumentation Systems: Supplies shielded connections for sensitive measurement equipment
Automation Networks: Provides robust cabling for factory automation and process control systems
Test and Measurement: Delivers high integrity signal transmission for laboratory and field test equipment
