Flexible Ultra Fine Conductor Silicone Cable – CU/Silicone 6mm² 500V 200°C IEC 60228 Class 5 High Flexibility Application Single Core, Conductor: TC Tinned Copper per IEC 60228 Class 5 or Class 6, Insulation: Flexible Silicone Compound Black

This high-performance flexible silicone cable features 6mm² single core construction with ultra fine conductor stranding, specifically engineered for applications requiring exceptional flexibility combined with 200°C high temperature resistance.

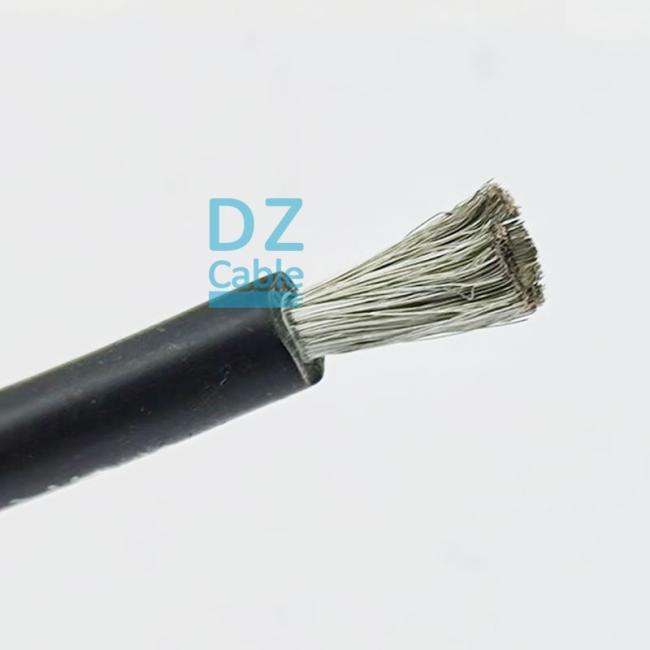

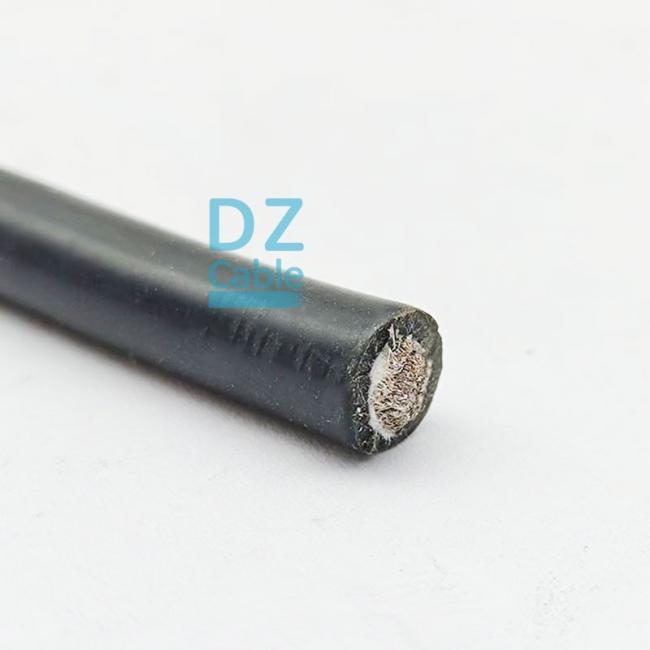

The TC tinned copper conductor complies with IEC 60228 Class 5 or Class 6, providing ultra fine stranding for maximum flexibility, excellent conductivity, and corrosion resistance. The flexible silicone compound insulation in black delivers outstanding dielectric strength, thermal stability, and maintains flexibility across a wide temperature range.

Rated at 500V with 200°C continuous operation, this single core cable is ideal for applications where standard cables cannot provide the required flexibility or temperature resistance, including robotics, moving machinery, high temperature control cabinets, and industrial equipment internal wiring.

Key Features & Technical Advantages

• 6mm² single core for high current capacity

• TC tinned copper conductor per IEC 60228 Class 5 or Class 6

• Ultra fine stranding for maximum flexibility

• Flexible silicone insulation rated 200°C continuous

• 500V voltage rating for industrial applications

• Black insulation for professional appearance

• Excellent flexibility for tight installations

• High temperature resistance for demanding environments

Specifications & Construction

Why Choose This Ultra Fine Conductor Silicone Cable

This 6mm² silicone cable provides exceptional flexibility for demanding high temperature applications. The Class 5 or Class 6 ultra fine stranding ensures maximum flexibility for tight routing and dynamic applications. Silicone insulation maintains flexibility at high temperatures where other insulations become rigid. The 500V rating provides ample margin for industrial control and power circuits.

Typical Applications – Solving Critical Flexibility Challenges

• Robotics: Provides flexible power connections for robotic arms and moving joints

• Moving Machinery: Delivers reliable cabling for cable carriers and track systems

• High Temperature Control Cabinets: Enables flexible internal wiring in elevated temperature environments

• Industrial Equipment: Supplies flexible power connections for manufacturing machinery

• Test and Measurement: Provides flexible test leads for high temperature applications

• Automotive Testing: Delivers flexible cabling for engine test cells and dynamometers

Request a Quote or Custom Specification

Ready to specify this flexible silicone cable for your application? Contact our technical sales team today.

• Email Us: patrick@dingzuncable.com

• Call: +86 180 1937 7761
• Request a Custom Quote

Frequently Asked Questions

Q1: What is the difference between Class 5 and Class 6 stranding?

A: Class 5 provides fine stranding for high flexibility; Class 6 provides ultra fine stranding for maximum flexibility, suitable for continuous flexing applications.

Q2: What temperature rating does this silicone cable have?

A: Rated at 200°C continuous operation, maintaining flexibility and dielectric properties at elevated temperatures.

Q3: What is the advantage of TC tinned copper conductor?

A: Tinned copper provides corrosion resistance, excellent solderability, and maintains conductivity at high temperatures.

Q4: What voltage rating does this cable have?

A: Rated at 500V, suitable for industrial power and control circuits.

Q5: Is this cable suitable for continuous flexing applications?

A: Yes, Class 6 ultra fine stranding is specifically designed for continuous flexing and dynamic applications.
