HEAT 205 High Voltage Ul1331 FEP High Temperature Cable For Instrumentation
Details:HEAT 205
Rated temperature:150℃
Rated voltage:600V
Reference standard:UL758,UL1581,CSA C22.2No.210.2

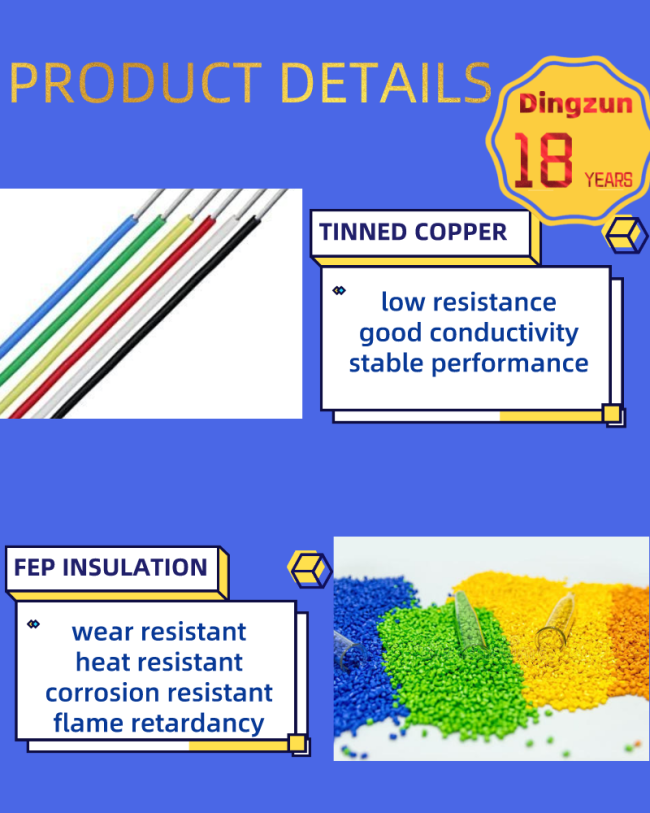

Solid or stranded, tinned or bare copper conductor 30~10AWG
FEP insulation, comply with ROHS, REACH environmental standard
Passes UL VW-1 and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:
For general purpose internal wiring of appliance
|
AWG |
Section (mm2) |
Conductor No./ Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation Thickness (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃(≤Ω/km) |
| 30 | 0.05 | 7/0.10 | 0.51 | 0.46 | 1.32 | 381 |
| 1/0.254 | 0.51 | 0.46 | 1.28 | 361 | ||
| 28 | 0.08 | 7/0.12 | 0.51 | 0.46 | 1.38 | 239 |
| 1/0.32 | 0.51 | 0.46 | 1.34 | 227 | ||
| 26 | 0.13 | 7/0.16 | 0.51 | 0.46 | 1.50 | 150 |
| 1/0.41 | 0.51 | 0.46 | 1.43 | 143 | ||
| 24 | 0.22 | 7/0.20 | 0.51 | 0.46 | 1.62 | 94.2 |
| 1/0.50 | 0.51 | 0.46 | 1.52 | 89.3 | ||
| 22 | 0.33 | 19/0.16 | 0.51 | 0.46 | 1.82 | 59.4 |
| 1/0.65 | 0.51 | 0.46 | 1.67 | 56.4 | ||
| 20 | 0.5 | 19/0.20 | 0.51 | 0.46 | 1.97 | 36.7 |
| 1/0.80 | 0.51 | 0.46 | 1.82 | 35.2 | ||
| 18 | 0.8 | 19/0.23 | 0.51 | 0.46 | 2.17 | 23.2 |
| 17 | 1.0 | 19/0.26 | 0.51 | 0.46 | 2.32 | 18.3 |
| 16 | 1.3 | 19/0.30 | 0.51 | 0.46 | 2.52 | 14.6 |
| 14 | 2.0 | 19/0.37 | 0.51 | 0.46 | 2.87 | 8.96 |
| 12 | 3.3 | 19/0.49 | 0.51 | 0.46 | 3.47 | 5.64 |
| 10 | 5.3 | 37/0.43 | 0.51 | 0.46 | 4.03 | 3.546 |
|
Remarks: more AWG available, pls. contact us
|
||||||
According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.
Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.
Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.
1. Are you a manufacture or trading company?
We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.
2. Does your company accept OEM production?
Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.
3. What about the lead time for mass production?
Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.
4. What’s your minimum quantity?
Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.
5. How can I get a sample to check your quality?
Samples are free for customer; you only need to pay the courier charge.
6. How does you company control the quality?
Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc.
