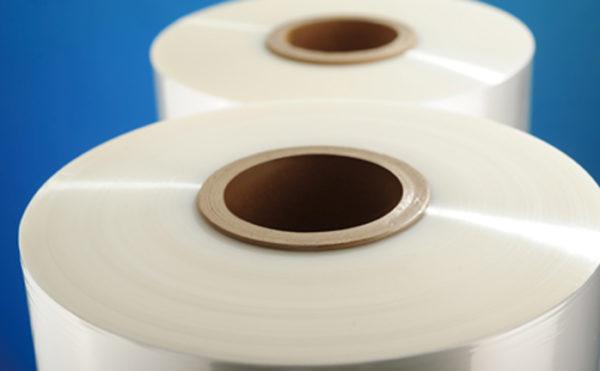

5 Layers Fantastic Seal Strength 350mm Wide Standard POF Shrink Film For Jigsaw Puzzle
5 Layers Fantastic Seal Strength 350mm Wide Standard POF Shrink Film For Jigsaw Puzzle
POF shrink film gives high clarity and fantastic seal strength at lower temperatures when compared to a PVC shrink wrapping film. Polyolefin has a greater tensile strength than the equivalent PVC so this means that you can often reduce the thickness which will reduce the linear meterage cost, making each pack you produce cheaper. With its added strength it is quite often the case that less reworking of shrink-wrapped products is needed.It can be used on Household Product,Consumables,Paper Tissue,Stationery,Book,Stretched Canvas,Pharmaceutical,food,clock,box,photo frame,toy,games,jigsaw,ironing board,clothes dryer etc.
- Available in 12microns, 15microns,19microns and 25mirons rolls
- Suitable for direct food contact
- Produces a very strong seal
- Quick shrinkage (65% at 135 degrees)
- Polyolefin has very high clarity properties
- Ideal shrink wrap film for retail products
- All cores are 76mm
5 layers POFshrink film Typical Properties
| Properties Table of Polyolefin Shink film(JYGH001) | ||||||
| UNIT | TEST METHOD | REPRESENTATIVE VALUES | ||||
| JYGH01 | JYGH01 | JYGH01 | JYGH01 | |||
| THICKNESS | micron | 12 | 15 | 19 | 25 | |
| YIELD | m²/kg | 91 | 72.8 | 57.4 | 43.7 | |
| FLAT FILM LENGTH | ft | 10.94 | 8,740 | 7,000 | 5,250 | |
| FOLDED FILM LENGTH | ft | 5,470 | 4,370 | 3,500 | 2,625 | |
| FLAT FILM WIDTH | in | 6-76 | 6-80 | 6-80 | 6-80 | |
| FOLDED FILM WIDTH | in | 6-36 | 6-36 | 6-36 | 6-36 | |
| INNER DIAMETER | in | 3 | 3 | 3 | 3 | |
| TENSILE PROPERTIES | MD TD | MD TD | MD TD | MD TD | ||
| TENSILE STRENGTH | N/mm² | D-883 | 125 120 | 120 100 | 120 110 | 110 100 |
| ELONGATION | % | D-884 | 105 100 | 105 100 | 110 105 | 110 120 |
| SEAL STRENGTH | N/mm² | Int.meth. | 40 | 40 | 39 | 39 |
| TEAR PROPAGATION | gr | D-1922 | 6.5 | 10 | 14.5 | 17 |
| COF.FILM TO FILM,KINETIC | D-1894 | 0.23 | 0.21 | 0.21 | 0.21 | |
| SHRINKAGE | MD TD | MD TD | MD TD | MD TD | ||
| SHRINK AT 120 | % | D-2732 | 52 54 | 52 53 | 52 53 | 51 52 |
| SHRINK AT 130 | % | D-2732 | 64 67 | 63 66 | 62 65 | 61 64 |
| HAZE | % | D-1003 | 1.4 | 1.7 | 2.1 | 2.3 |
| GLOSS | photoc. | D-2457 | 125 | 125 | 125 | 120 |

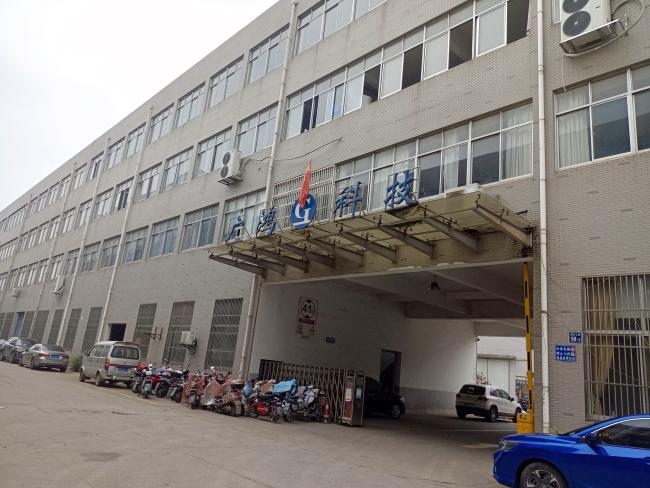

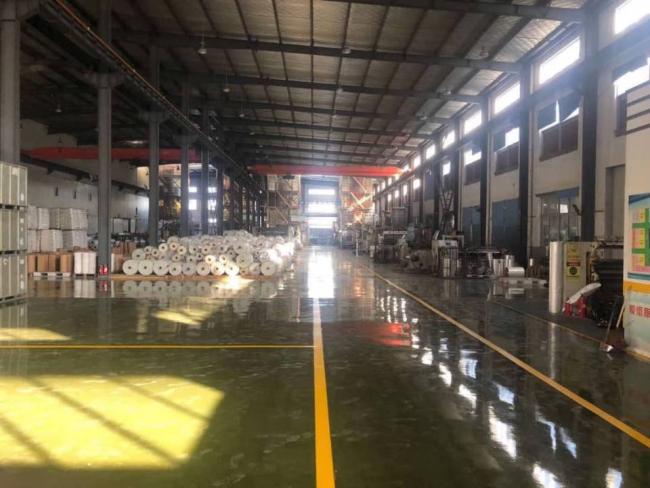

Factory
FAQ
A1: We are manufacturer.
Q2: Do you provide samples ? is it free or extra ?
A2: Yes, we could offer the stock small roll sample for free charge but do not pay the cost of freight.
Q3: How long is your delivery time?
A3: Generally it is about 7-14 days.
Q4: How to pay for your goods?
A4: By T/T (30% deposit before production, 70% balance before shipment).
