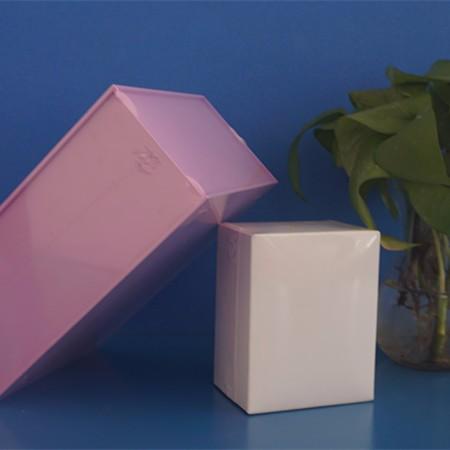

5 Layer Coextruded Single Wound ( SW ) Polyolefin Shrink Wrap Film For Box

5 layer coextruded, produced by our company has high grade of transparency and low specific gravity and is economic and practical. Compared with a three-layer heat shrinkable film, it has obvious barrier property. It shrinks in two directions during packing, and has quite high toughness, and stable and balanced shrinkable factor; after packing, it has a firm seal and small and soft corner, is cold-resistant, insusceptible to embrittlement and free from toxicity and peculiar smell, and is the optimal substitute for PVC heat shrinkable films. It prevents product surface from dust and peculiar smell, is moisture-proof, and can effectively protect a packaged object.

The product is suitable for semi-automatic and full-automatic heat shrink packing machines

Single Wound Gauge & Roll Lengths

• 45 Gauge - 11,660 Feet
• 60 Gauge - 8,750 Feet
• 75 Gauge - 7,000 Feet
• 100 Gauge - 5,240 Feet
• 125 Gauge - 4,200 Feet
• 150 Gauge - 3,500 Feet
• 200 Gauge - 2,620 Feet

• Property	Unit	Method	Nominal Values
  Density	g/cm³	ASTM D-1505	0.922
  Haze	%	ASTM D-1003	3.8
  Gloss 45°	%	ASTM D-2459	89
  Tensiles Strength	N/mm²	ASTM D-882	MD 105 TD 115
  Elongation	%	ASTM D-882	MD 140 TD 140
  Shrinkage at 120°C Oil Bath 5 Sec	%	Syfan Method	MD 71 TD 70
  Tearing Resistance	g/25 µ	Elmendorf	MD 45 TD 30
  Coefficient of Friction		Film/Film	<0.25
  MVTR (15 mic)	g/m²/24hr@90%RH37°C	ASTM E-96	23
  OTR (15 mic)	cc/m²/24hr/1atm@25°C	ASTM D3985-05(2010)e1	12000
