ASTM JIS Cold Rolled GI Chequered Plate 10mm Thick 80 / 120 / 180 / 275g
ASTM ISO RAL Color PPGI / PPGL As Required Cold Rolled Galvanized Steel Coil DX51D
Product Description:
What is the use of Chequered plate?
Chequer / Checker plate is used in decorative, architectural applications and shipbuilding – (because it is anti-corrosive and it doesn't require painting so it is low maintenance). Chequer plate is a very versatile material with many different uses.
Is Chequer plate Galvanised?
Our checker plate products are all made of galvanized steel sheets, and they have an excellent weather resistance. We deliver precision products to set up a specialized line checked steel plate leveler. Galvanized steel checker plate in 2.5 mm to 3.0 mm thickness can be used to build storage system.
What is the thickness of a Chequer plate?
Mild Steel Floor Plates also known as 'Durbar' or 'Chequer' plate. Stock sizes range from 2000 x 1000mm up to 3000 x 1500mm and thicknesses range from 3mm up to 12.5mm.
|
product name
|
Galvanized steel sheets/Galvalume steel sheet
|
|
Thickness
|
0.13mm-5.0mm
|
|
Width
|
600mm-1500mm,762mm,914mm,1000mm,1200mm,1219mm,1250mm
|
|
zinc coating
|
40g,60g, 80g, 90,100g, 120g, 140g,180g, 200g, 250g, 275g and so on.
|
|
Standard
|
ASTM, AISI, DIN, GB
|
|
Material
|
SGCC,DC51D,DX51D,DX52D,SGCD,Q195,Q235,SGHC,DX54D, S350GD, S450GD,
|
|
Spangle
|
zero spangle,regular spangle or normal spangle
|
|
surface treatment
|
chromated and oiled, chromated and non-oiled
|
|
Packing
|
export standard.
|
|
Payment
|
T/T, L/C or DP
|
|
min order
|
25 tons (one 20ft FCL)
|
|
Quality
|
soft or hard quality
|
|
bse metal type
|
Grade
|
CHEMICAL COMPOSITION %
|
|||
|
C
|
Si
|
Mn
|
P
|
||
|
cold rolled steel sheet
|
DC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF
|
≤0.10
|
-
|
≤0.50
|
≤0.035
|
|
DC52D+Z (St04Z), DC52D+ZF
|
≤0.08
|
-
|
≤0.45
|
≤0.030
|
|
|
DC53D+Z (St05Z), DC53D+ZF
|
≤0.08
|
-
|
≤0.40
|
≤0.030
|
|
|
DC54D+Z (St06Z), DC54D+ZF
|
≤0.01
|
≤0.10
|
≤0.30
|
≤0.025
|
|
|
DC56D+Z (St07Z), DC56D+ZF
|
≤0.01
|
≤0.10
|
≤0.30
|
≤0.025
|
|
|
hot rolled steel sheet
|
DD51D+Z (St01ZR, St02ZR)
|
≤0.10
|
-
|
≤0.50
|
≤0.035
|
|
DD54D+Z (St06ZR)
|
≤0.01
|
≤0.10
|
≤0.30
|
≤0.025
|
|

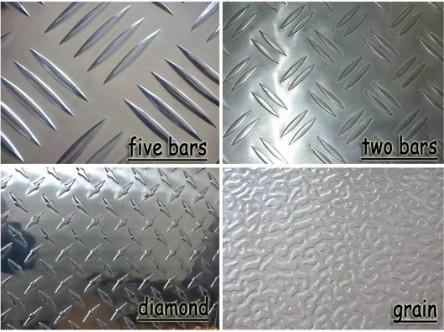

Product Details:
Product Application:
Product Line:

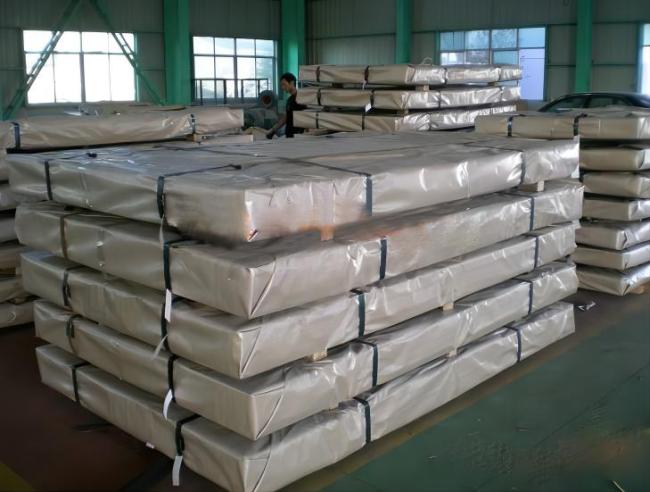

Packing and Shipping:
Certification:
FAQ:
A:Yes,We are pleased to provide you with samples of our products.
2.Q:How about your quality?
A:We serious control the quality from raw material to finished pipes. quality.BV, ISO certificates and SGS test can be provided .
So please be assured that our goods is qualified.
3.Q: Price advantage ?
A: Our price is workable, and we are manufacturer then you can get a competitive price.
4.Q: After sales service.
A: Quality are promised. Our com pany good reputation d ues to the quality and service.
