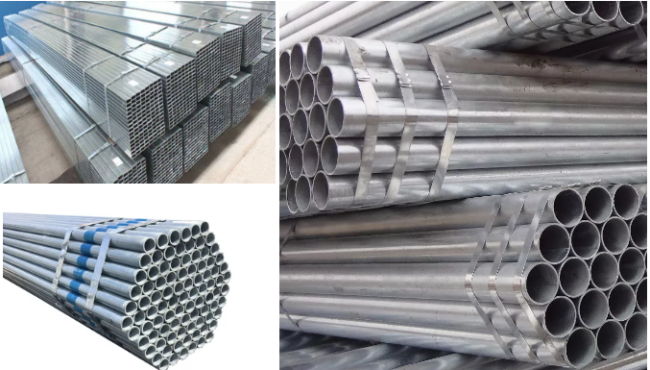

0.5-25mm Hot Galvanized Pipe GI Hot Dip Galvanized Steel Round Pipe 20-325 Diameter
GI Hot Dip Galvanized Steel Round Pipe / GI For Construction 0.5-25mm Thickness 20-325 Diameter
Descriptions
|
Certifications
|
ISO 9001:2008, BV, SGS, ABS
|
|
Production capacity
|
3500 ton/week
|
|
Section shape
|
Round
|
|
Outer diameter
|
20-325mm
|
|
Wall thickness
|
0.5-25mm
|
|
Length
|
2-12m, or cut as request.
|
|
Technique tolerance
|
OD: +/-1mm, WT: +/-0.5mm, L: +/-20mm
|
|
Surface treatment
|
Galvanized, painted, oiled, printed or powder coated
|
|
Zinc coated
|
pre-galvanized, 80-120 g/m2;
hot dip galvanized, 230-500 g/m2 |
|
Colour
|
Silver, black or painted as request
|
|
End of pipe
|
Plain burred,beveled, threaded
|
|
Trade term
|
FOB Tianjin China, CIF, C&F
|
|
Loading Port
|
Shanghai Port, China
|
|
Package
|
1.Big OD: in bulk;
2.Small OD: in bundles, packed by steel strips; 3. Waterproof package with plastic cloth; 4.Standard export package; 5.According to customers’ requirements. |
| Grade | Chemical Composition | Mechanical Properties | ||||||
| C | Mn | Si | S | P | Yield | Tensile | Elongati | |
| Strength Mpa | Strenth Mpa | -on % | ||||||
| Q195 | 0.06-0.12 | 0.25-0.50 | ≤0.30 | ≤0.045 | ≤0.05 | ≥195 | 315-430 | ≥33 |
| Q215 | 0.09-0.15 | 0.25-0.55 | ≤0.30 | ≤0.05 | ≤0.045 | ≥215 | 335-450 | ≥27 |
| Q235 | 0.12-0.20 | 0.30-0.67 | ≤0.30 | ≤0.045 | ≤0.04 | ≥235 | 375-500 | ≥26 |
| Q345 | ≤0.20 | 1.00-1.60 | ≤0.55 | ≤0.04 | ≤0.04 | ≥345 | 470-630 | ≥22 |
Details

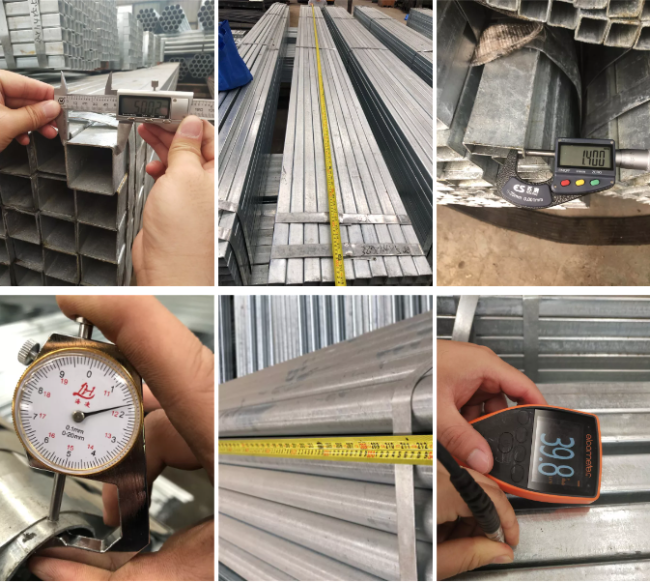

Inspection

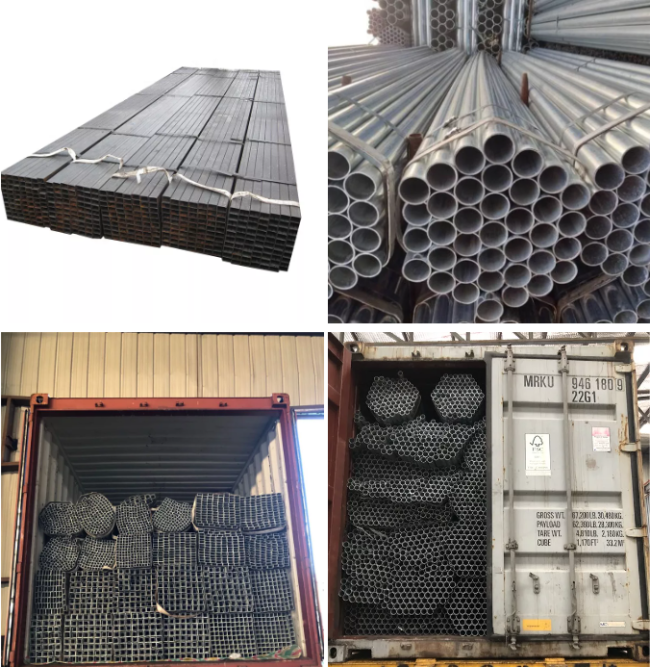

Packing & Delivery

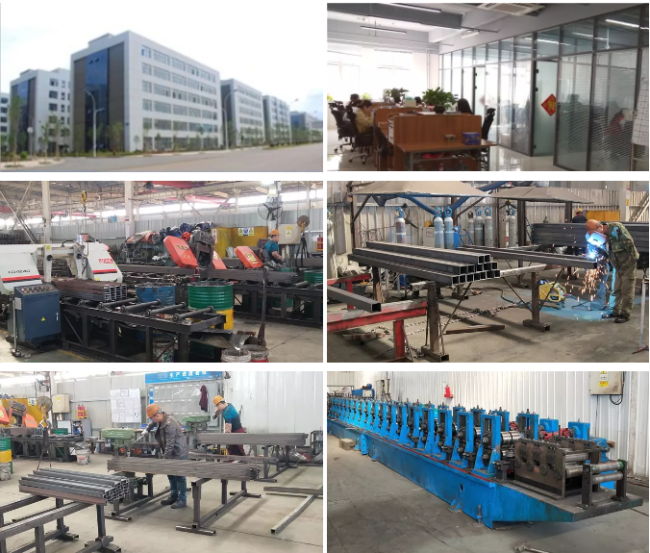

Our factory
Our certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel pipe, and our company also is a very professional trade company for steel
products.we can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: We accept LC and TT both.
