DX51D Z275 Z350 Hot Dipped Galvalume Steel Coil 600mm-1250mm Construction
DX51D Z275 Z350 Hot Dipped Galvanized Galvalume Steel Coil 600mm-1250mm Construction
Description:
Galvanized steel coil can be used outside because of its natural ability to avoid rust or corrosion. The coil itself is usually available in different dimensions. It may range from from 6 inches to 24 inches wide (15 cm to 51 cm), and up to 10 feet (3 m) long when rolled out flat.
|
Product Name
|
DX51D Z275 Z350 Hot Dipped Galvanized Galvalume Steel Coil 600mm-1250mm Construction
|
|
Standard
|
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
|
|
Steel Grade
|
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or As Requirement
|
|
Type
|
Coil/Sheet/Plate/Strip
|
|
Material
|
CGCC/SGCH/G350/G450/G550/DX51D/DX52D/DX53D
|
|
Thickness
|
0.12mm-4.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm
|
|
Width
|
600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm
|
|
Zinc Coating
|
Z30g/m2-Z350g/m2
|
|
Surface Structure
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
|
|
Coil Weight
|
3 Tons -8Tons
|
|
Coil ID
|
508mm/610mm
|
| Chemical Composition | ||||||
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| SGCE/DX54D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| DX56D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| Structural | ≤0.20 | ≤0.60 | ≤1.70 | ≤0.10 | ≤0.045 | |
Product Details:

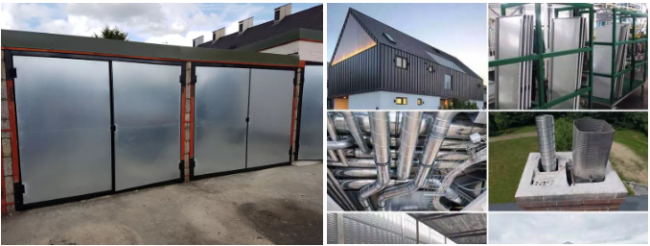

Application

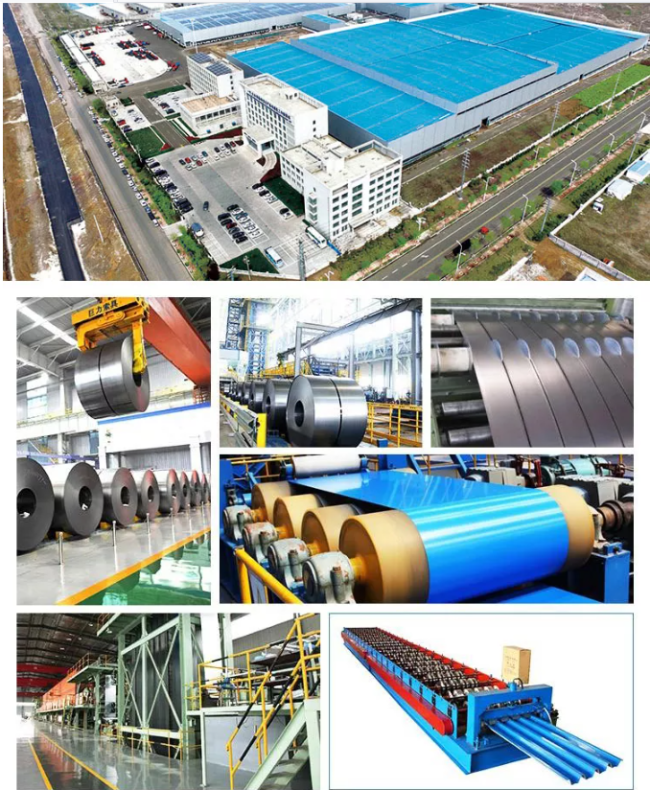

Factory Show
Our certification
FAQ:
Q:Can I get samples before order ?
A:Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.Our factory is in Jiangsu,China.
Q:How can I get a quotation from you ?
A:You can leave us message, and we will reply every message in time. Or we may talk on line.
