MR SPCC T2-T5 / DR7-DR9 Electrolytic Tinplate Coil 600 - 1500mm For Metal Packing

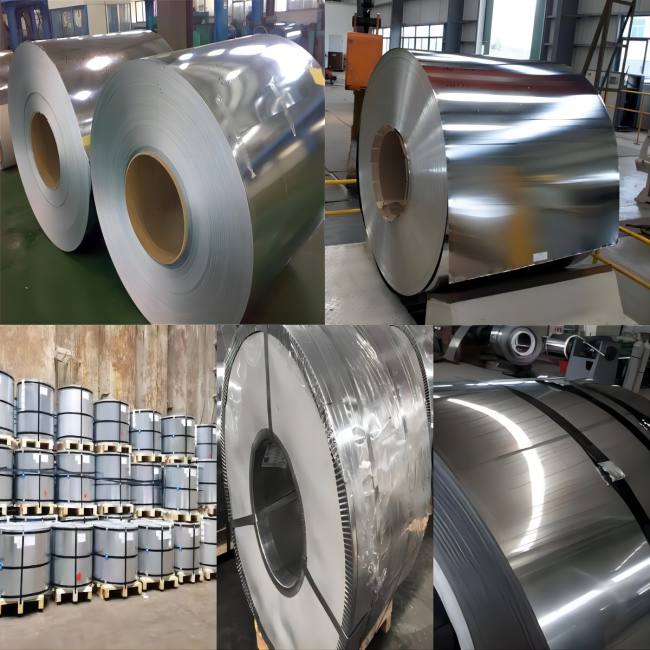

—Electrolytic Tinplate Coils—
|
Product Description
What is tinplate used for? Tinplate is used for making all types of containers such as food cans, beverage cans, 18-liter cans, and artistic cans. Its applications are not limited to containers; recently, tinplate has also been used for making electrical machinery parts and many other products.
What is tinplate made of? tinplate, thin steel sheet with a coating of tin applied either by dipping in molten metal or by electrolytic deposition; almost all tinplate is now produced by the latter process. Tinplate made by this process is essentially a sandwich in which the central core is strip steel. |
 |
| Standard | JIS G3303 |
| Material | MR,SPCC |
| Thickness & tolerance | 0.15-0.50mm(tolerance-/+0.005mm) |
| Width & tolerance | 500-1000mm(tolerance -0/+1mm) |
| Temper | T1-T5/DR7-DR9 |
| Coating | 60-120mg/m2 |
| Surface finish | Bright,Stone,Silver,Matt |
| Annealing | BA & CA |
| Oiling | DOS |
| Coil ID | 508mm |
| Coil weight | 3-10MT |
| Sheet weight | 1-1.5MT |
| Weight in one 20'container | 20-25MT |
| Packaging | For coils: Anti-rust paper +metal cover +corner protected +wood skid Laded into 20 feet container with max weight 25 tons For sheets: Thin plastic film +rust-proof paper +metal cover +metal angles + straps + pallet. Loaded in 20 feet container with max weight 25 tons |
| Application | bottle cap,paint,chemical can and other usage can making |
| Tin Coating Description | |||
| Type | Designation of coating weight | Min. average coating weight (g/m2) | Former Coating Designation |
| Equal tin coating | 1.4/1.4 | 1.2/1.2 | #15 |
| 2.2/2.2 | 2.0/2.0 | #20 | |
| 2.8/2.8 | 2.45/2.45 | #25 | |
| 5.6/5.6 | 5.05/5.05 | #50 | |
| 8.4/8.4 | 7.55/7.55 | #75 | |
| 11.2/11.2 | 10.1/10.1 | #100 | |
| Different Coating | 1.4/2.8 | 1.2/2.45 | #15/25 |
| 2.2/2.8 | 2.2/2.45 | #20/25 | |
| 2.8/5.6 | 2.45/5.05 | #25/50 | |
| 2.8/8.4 | 2.45/7.55 | #25/75 | |
| 2.8/11.2 | 2.45/10.1 | #25/100 | |
| 5.6/8.4 | 5.05/7.55 | #50/75 | |
| 5.6/11.2 | 5.05/10.1 | #50/100 | |
| 8.4/11.2 | 7.55/10.1 | #75/100 | |
Product Detail
Product Test
Factory Show
Packing
Certificate
FAQ
Q1:Where is your factory?
A:Our company's processing center is located in Jiangsu China.
Q2:What is your delivery time?
A:For products in stock, we can ship it within 7 days after receiving the deposit. For customer order, production time is 15-30 workdays after receiving the deposit.
Q3:Can I place an sample order and what is your MOQ if I accept your quality?
A:Yes, we can send you samples but you may pay the express fees and customized samples will take about 5-7days, our MOQ is 1 ton.
Q4:How could you guarantee your products?
A:Mill Test Certification is supplied with shipment, We also accept and support the third-party inspection.We also could issue the warranty to customer to guarantee the quality.
Q5:How can I get the price of needed product?
A:It's the best way if you can send us the material, size and surface, so we can produce for you to check the quality.If you still have any confusion, just contact us, we would like to be helpful.
Q6: Why do you want to buy from us instead of from other suppliers?
A:We are a trading company, our own factory, dealing in steel materials, such as steel plate, steel pipe, steel rod, steel wire, tinplate, aluminum products. Welcome to our company product exhibition, looking forward to our perfect cooperation.
