Hot Rolled 304 304L 316 316L Stainless Steel Coil 0.1 - 200mm Thickness 1220mm 1500mm 2440mm
304 304L 316 316L Stainless Steel Coil
Detail
Stainless steels are defined as ferrous alloys with the addition of at least 10.5%
Chromium by weight and are essentially low carbon steels containing significant amounts of chromium. It is the addition of chromium that gives this type of steel its corrosion resisting properties.
Stainless steel coil is used for a huge variety of applications in many diverse industries including nuclear, pharmaceutical, food processing, petrochemical, architecture, and chemical transportation.
| Item | Stainless Steel coil (Hot rolled, cold rolled) |
| Thickness | 0.3~10.0mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Grade | 200 Series:201,202300 Series:301,304,304L,309S,310S,316,316L,317L,321,347,347h400 Series:409,410,420,430 |
| Surface | Surface and finish of stainless steel 304 coil:2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching, etc |
| Brand: | Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin |
| Manufacturer: | POSCO, Baosteel, TISCO. |
| Package | Shrink-wrapped, Carton boxes, Wooden pallets, Wooden boxes, Wooden crates Etc. or as required. |
| Export to | India, Indonesia, Malaysia, Singapore, Saudi Arabia, Qatar, UAE, Iran, Iraq, Oman, South Africa, Nigeria, Kenya, Italy, UK, Brazil, Russia, Egypt, Kuwait, Taiwan, Australia. |
Chemical Composition and Mechanical Property
| Grade | C(%) | Si(%) | Mn(%) | P(%) | S(%) | Cr(%) | Ni(%) | N(%) | Cu(%) |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00-20.00 | 8.00-10.50 | ≤0.10 | / |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00-20.00 | 8.00-10.50 | ≤0.10 | / |
| 304H | 0.04-1.00 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00-20.00 | 8.00-10.50 | ≤0.10 | / |
| Grade |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Rate Of Reduction In Area (%) |
Density (G/Cm3) |
Hardness (HB) (HRB) (HV) |
| 304 | ≥515 | ≥205 | ≥40 | / | 7.93 | ≤201HBW;≤92HRB;≤210HV |
| 34L | ≥515 | ≥205 | ≥40 | / | 7.93 | ≤187HB; ≤90HRB; ≤200HV |
| 304H | ≥515 | ≥205 | ≥40 | / | 7.93 | / |
| Grade | C(%) | Si(%) | Mn(%) | P(%) | S(%) | Cr(%) | Ni(%) | Mo(%) | Cu(%) |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.0-18.00 | 10.00-14.00 | 2.00-3.00 | / |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≥0.15 | 16.0-18.00 | 10.0-14.00 | 2.00-3.00 | / |
| Grade |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Rate Of Reduction In Area (%) |
Density (G/Cm3) |
Hardness (HB) (HRB) (HV) |
| 316 | ≥620 | ≥310 | ≥30 | ≥40 | 7.98 | ≤187HB;≤90HRB;≤200HV |
| 316L | ≥620 | ≥310 | ≥40 | ≥60 | 7.98 | ≤187HB; ≤90HRB; ≤200HV |
Product Details
Production line

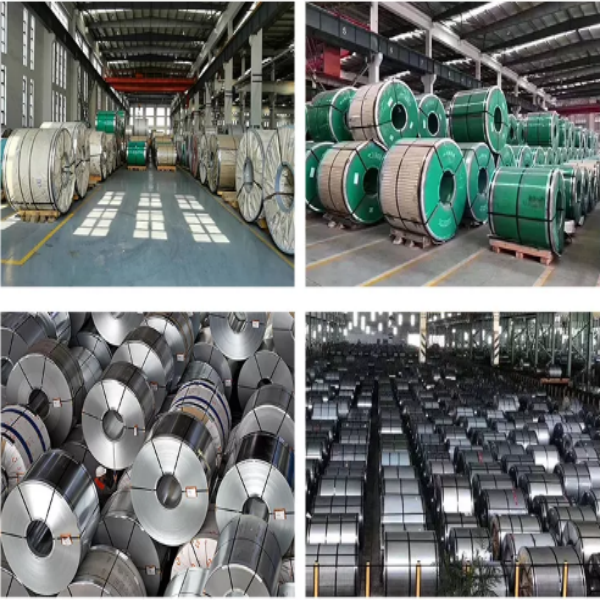

Our Warehouse
Packaging & Shipping
Application
