Hot / Cold Rolled 201 202 Stainless Steel Pipe Thickness 0.24 - 3mm Length 6m 12m
— 201,202 Stainless Steel Pipe —
Description
Applications for decoration stainless steel pipe
In our life, the most common thing is that stainless steel decorative tube is made into anti-theft window and stair handrail. So stainless steel decorative tube can be used for other purposes besides anti-theft window and stair handrail?
Of course, stainless steel decorative tube has many uses! In the past, the legs of tables and stools made of wood or aluminum tubes are now replaced by stainless steel tubes, with the advantages of simplicity, atmosphere and durability; There are also the most common clothes hanging poles for hanging clothes in wardrobes and balconies, which are also made of stainless steel tubes, with the advantages of corrosion resistance, outdoor resistance to rain and long service life; There are also trolleys in supermarkets and support rods on children's slide cars, which are hard-working and can play a very good protective role; There are also anti-theft sliding door, basin rack, grape rack, shelf, kitchen equipment and so on. Many products from all walks of life are made of stainless steel tubes.
| Description | Stainless Steel Tube.Welded and Seamless Stainless Steel Tube |
| Material | 201 202 304 316L 310S 309S 321 316T410 420 430409 duple SAF2205 S31803 etc |
| Thickness | 0.25-10mm Length 3-6m or as customized |
| Outer Diameter |
6-508mm
|
| Size (round pipe) |
9.512.7 15.9.1718.19.1.20.21.22.2.23 25.4 2831835.50.8.63.57376288.910161143.127 133.159 168 219 mm or as customized |
| Size (squarepipe) |
10x10 12x12 18x18 23x23 38*38 50x50 70*70 100*100 20*10 23*10 24*12 25*13 36x23 40x20 50x20 60x15 75x45 80*60 95*45 100*60 150*100 mm or as customized |
| Size (oval pipe) |
30x15.80x40mm or as customized |
| Process Method | Polishedcold drawn.annealed with nitrogen protectionultrasonicautomatic shape etc |
| Finishing |
A:sanded B:400#-600# mirror C:hairine brushed D:TIN titanlum E:HLbrushed &mirror (two kinds of finishing for one pipe) |
| Certificate | BV ISO CE SGS etc |
| Packing Standard | export sea-worthy packing |
| Delivery Time | 10-25 davs after deposit |
| Advantage | Stainless steel pipe can be made accordinato the customers reguirements Quality assured.Price competitiveAlibaba Trade Assurance and Delierv fast. |
Chemical composition and physical property
| Grade |
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Si (Max) |
Cr | Ni | Mo | Nitrgeo(Max) | Cu/Other |
| 201 | 0.15 | 5.5-7.5 | 0.06 | 0.03 | 1.0 | 16.0-18.0 | 0.5-1.0 | -- | 0.25 | -- |
| 202 | 0.15 | 7.5-10.0 | 0.06 | 0.03 | 1.0 | 17.0-19.0 | 1.5-2.5 | -- | 0.25 | -- |
| 304 | 0.08 | 2.0 | 0.045 | 0.03 | 1.0 | 18.0-20.0 | 8.0-10.0 | -- | 1.0 | |
| 304L | 0.03 | 2.0 | 0.045 | 0.03 | 1.0 | 18.0-20.0 | 8.01-10.5 | -- | 0.1 | -- |
| 309S | 0.08 | 2.0 | 0.045 | 0.03 | 1.0 | 22.0-24.0 | 12.0-15.0 | -- | -- | -- |
| 310S | 0.08 | 2.0 | 0.045 | 0.03 | 1.5 | 24.0-26.0 | 19.0-22.0 | -- | -- | -- |
| 316L | 0.03 | 2.0 | 0.045 | 0.03 | 1.0 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.1 | |
| 321 | 0.08 | 2.0 | 0.045 | 0.03 | 0.75 | 17.0-19.0 | 9.0-12.0 | -- | 0.1 | -- |
| 2205 | 0.025 | 1.27 | 0.026 | 0.0015 | 0.58 | ≤22.50 | ≤5.20 | ≤3.10 | -- | -- |
| 904L | 0.02 | 2.0 | 0.045 | 0.035 | 1.0 | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | -- | -- |
| Grade | TS(Mpa) | YS(Mpa) | EL(%) | RRA(%) | Density |
| 201 | ≥520 | ≥275 | 55-60 | - | 7.93 |
| 202 | ≥590 | ≥245 | - | - | 7.93 |
| 304 | ≥520 | ≥205 | ≥40 | ≥60 | 7.93 |
| 304L | ≥520 | ≥205 | ≥40 | ≥60 | 7.93 |
| 309S | ≥515 | ≥205 | ≥40 | ≥50 | 7.98 |
| 310S | ≥520 | ≥205 | ≥40 | ≥50 | 7.98 |
| 321 | ≥520 | ≥205 | ≥40 | ≥50 | 7.98 |
| 316L | ≥485 | ≥170 | ≥30 | ≥40 | 7.98 |

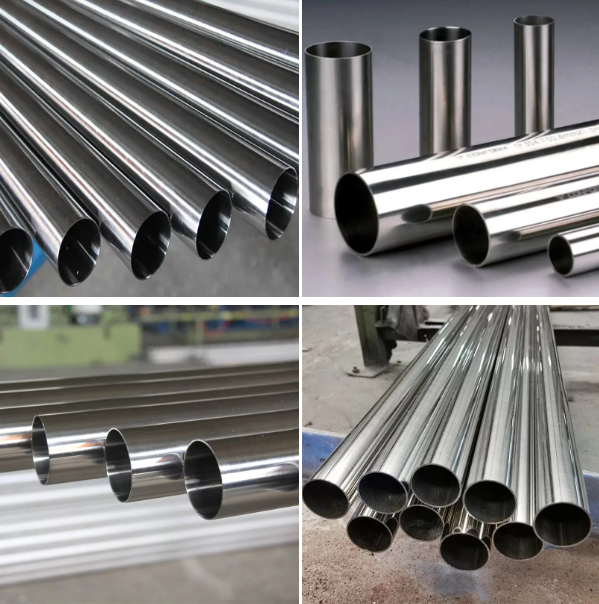

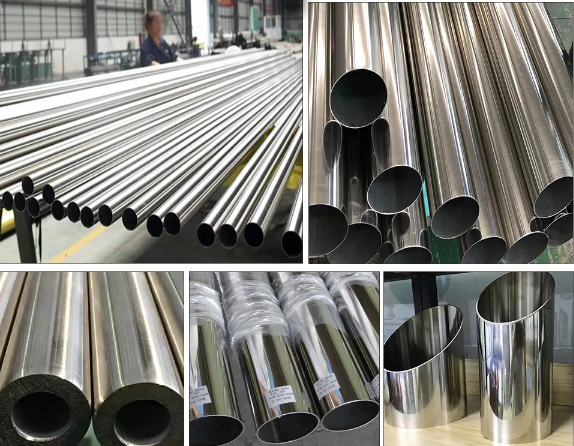

Products Details

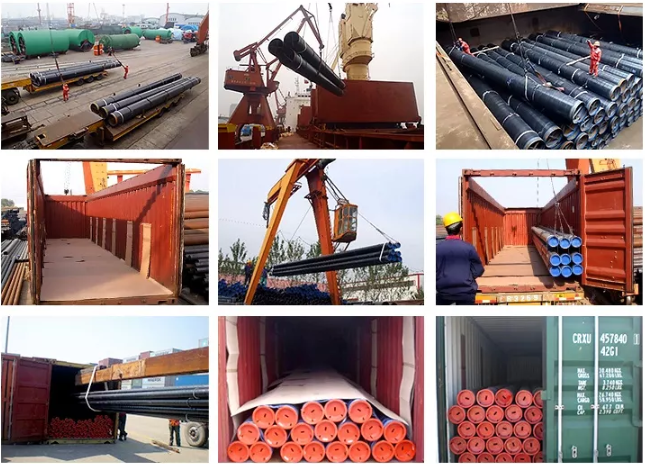

Packing

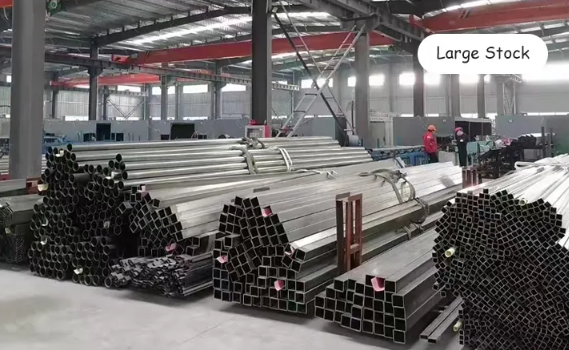

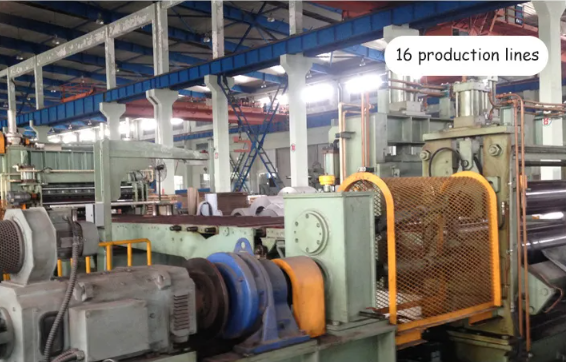

Our Warehouse & Production Line
