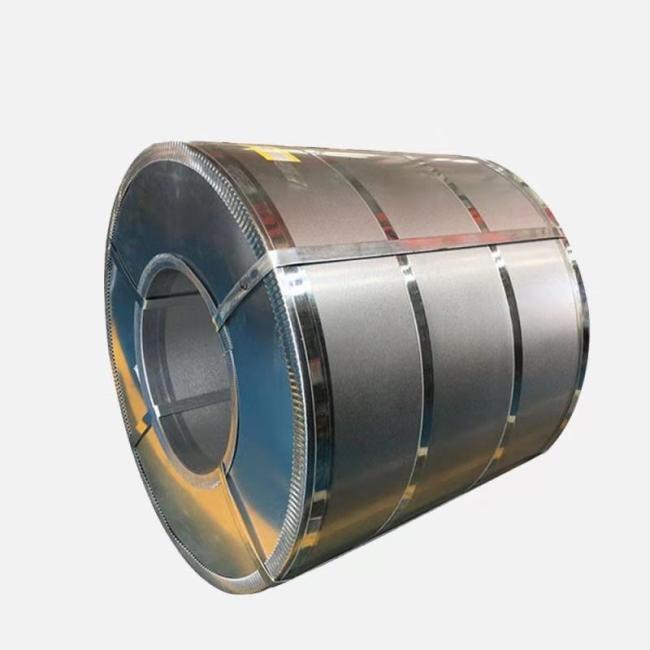

6.00mm Galvanized Steel Coils Hot Rolled Metal 30 - 275g / M2 Dx51d
Price:
Negotiable
MOQ:
1ton
Delivery Time:
3-15 days
Brand:
TISCO
Product Description
— Galvanized Steel Coil —
|
Description
Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the
substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a mixed solution of ammonium chloride and zinc chloride.And then sent to the hot-dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. |
 |
|
Technical Standard
|
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
|
|
Steel Grade
|
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440,
SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
|
Type
|
Coil/Sheet/Plate/Strip
|
|
Thickness
|
0.12-6.00mm,or customer's requirement
|
|
Width
|
600mm-1500mm, according to customer's requirement
|
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)
|
|
Zinc Coating
|
30-275g/m2
|
|
Surface Treatment
|
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
|
|
Surface Structure
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
|
|
Quality
|
Approved by SGS,ISO
|
|
ID
|
508mm/610mm
|
|
Coil Weight
|
3-20 metric ton per coil
|
|
Package
|
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement |
|
Export market
|
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
|
| STEEL GRADE | CHEMICAL COMPOSITION % | MECHANIC PROPERTY | C.B OF | COATING | ||||||
| C | Si | Mn | S | P | T.S | Y.S | E.L | COATING | ||
| x103 | x103 | x102 | x103 | x103 | Mpa | Mpa | % | d=0 180° | G/M² | |
| JIS G3302 SGCC | 12 | 30 | 41 | 31 | 21 | 480 | 300 | 13 | OK | Z60-150 |
| JIS G3302 SGCH | 12 | 10 | 21 | 18 | 8 | 680 | 650 | 20 | OK | Z60-150 |
| ASTM A653 CS.B | 29 | 30 | 60 | 35 | 30 | 386 | 250-380 | 20 | OK | Z60-275 |
| DX51D+Z | 20 | 21 | 18 | 1.8 | 11 | 355 | 245 | 38 | OK | Z60-275 |
| G550 | 12 | 6 | 73 | 5 | 17 | 715 | 654 | 8 | OK | Z60-275 |
Product Details

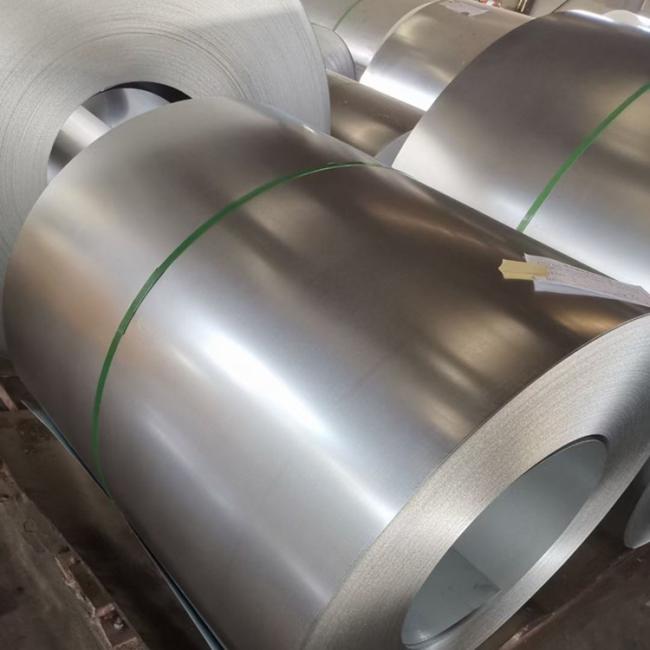

Surface Details

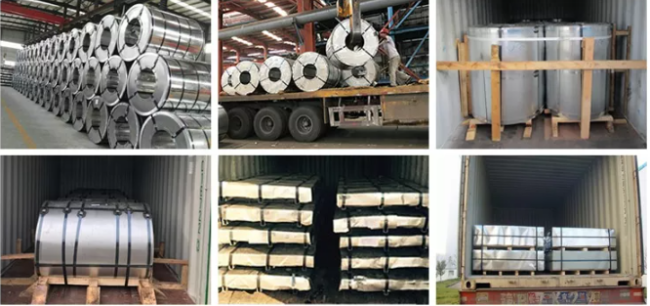

Packing and Shipping

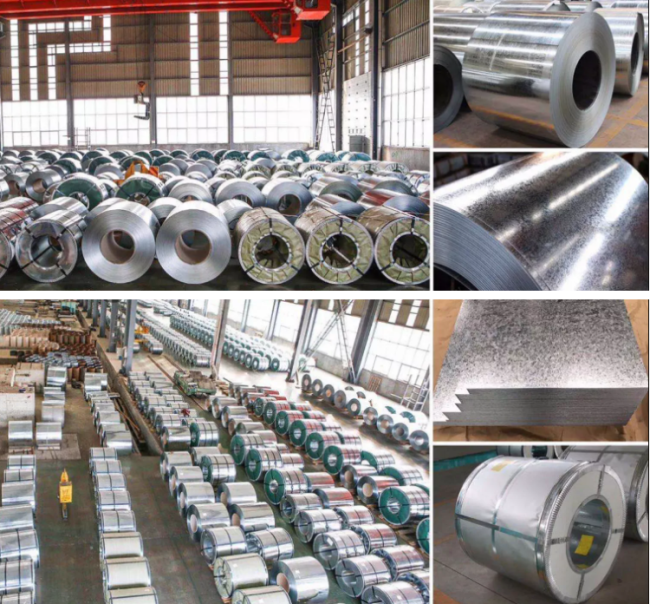

Production Line
