DX51D Hot Dipped GI Steel Coil Galvanized Z180 Zinc Coating Sheet 6mm
— Hot Dipped Galvanized Sheet GI Plate —
Product Description
The full form of GI sheet is galvanized iron sheet. It is a kind of steel sheet that has been coated with zinc to prevent corrosion and prolong its service life. You can find galvanized plain sheets and galvanized profile sheets on the market. Considering the different galvanizing processes, we have hot-dip galvanized sheets and electro-galvanized steel sheets. Due to its excellent corrosion resistance and good appearance, it is a cost-effective choice in buildings, automobiles, furniture, home appliances, vessels, etc. Please keep reading for more details.
Galvanized iron sheet is a commonly used building material. The available GI sheet thickness at Wanzhi Steel is 0.2 -4mm. The popular thickness is 0.2-1.5mm. You can choose according to your needs. For example, the common thickness of decking sheets is 0.8-1.2 mm. While if you want to make CGI roofing sheets, you need to choose the GI sheet with 0.45-0.75 mm in thickness. Below is the GI sheet gauge chart.
| Gauge | mm | Gauge | mm |
| 8 | 4.27 | 21 | 0.93 |
| 9 | 3.891 | 22 | 0.853 |
| 10 | 3.51 | 23 | 0.777 |
| 11 | 3.132 | 24 | 0.701 |
| 12 | 2.753 | 25 | 0.627 |
| 14 | 1.994 | 26 | 0.551 |
| 16 | 1.613 | 27 | 0.513 |
| 18 | 1.311 | 28 | 0.475 |
| 19 | 1.158 | 29 | 0.437 |
| 20 | 1.006 | 30 | 0.399 |
Product Chemical Component
|
bse metal type
|
Grade
|
CHEMICAL COMPOSITION %
|
|||
|
C
|
Si
|
Mn
|
P
|
||
|
cold rolled steel sheet
|
DC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF
|
≤0.10
|
-
|
≤0.50
|
≤0.035
|
|
DC52D+Z (St04Z), DC52D+ZF
|
≤0.08
|
-
|
≤0.45
|
≤0.030
|
|
|
DC53D+Z (St05Z), DC53D+ZF
|
≤0.08
|
-
|
≤0.40
|
≤0.030
|
|
|
DC54D+Z (St06Z), DC54D+ZF
|
≤0.01
|
≤0.10
|
≤0.30
|
≤0.025
|
|
|
DC56D+Z (St07Z), DC56D+ZF
|
≤0.01
|
≤0.10
|
≤0.30
|
≤0.025
|
|
|
hot rolled steel sheet
|
DD51D+Z (St01ZR, St02ZR)
|
≤0.10
|
-
|
≤0.50
|
≤0.035
|
|
DD54D+Z (St06ZR)
|
≤0.01
|
≤0.10
|
≤0.30
|
≤0.025
|
|

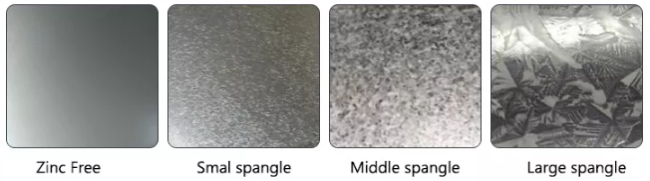

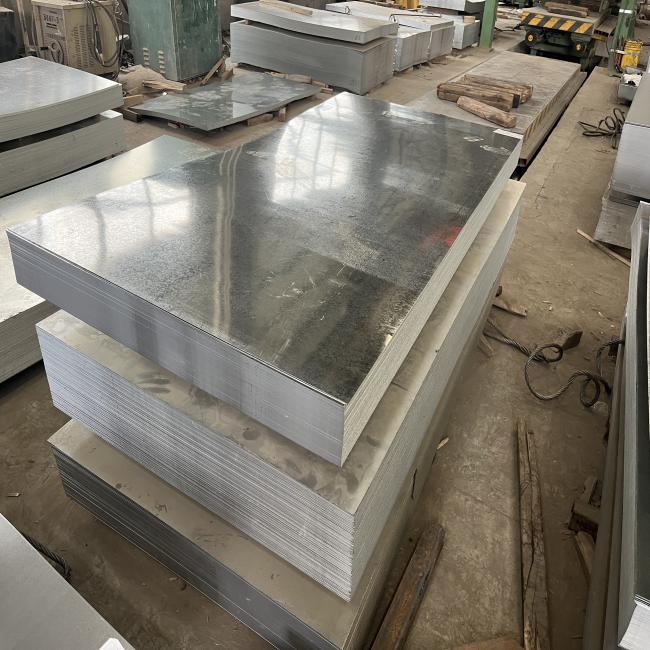

Gi Plain Sheet Details
Quality Control
Production Line
Gi Plain Sheet Application
Packing and Shipping
Certification

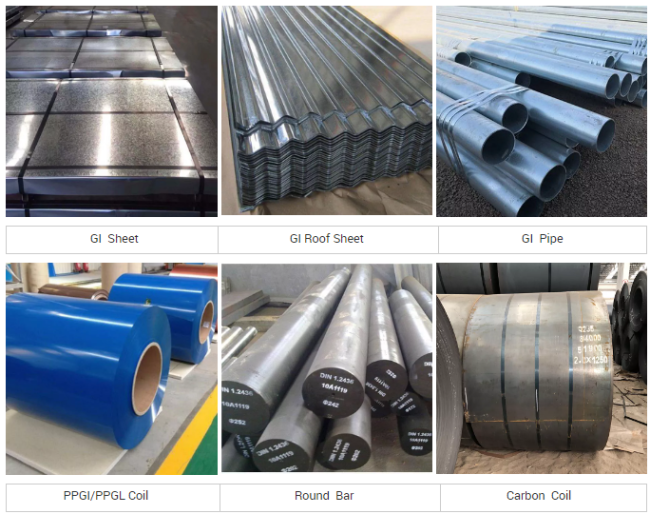

Recommend Products
Customer Feedback
Contact
