Hot Dip Gi Galvanized Steel Strip 0.8mm Z40g SGCC SGCH Width 30mm-850mm Regular Spangle
Hot Dip Gi Strip Galvanized Steel Strip 0.8mm Z40g SGCC SGCH Width 30mm-850mm Regular Spangle
Description
Galvanized Steel Strip (SGCC/SGCH) is a high-quality steel material that has undergone a galvanization process to enhance its corrosion resistance and durability. It is manufactured using a hot-dip galvanizing method, where the steel strip is immersed in a bath of molten zinc, forming a protective zinc coating on its surface.
The SGCC/SGCH designation refers to the specific standards or grades assigned to the galvanized steel strip. SGCC stands for "Steel Grade Commercial Quality," while SGCH stands for "Steel Grade Commercial Hard." These designations indicate the different mechanical and chemical properties of the galvanized steel, ensuring its suitability for various applications.
|
Product Name
|

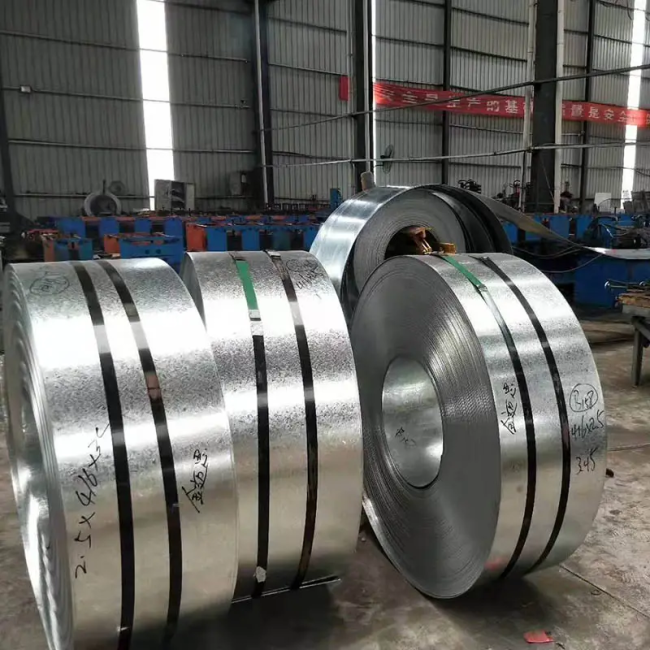

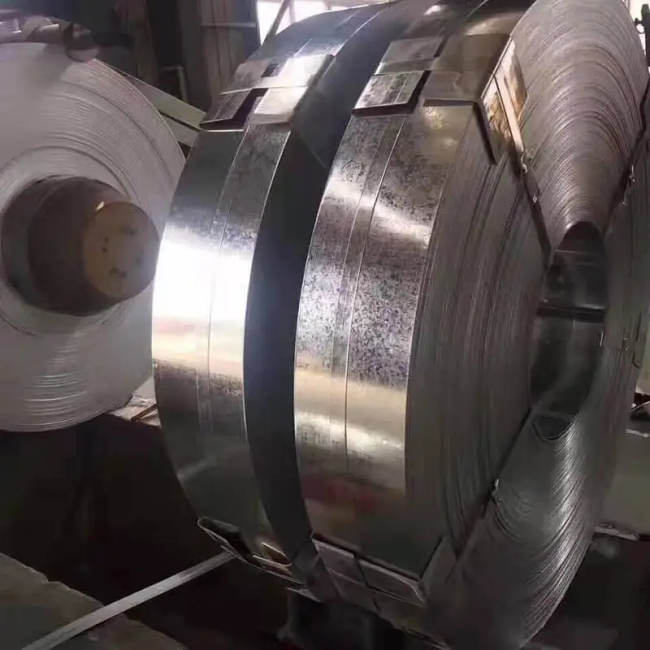

hot dip galvanized steel strip coil
|
|
Material
|
Q195,Q235,Q355,DX51D ,SGCC,SGCH
|
|
Function
|
Industrial panels, roofing and siding ,Shutter Door,refrigerator casing, steel prolile making etc
|
|
Available width
|
8mm~1250mm
|
|
Available Thickness
|
0.12mm~4.5mm
|
|
Zinc coating
|
30gsm~275gsm
|
|
Surface Treatment
|
Zero spangle,Minimized spangle,Regular spangle
|
|
Edge
|
Clean shear cutting , mill edge
|
|
Weight per roll
|
1~8 tons
|
|
Package
|
Inside water-proof paper ,outside steel coil protection , loading by fumigation wooden pallet.
|
| Chemical Composition | ||||||
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| SGCE/DX54D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| DX56D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| Structural | ≤0.20 | ≤0.60 | ≤1.70 | ≤0.10 | ≤0.045 | |
Details
Packing&Delievery
Our certifications

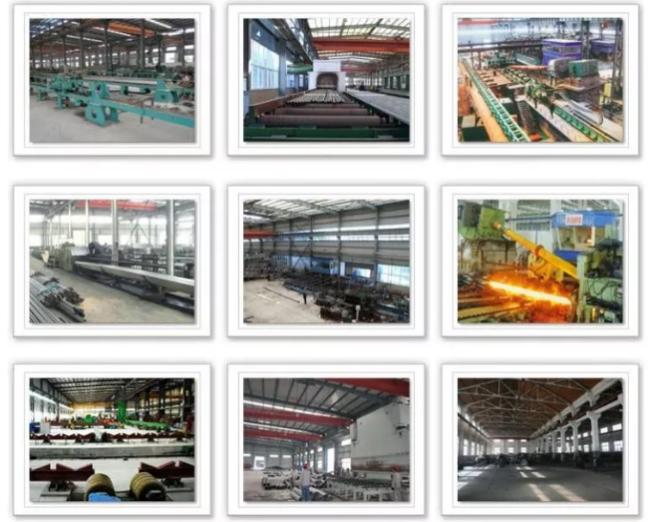

Our Warehouse
FAQ
1.Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge.but the customers have to pay the sample courier cost.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
Seamless Pipe,Precision Steel Pipe,Galvanized Pipe,Steel Plate,etc.
