Z40-Z275 Coated Galvanized GI Sheet Mid Hard SGCC DX51D ASTMA36 JISG3302
Z40-Z275 Coated Galvanized Steel Coil Galvanized GI Sheet Mid Hard SGCC/DX51D/ASTMA36/JISG3302
Description:
The galvanized steel coil that most construction workers use is often found in roofing applications. There, it is used as a protective cover or barrier over ridges and valleys in the roof system. The coil is rolled out flat on the roof, and bent either over the top of a ridge or into the crease in a valley, to protect the seam in the roof’s sheeting from exposure to the elements. It also creates a watershed for the runoff of rain and melting snow or ice.
ltem | SGCC Galvanized Plate Price Material Steel GI |
Grade | DX51D,SGCC,DX52D,ASTMA653,JISG3302 |
Thickness | 0.11-4.0mm |
Width | 600-1500 mm |
Zinc Coating | 40-275g/m2 |
Surface Treatment | Light Oil, Unoil,dry, chromate passivated, non-chromate passivated. |
Spangle | Regular spangle, minimal spangle, zero spangle, big spangle |
Coil Weight | 3-5 Tons or as customer requirements |
Coil ID | 508/610 mm |
| Chemical Composition | ||||||
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| SGCE/DX54D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| DX56D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| Structural | ≤0.20 | ≤0.60 | ≤1.70 | ≤0.10 | ≤0.045 | |
Product Details:

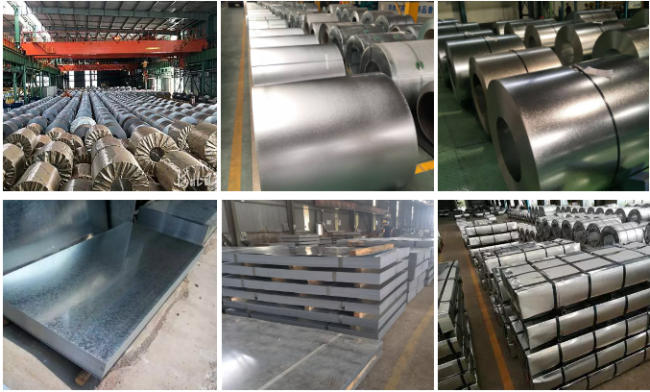

Packing&Shipping

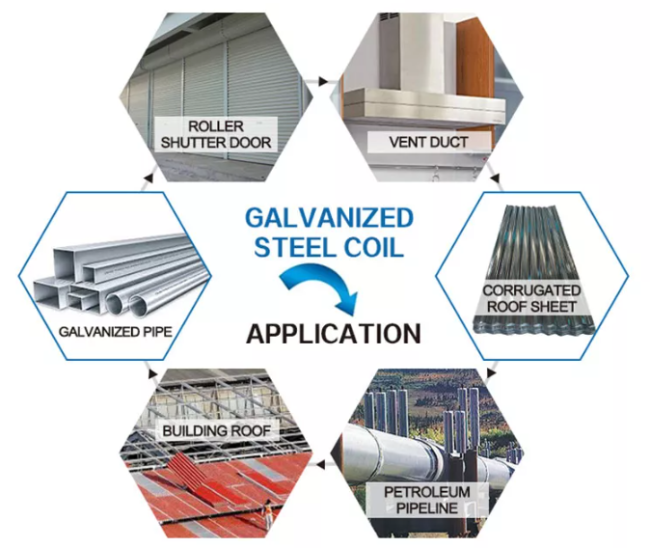

Application
FAQ:
A1:This will depend on the size and weight of your order and the method of shipping.
Q2: Do you have products in stock?
A2:There are 10000 tons stock for various size .Plsease inform us what model you need , we will send stock details to you .
A3:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
