Spangle Galvanized Steel Sheet Plate EN10142 1000-6000MM Z40-Z200g/M2
Spangle Galvanized Steel Sheet Plate EN10142 1000-6000MM Z40-Z200g/M2
Description:
The dictionary defines “spangle” as a glittering object. When the word spangle is used to describe the surface appearance of galvanized steel sheet, it means the typical snowflake-like or six-fold star pattern that is visible to the unaided eye.A spangle is the visible aesthetic feature of crystallites on the surface of a galvanized steel sheet. The spangle appears as either a snowflake or a six-pointed star pattern. This is produced on the steel sheet when certain alloying elements are either added to the liquid zinc or available as impurities.
| Product name | Galvanized Steel sheet |
| Standard | AISI, ASTM, EN, DIN, GB, JIS |
| Place of Origin | China |
| Brand Name | LIANZHONG,WU steel,MA steel, PAN steel,HAN steel |
| Type | Steel Coil, Steel Sheet,Steel bar,Steel pipe,Steel strip etc. |
| Technique | Hot Rolled |
| Surface Treatment | galvanized |
| Special Use | High-strength Steel Plate |
| Thickness | 0.1-6mm or according to your requirement |
| Width | 900-1800mm or according to your requirement |
| Popular width | 900mm, 914mm, 1000mm, 1200mm, 1220mm, 1250mm,1500mm,1800mm |
| Color Choice | Any of the available color |
| Processing Service | Bending, Welding, Decoiling, Cutting |
| Material | SGCC,SPGC,SGLD,PPGI,DX51D~DX54D,DC51D,S250GD,S550GD,Q195,Q235 etc. |
| Zinc coating | 40~275g/m2 |
| Monthly Output | 20000 tons |
| Hardness | Soft hard(60),medium hard(HRB60-85),full hard(HRB85-95) |
| Surface structure | Regular spangle, minimal spangle, zero spangle, big spangle |
|
Packing
|
Seaworthy export standard package, or according to your requirement |
| Chemical Composition | ||||||
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| SGCE/DX54D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| DX56D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| Structural | ≤0.20 | ≤0.60 | ≤1.70 | ≤0.10 | ≤0.045 | |
Product Shows:
Surface Treatment:
Product Testing:
Application:

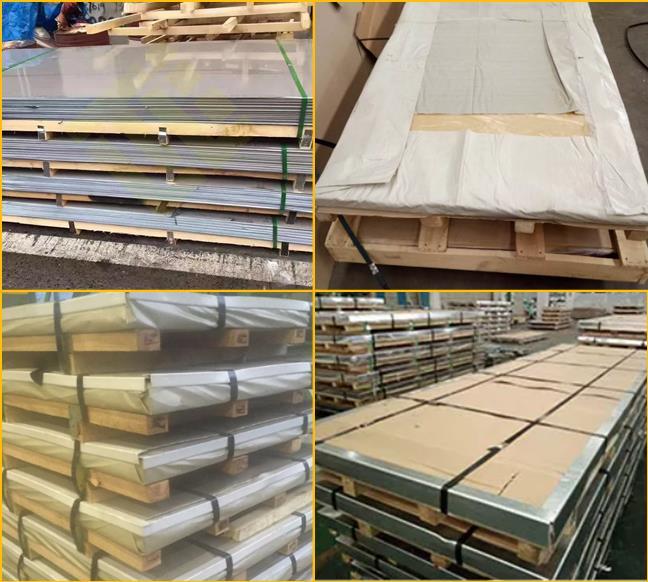

Packing and Shipping:
Certification:
FAQ:
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
