DX52D Z50 Electrogalvanized Steel Sheet Roof Wu Steel SGCC DC01 Q235 Q345
DX52D Z50 Electrogalvanized Steel Sheet Roof Wu Steel SGCC DC01 Q235 Q345
Description:
|
Product Name |
Electrogalvanized Steel Sheet |
|
Grade |
GI: JIS 3302-SGCC, SGCH(full hard) GL: JIS 3302-SGLC, SGLCH(full hard) |
|
Thickness |
0.12mm-0.8mm |
|
Width |
665mm-1000mm |
|
Length |
1000mm-5900mm |
|
Wave Height |
Depend on the model of the sheet |
|
Height Length |
Depend on the model of the sheet |
|
Raw Material |
GI(Galvanized steel sheet) GL(Galvalume steel sheet) |
|
Surface Treatment |
GI:Chromed(Cr 3+, 6+,0+) GL: Anti-Finger Print / Non Anti-Finger Print |
|
Zinc Coating |
GI: Z40gr/㎡-Z275gr/㎡ GL:AZ40 g/㎡ - AZ220 g/㎡ |
|
Spangle |
GI: Regular/Zero/Big/Minimized GL:Regular |
|
Yield Strength |
≥300MPa |
|
Bundle Weight |
2MT - 5MT |
|
Lifespan |
10-15 years, anti-corrosion |
|
Packing |
Standard export package, by steel pallet. Or according to customer's requirements |
|
Application |
Building material: roof, wall of industrial workshop, warehouse, moving house, container, etc |
|
Loading Port |
Tianjin Port / Qingdao port, China |
|
Remarks |
Insurance is all risks |
|
|
We accept the third party certificatation test |
| Chemical Composition | ||||||
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| SGCE/DX54D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| DX56D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| Structural | ≤0.20 | ≤0.60 | ≤1.70 | ≤0.10 | ≤0.045 | |

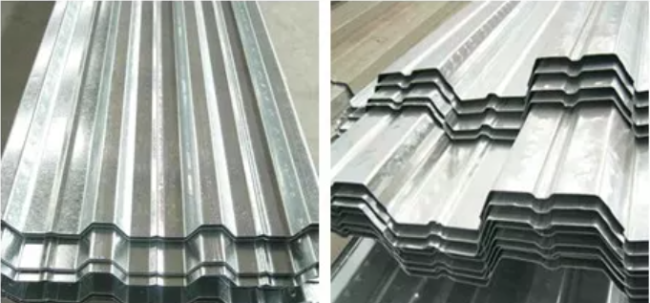

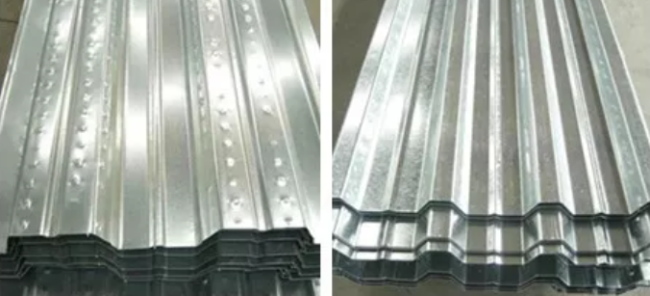

Product Details
Related Products:
Product Applications:
Certificates:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
