48v 100Ah 5 KWh Battery Power Storage Systems Wall Mounted Modular Design
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZETATECH
Product Description
48v 100Ah 5 kWh Bess Battery Energy Storage
Product Description
5wkh 48v battery pack 100Ah is a wall mounted small battery storage system that can be expanded in parallel.
The modular design of the battery cabinet can meet higher energy storage capacity.
You can easily add more modules to meet your higher needs.
Since this product is based on various standard modules, it is very flexible and can be adapted to a variety of different indoor environments.
This 48v 100Ah 5 kWh Battery Energy Storage has a professional bms, different from other mos bms, it is a bms with communication function specially designed for energy storage system.
In addition, It can provide the following basic protections:
5wkh 48v battery pack 100Ah is a wall mounted small battery storage system that can be expanded in parallel.
The modular design of the battery cabinet can meet higher energy storage capacity.
You can easily add more modules to meet your higher needs.
Since this product is based on various standard modules, it is very flexible and can be adapted to a variety of different indoor environments.
This 48v 100Ah 5 kWh Battery Energy Storage has a professional bms, different from other mos bms, it is a bms with communication function specially designed for energy storage system.
In addition, It can provide the following basic protections:
- Over voltage cut off
- Over temperature cut off
- Overcharge/discharge cut-off
- Overcurrent cut off
- Short circuit protection
Specifications of 48v 100ah Module:
| Model | Wall Mounted 5.2 kWh LiFePO4 48v battery bank | ||
|---|---|---|---|
| Capacity Energy | 5.2 kWh | ||
| Capacity Ah | 100 Ah | ||
| Suggested SOC | 5%~100% | ||
| Usable Capacity | 4.8kWh | ||
| Nominal Voltage | 51.2V | ||
| Operation Voltage | 46.4V – 57.6V | ||
| Maximum Charging/Discharging Current | 100A/100A | ||
| BMS | Robust Multi point monitoring BMS pre installed | ||
| Dimensions | 537x450x 165 mm | ||
| Scalable | yes | ||
| Certifications | MSDS, UN38.3, RoHS, IEC62619, UL | ||
| Communication | RS485, CAN or RS232 for hybrid inverters | ||
| Life Cycling (0.5C 25℃) | 5000 cycles | ||
| Warranty BTT | 5000 cycles | ||
| 10 years, whichever comes sooner | |||
| Operation Temperature | 0℃ ~ 45℃ | ||
| Storage Temperature | -20℃ ~ 35℃ | ||
| Weight | 50kG each pack | ||
| Dimensions | 537x450x 165 mm | ||
Our Main Office Building & Manufacturing Facilities

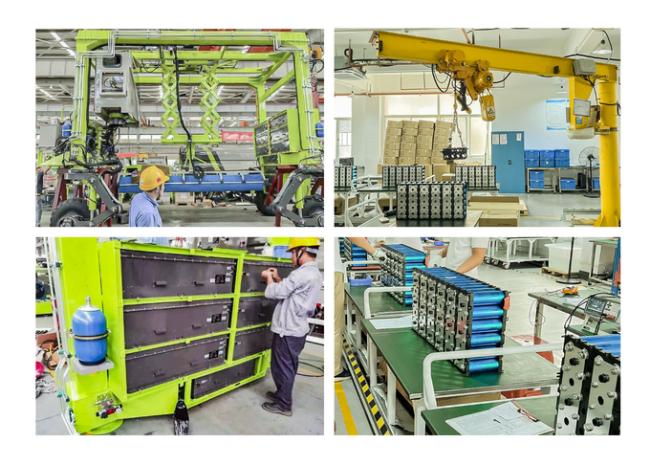

Workshops & Assembly Line
