Ergonom IC Diesel Forklift Truck Max.Travel Speed Full Loading 19 Km/H
Ergonom IC Diesel Forklift Truck Max.Travel Speed(full loading)19 km/h
1. Products Description
The MCLLROY 1 to 3 tonne IC engine forklift trucks have proven their effectiveness and legendary reliability over numerous years in the most challenging applications.
Several generations of forklift truck owners have cultivated a strong appreciation and dependence on these robust and highly capable machines.
MCLLROY continues to enhance and strengthen these exceptional qualities.
2. Specification
| Specification | FD20 |
| Rate Loading Weight | 2000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW |
| Transimission | Manual/Hydraulic auto 1R,0,1F |
| Fork Length | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid |
| Front Tire | 7.00-12-12PR |
| Rear Tire | 6.00-9-10PR |
| Overhead Guard Height | 2140 mm |
| Overall Length(with/without fork) | 3523/2453 mm |
| Overall Width | 1160 mm |
| Overall Height (Mast extended/lowered) |
3000mm: 4220/2060 mm |
| Total Weight | 2660 KG |
| Front Overhang | 448 mm |
| Free Fork Height | 100 mm |
| Angle of Mast inclination (forward /backward) |
6°/12° |
| Load Center | 500 mm |
| Ground Clearance | 120 mm |
| Wheel Base | 1600 mm |
| Wheel Track | 970/970 mm |
| Minimum Turning Radius | 2220 mm |
3. Details and Advantages
The Plus Cab panel cabin provides exceptional visibility through laminated glass and comprehensive protection from weather elements.
The clear-view construction offers exceptional visibility through the mast, fork carriage, and overhead guard, promoting maximum operator safety and productivity.
With a low noise level of just 78 dBA at the operator's ear and minimal vibration from the powertrain, comfort is increased and fatigue reduced.
The low-noise air intake is directly connected to the intake filter for smooth airflow and quiet operation.
Fully hydrostatic steering is responsive, precise, and effortless for the operator, requiring minimal maintenance.
The fully hydrostatic steering system, combined with a small and responsive steering wheel, ensures precise and effortless maneuvering.
4. Optional Configurations
| 1 | Solid tires (the Advanced brand or equivalent) |
|||
| 2 | Automatic transmission(1-4.5Ton) | |||
| 3 | Sideshift | |||
| 4 | Thicken Toyota seat (no shock absorber) | |||
| 5 | Toyota seat (with shock absorber) | |||
| 6 | Fork positioner | |||
| 7 | Closed cab | |||
| 8 | Double front tires(1-5Ton) | |||
| 9 | Normal double mast:3300-4000mm. | |||
| 10 | Full free double mast:3000-4000mm. | |||
| 11 | Full free triplex mast:4500-7500mm. | |||
| 12 | Fork length:920/1370/1550 mm | |||
| 13 | Extension fork | |||
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.

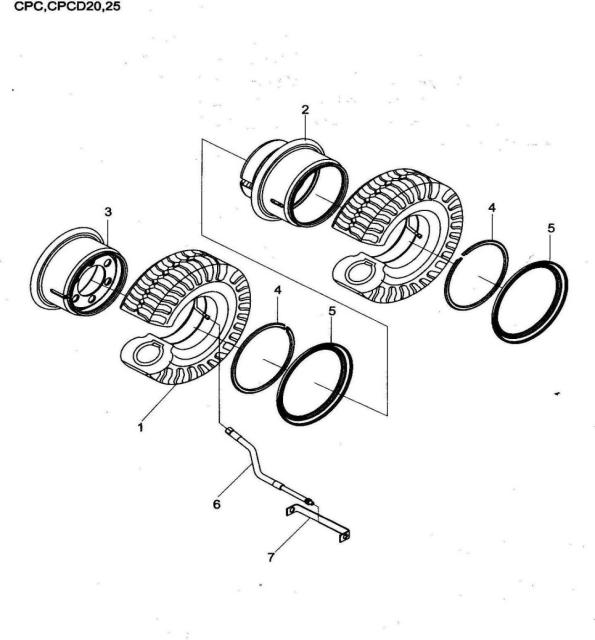

6. Explosive View Of Main Parts
| No | Part No | Description | Q'ty |
| 1 | FD20(25)-R0000 | Tyre | 4 |
| FD20(25)-R0001 | Tyre | 4 | |
| A | FD20(25)-R0002 | Wheel rim subassembly(lnc2.3.4 | 2 |
| B | FD20(25)-R0003 | Wheel rim subassembly(lnc2.3.5 | 2 |
| 2 | FD20(25)-R0004 | Wheel rim | 2 |
| 3 | FD20(25)-R0005 | Wheel rim | 2 |
| 4 | FD20(25)-R0006 | Lock ring | 4 |
| 5 | FD20(25)-R0007 | Snap ring | 4 |
| 6 | FD20(25)-R0008 | Pipe | 2 |
| 7 | FD20(25)-R0009 | Bracket | 2 |
