Articulated Mini Wheel Loader Construction Vehicles Front End With Mechanical Joystick
Articulated Frame Mini Front End Wheel Loader, Mechanical Joystick Compact Front End Wheel Loader
1. Products Description
we need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.
MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.
2. Specification
| MODEL | MCL 936 | |
| ENGINE | Engine Model | Yun Nei 4100 Supercharged |
| RPM | 2400 | |
| Rated Power | 65 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 4880 kg |
| Rated Load | 2500 kg | |
| BUCKETS | Bucket Capacities | 1.1 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT 280 torque converter |
|
| Alex | Middle hub | |
| Axle Base | 2220 mm | |
| Brake | Disc Brake | |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 6 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 410 mm |
| Wheel Base | 1510 mm | |
| Reach at Max.Dump Height | 3450 mm | |
| Dump Reach | 600 mm | |
| Overall Length - With Bucket | 5600 mm | |
| Overall Width | 2060 mm | |
| Overall Height | 2860 mm | |
| OPERATING SPECIFICATIONS | Tyre Size | 1670-20 |
| Breakout Force | ≥ 50 KN | |
| Joystick | Machanical | |
| Min. turning radius | ≤ 7000 mm | |
| STANDARD EQUIPMENT | Hour meter | Yes |
| Tool Box | Yes | |
| Dual Hight&Low Speed Handle | Yes | |
| OPTIONAL EQUIPMENT | Air Conditioning/heater | Option |
| Quick Change | Option | |

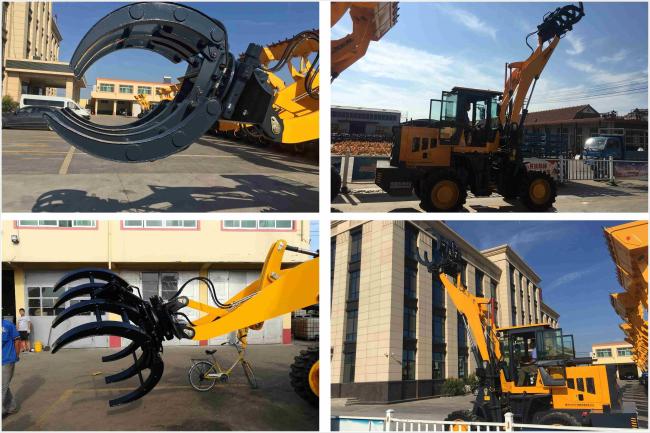

| Multifunctional Attachment | Option | |
| Hydraulic Pilot | Option | |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Strong driven force ,low fuel consumption ,high economic benefits.
2) Transmission:Split torque converter,not high temperature,easy to repair.
3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.
4) Hydraulic system:Fully optimized layout of pipes Waterproof connectors.

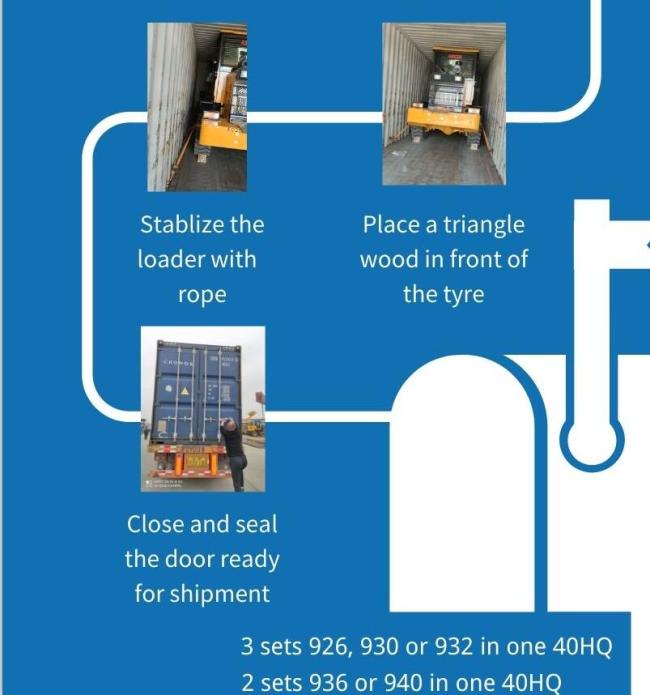

4.Delivery
In addition to stability, we also need to consider as many packs as possible. Since the outbreak of the COVID-19, ocean freight prices have increased significantly, and it is common to see increased costs due to increases in ocean freight rates.
In order to save the buyer's transportation cost, MCLLROY has optimized and improved the size of the loader according to the size of the container. On the premise of reducing customer disassembly procedures as much as possible, install as many as possible.
3 Units 918/926/930/932 can be loaded in a 40HQ container
2 Units 936/940 can be loaded in a 40HQ container
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
