Mini 1.5 Ton Wheel Loader , Bucket Front End Loader 3200mm Dumping Height
Shovel Bucket 1.5 Ton Wheel Loader 3500kg Operating Weight
1. Products Description
In general, for construction machinery, the four most important factors are: price, quality, operation, and after-sales.
The amount of shovel material and the stability of the loader depend on the cooperation of the loader frame.
The flexibility and light operation mainly depends on the hydraulic system of the loader.
The low failure rate depends on quality as well as the after-sales service.
MCLLROY wheel Loaders are widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularity applied to the narrow space for the loading operation of stone,sand and other construction materials.
2. Specification
| Model | Metric Unit | MCL930 ZL930 |
|
| Rated power | kw | 42 | |
| Rated Load | kg | 1600 | |
| Bucket Capacity | m³ | 1.0 | |
| Max.Dump Clearance | mm | 3200 | |
| Overall Size (L*W*H) | mm | 5500*1620*2750 | |
| Operating Weight | kg | 3500 | |
| Engine Model | YN490 | ||
| Engine speed/min | rpm | 2400 | |
| Dump Reach | mm | 1350 | |
| Gear Box | CVT | ||
| Axle | Small hub | ||
| Frame | Articulated | ||

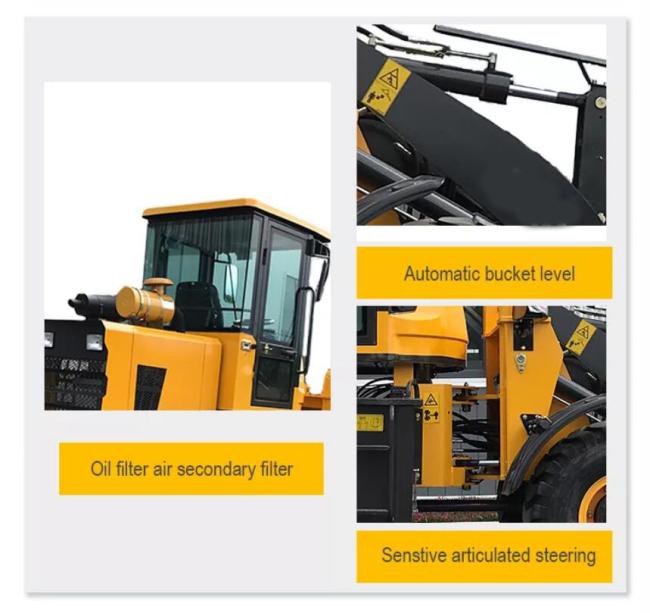

3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Tire:38% Rubber content tire,Wider off-road tire
2) Frame:The thickened frame has strong impact resistance and remarkable passing performance, enabling the loader to pass unimpeded in the difficult working environment.
3) Cab:Large space in the H-series cab The low-noise and shock-absorbing cab
4) The brake caliper is exposed to facilitate servicing.
5) The bucket with high wear-resistant material even is used for stone.
4.Delivery
The most important thing for delivery is the stability. The climate at sea is unpredictable. If the reinforcement is improper, it will cause damage to the machine during transportation. For example, if the lifting boom is not properly reinforced, it will cause the boom to fall, smash the cab, and smash the glass.
The shipping process for MCLLROY is as follows:
1.Tool box put in the loader.
2. Seat and control panel warp in PVC.
3. Warning lights put in the loader.
4. Drive the loader inside the Container.
5. Stabilize the loader with heavy steel rope.
6. Fasten triangles wood in bottom of tires.
7. Close and seal the door ready for shipment.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
