Compact Articulating Mini Loader , Front Loader With Bucket 1600KG Rated Load

Price Negotiable

Price: $ 4000-6000 /Unit

MOQ: 1 Set

Delivery Time: 5-8 working days

Brand: MCLLROY

Product Description

Compact Articulated Wheel Loader Laser Cutting Machine For Bumper Cab Steel Plate Cut

1. Products Description

If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.

We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.

2. Specification

Model	Metric Unit	MCL930 ZL930
Rated power	kw	42
Rated Load	kg	1600
Bucket Capacity	m³	1.0
Max.Dump Clearance	mm	3200
Overall Size (LWH)	mm	550016202750
Operating Weight	kg	3500
Engine Model		YN490
Engine speed/min	rpm	2400
Dump Reach	mm	1350
Gear Box		CVT
Axle		Small hub
Frame		Articulated
Bucket Length	m	1.9
Tire		20.5-16
Joystick		Mechanical
Brake Type		Air brake

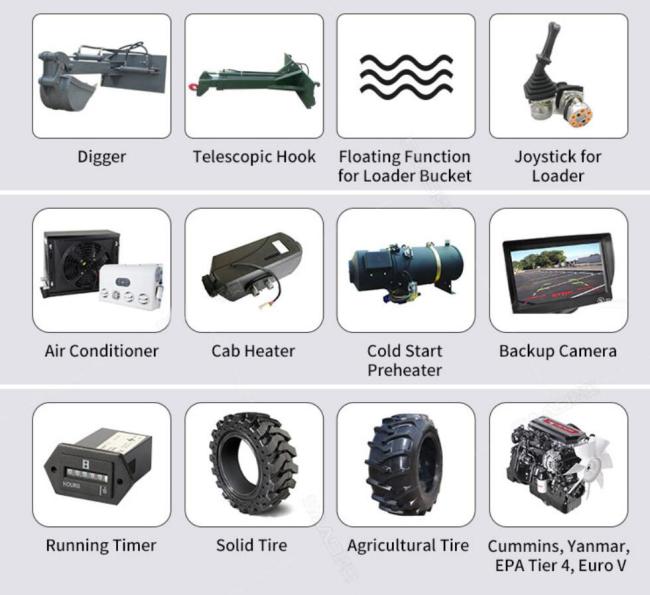

Air conditioner		Option
Hydraulic pilot		Option
Running hour meter		Option

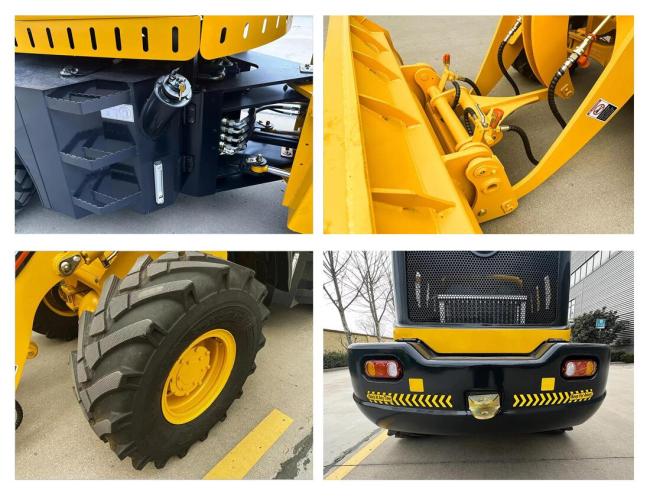

3. Details and Advantages

The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.

1) Tire:38% Rubber content tire,Wider off-road tire

2) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.

3) Cab:Optional ROPS/FOPS cab :flame retardant materials and EU-certified glass are used in the cab, offering higher safety.

4) Complete safety signs.

5) Large steps on the side of the frame also enhance accessibility.

4. Production lines:

A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection

Steel plate cutting:

The cutting of the steel plate is closely related to the drawing design, workers' technique and cutting equipment.

Normally there are three types of cutting machines, you can see from the pictures here.

Frame cutting is used for iron plates over 40mm thick.

While plasma cutting is for steel plate that in between 20-40mm.

Laser cutting is for steel plate between 8-20mm.

It is great for cutting that requires high precision. For example, cutting steel components for bumper, hood, and driver's cab. The advantages of laser cutting are: low temperature, so the plate is not likely deformed; the disadvantage is that it consumes a lot of power.

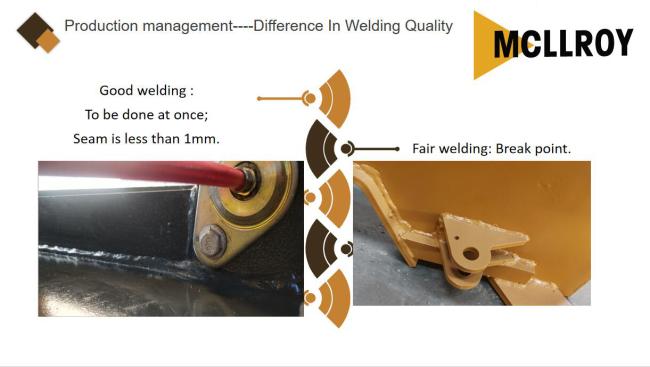

When the steel sheet is uneven or the cutting speed is not steady, a melting point or break-point will form; so during the cutting process, workers need to go back and forth to check.
