Multifunctional Small Wheel Loaders For Agricultural Construction OEM
Front End Shovel Wheel Loader Multifunctional Applications In Construction And Agricultural
1. Products Description
If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.
We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.
2. Specification
| MCL 936 | |
| Engine Model | Yun Nei 4100 Supercharged |
| RPM | 2400 |
| Rated Power | 65 kW |
| Emissions | EU Stage II |
| Operating Weight | 4880 kg |
| Rated Load | 2500 kg |
| Bucket Capacities | 1.1 m³ |
| Max. Travel Speed | 28 km/h |
| Gear Box | CVT 280 torque converter |
| Alex | Middle hub |
| Axle Base | 2220 mm |
| Brake | Disc Brake |
| Hydraulic Cycle time - lift | ≤ 6 s |
| Min. Ground Clearance | 410 mm |
| Wheel Base | 1510 mm |
| Reach at Max.Dump Height | 3450 mm |
| Dump Reach | 600 mm |
| Overall Length - With Bucket | 5600 mm |
| Overall Width | 2060 mm |
| Overall Height | 2860 mm |
| Tyre Size | 1670-20 |
| Breakout Force | ≥ 50 KN |
| Joystick | Machanical |
| Min. turning radius | ≤ 7000 mm |
| Hour meter | Yes |
| Tool Box | Yes |
| Dual Hight&Low Speed Handle | Yes |
| Air Conditioning/heater | Option |
| Quick Change | Option |
| Multifunctional Attachment | Option |
| Hydraulic Pilot | Option |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Domestic famous engines ,green/turbocharged/inter-cooled engine.
2) Transmission:Wet multi-plate clutch automatic transmission ,torque converter ,stable performance ,famous brand in China.
3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.
4) Hydraulic system:Precision hydraulic cylinder and the fourth generation hydraulic transmission system give large breakout force for earth-moving work.
4.Attachment

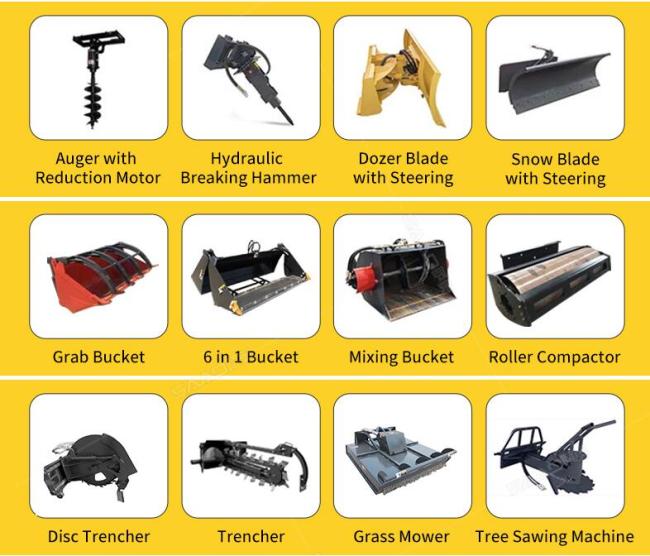

MCLLROY compact wheel loader can be equipped with optional quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass fork, wood fork, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade etc.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
