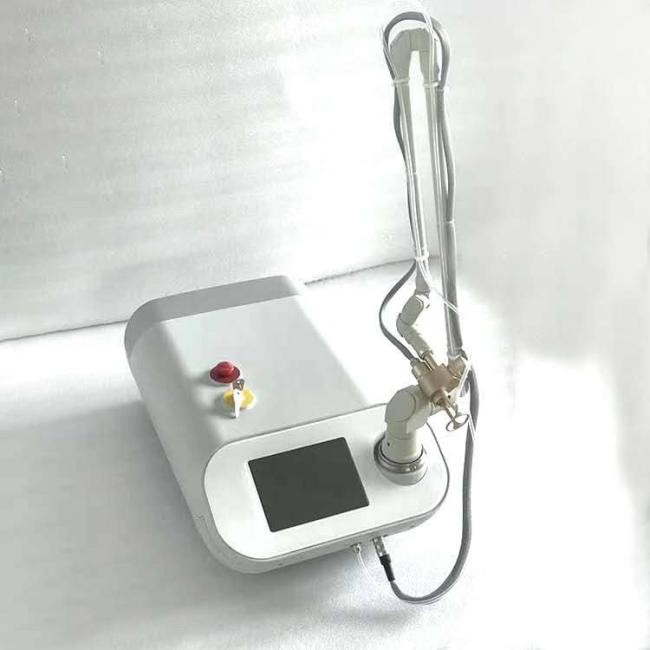

CE Portable Co2 Laser For Private Stretch Scanning Head Laser Equipment
10600nm European 4d skin resurfacing facial anti-aging firming lifting wrinkles women private postpartum repair CO2 laser
| Wavelength: | 10600nm |
| Laser apparatus: | Sealed off laser device simulated by direct current |
| Optical beam quality: | TEM00 |
| Output power: | 30w |
| Spot size: | 0.02~0.05mm2 |
| Aiming beam: | Red semiconductor laser (635nm, less than 5mw) |
| Beam transport device: | Articulated arm with 7-joint and balance weight |
| Working mode: | Continuous operation |
| Output Mode: | Continuous, single pulse, interval pulse and super pulse |
| Scan scope: | Max 20mmx20mm |
| Scan graphics: | Circle, triangle, square, rectangle,hexagon, ellipse, line |
| Scanning Mode: | Random , Normal and Midsplit scan |
| Scanning speed: | More than 10m/s |
| Energy: | 1- 30W |
| Pulse width | 0.1-5.0ms |
| Distance: | 0.1-2.6mm |
| Input power: | 450VA |
| Cooling system: | Water and air circulation |
| Environment temperature: | 5℃~40℃ |
| Relative humidity: | Less than 80% |
| Power: | 220V, 50HZ |
| Warranty time: | 1 year |
| Package size: | 61*51*126CM |
| Touch screen: | 8.4inch |
Fractional co2 laser machine portable
1.co2 laser normal type:pulsed laser cutting,surgery
2.fractional laser type scanning scar removal,acne treatment,skin rejuvenation
3.vaginal kits system: vaginal tightening,rejuvenation.whitening
Theory:
CO2 Fractional laser is the most advanced conceptual fractional CO2 skin peeling laser system with a wavelength of 10600nm. In addition to its fine skin-peeling effect, it can effectively penetrate the laser beam into the dermis.
It is the most beneficial skin recovery system and can achieve the long-term effect of collagen remodeling as well as improvement of aged skin conditions due to exposure to light.
It can be very safely applied to various types of scars compared to the existing 100% total layer skin peeling lasers (CO2 or Er:YAG).
In addition, it does not require a long period of recovery or side effects.
It can remodel various types of deformed scars and skin tissue very effectively.
Principle
Fractional co2 laser is a revolutionary advances base on fractional photothermolysis theory,and shows a unique advantages in a short period of time.fractional laser generate tiny beam of light like arrangement, acting on the skin to form a plurality of three-dimensional columnar structure tiny thermal damage zone, called microscopic treatment zones, MTZ. Diameter is 50-150μm, depth 500-1000μm, difficult from traditional exfoliative laser produce sheet heat injury,around every MTZ has whole normal tissue, Keratinocytes can quickly crawl,MTZ healed quickly, without leave,exfoliative treatment risks.This machine adopts CO2 laser technology and precise control of the scan technology, using the CO2 laser’s heat penetrating action, in the guidance of the scan precise scanning, 0.12mm diameter thin minimally invasive aperture was formed by lattice-shaped on the skin. Skin in the effect of the laser energy and heat,wrinkle or scar tissue was uniform gasified instantaneous and formed minimally invasive hole as the center of the micro-heating zone, so as to stimulate the skin synthesize a large number of new collagen tissue. and thus start the tissue repair, collagen rearrangement of a series of body's natural healing mechanisms. Fresh collagen random regenerate, make the treated area of skin becomes smooth, firm, elastic, pores shrink, wrinkle reduction , bags under the eyes disappear, the pigmentation disappear, superficial scar calm, skin texture and skin color gradually improved significantly.
During the treatment, the skin tissue water absorb laser energy, gasification formed of a plurality of columnar structure small damage region, slight damage zone collagen contraction hyperplasia, and no effect skin tissue can be used as the thermal diffusion region to avoid the side effects of thermal damage, promote the healing of the skin faster at the same time, to achieve skin tightening, skin rejuvenation and improve scars, shrink pores purpose.
Fractional laser targeted tissue is water, so treated skin color is not selective, another advantage of fractional laser is the original energy
intensive spot dispersed into the tens to hundreds of small focal spot, only for the minimally invasive treatment of skin lesions,
does not affect the normal skin tissue, the patient's pain greatly reduced, also reduce the side effects of laser therapy,treatment and maintenance of patients are more precise ,safe and more secure.
2.Application
•Fractional skin treatment has been used effectively to:
•Reduce lines and deep wrinkles on the face
•Civatte
•Tighten skin on the face and neck
•Change the appearance of scars
•Improve skin tone around eyelids, jowls and neck
•Rejuvenate sun-damaged skin and improve texture
•Remove pigmented lesions
•Improve tone and texture on the chest, arms, and hands
