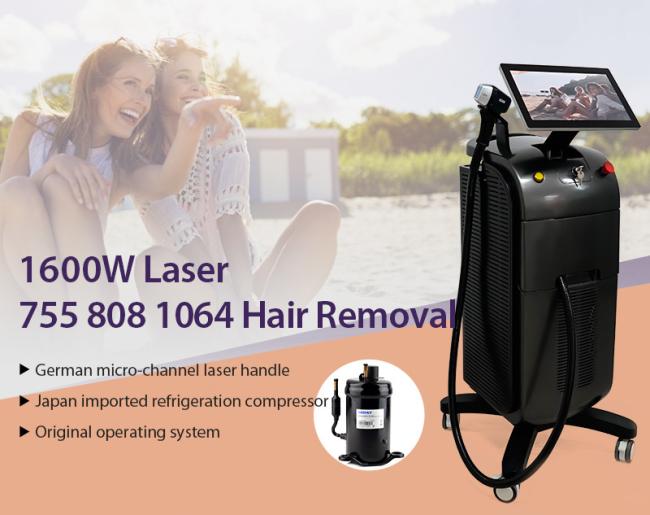

Multifunction 755/808/1064nm 1600w Diode Laser Hair Removal +Pico Laser Tattoo Removal Machine
2022 Newest OEM 755/808/1064nm Laser Hair Removal Machine with three wavelengths
Features
The DL-808 is a device that can convert electricity, light, and heat into a continuous high-energy laser. DL-808 integrates laser technology, electronic technology and computer technology, and performs excellently in permanent hair removal.
DL-808 hair removal principle: diode laser hair removal is the safest and fastest at present. However, the main chromophore for laser hair removal is melanin, which is present in the hair shaft. Second, melanin residing in the inner and outer root sheaths can also act as secondary chromophores. Based on the principle of selective photothermolysis, through a specific wavelength, it penetrates the epidermis and enters the dermis layer, and the light energy is absorbed and converted into heat energy, inhibiting the hair follicle tissue, and producing a photothermal effect. It absorbs laser energy in the melanin-rich hair follicle, and the surrounding tissue absorbs less or no energy to inhibit the melanin of the follicle and remove the hair.
At the same time, the excess hair is removed almost painlessly without damaging the surrounding tissue; ultimately, permanent hair removal is achieved.
| Type | Laser hair removal equipment |
| Wavelength | 755nm, 808nm, 1064nm |
| Working frequency | 1~10hz |
| Energy density | 1-120j/cm2 |
| Spot size | 15cm×15cm, 20*25cm, 25 x31mm |
| Output power | 600w/1200w |
| Pulse width | 5ms~400ms |
| voltage | 220V |
Laser hair removal machine has 3 wavelengths 755nm, 808nm and 1064nm. with different laser properties. It can directly penetrate into the hair follicle, and the light and heat are absorbed by melanin, which is decomposed and excreted through metabolism to achieve accurate and effective effects.
At the same time, the contact surface cooling technology adopted by Sapphire Dual-ChillTip can eliminate the thermal effect caused by light energy, which greatly improves the treatment performance and safety.
application:
1. Work on every hair color from black to gray
2. Treats All Skin Types From White to Black
3. Painless and shorter treatment time
4. Effective and safe permanent hair removal treatment
The laser hair removal machine adopts a new technology that combines 3 wavelengths, as follows:
* 755nm laser: used to remove fine hair, effective for light-colored hair, such as lips around the hair, eyebrows, etc.
*808nm Laser: Used for almost most hair removal.
*1064nm Laser: For dark hair, the energy can penetrate deep into the skin, so it is very effective for brown hair and dark skin patients.
A
Advantages of Laser Hair Removal Machine:

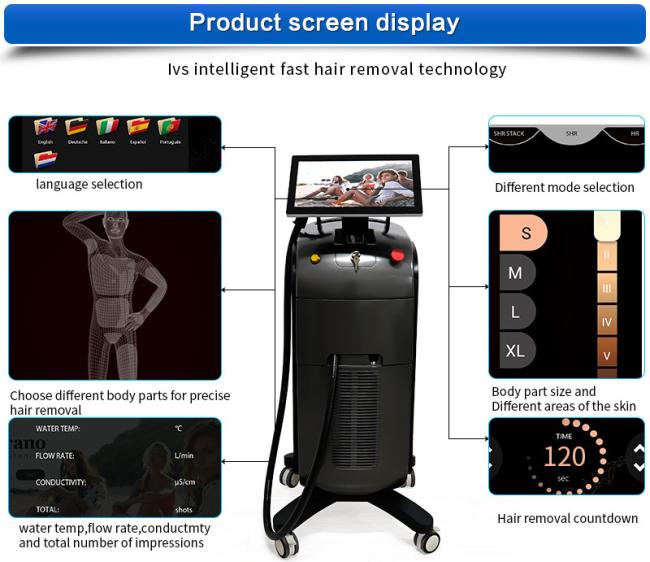

1. Language: choose different
2. Gender: Male or female
3. Different treatment areas: forehead, face, underarm, legs
4. Voice Control During Therapy
5. Recommended Parameters for Each Skin Type and Region
6. Safety: the relationship of energy, pulse width and frequency
808 Theory of Hair Removal
808 Freezing Point is based on selective solar thermal dynamics. By adjusting the wavelength, energy and pulse width of the laser, it reaches the hair follicle through the skin, absorbs thermal energy and decomposes the hair follicle tissue, and regenerates the hair. The quick-freezing hair removal system adopts cryoprotection, the temperature can reach -5℃, which solves many difficulties. Meanwhile, safe, fast and permanent technology.
The range of application
Lip, axilla, arm ministry, leg, bikini line etc.
The period of hair removal
Hair removal has 3 stages: growth, degradation, resting stage. It is best effect of treatment when the hair is growing.In the period of growth stage,The pigment in hair follicle will be absorbed completely.In that time, the follicle is weakest, the effect of hair removal is best.You will see the effect when you have 2 times treatment.Not only can remove the extra hair, but also it is applied for changing the shape of beard.
The process of hair removal first time
1.consulting
Can visit to our company, the beautician will make plan for you according to your specific situation.
2.Confirming the skin
The beautician will make a confirmation for your skin, the density of hair.
3.Painting cooling gel
Clear the hair, and paint the cooling gel.
4.shining
Customer should wear goggle, whole treatment only use 3 minutes.
5. cooling
Clear away the cooling gel, using cooling bag.
6.Calming down
Paint the beauty fluid, and protect the skin.
| wavelength | 755nm 808nm 1064nm | OEM customized service |
| Working frequency | 1~10hz | Maximum frequency 20 Hz |
| Energy density | 1-120j/cm2 | 1-150j/cm2 optional |
| Handle piece cooling | TEC+sapphire | Sapphire size customizable |
| TEC cooling | 12V 6A | TEC power customizable |
| Spot size | 20mm×15mm or 25 x31mm | Spot size and window of light customizable |

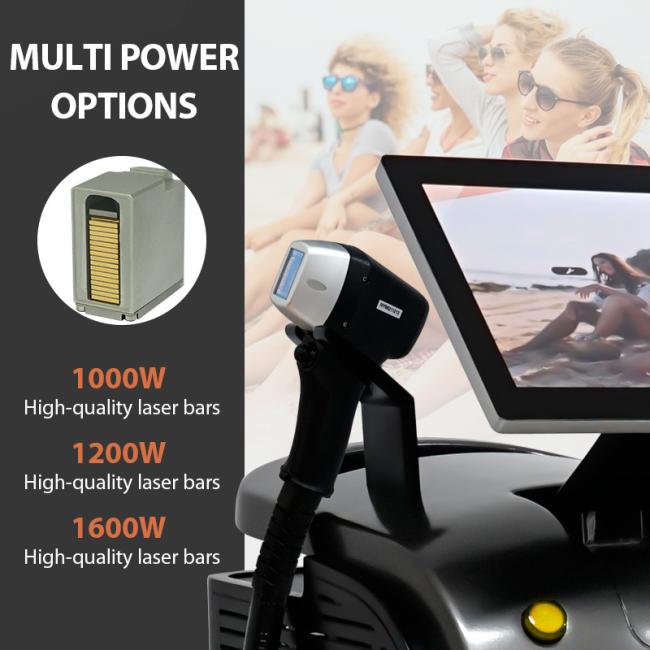

| Output power | 6PCS 900W | Laser power available |
| Laser bars | Germany laser Jenoptik,150W/piece | |
| Pulse width | 5ms~400ms | 0~1000ms customizable |
| Output mode | Pulse output | Pulse output |
| Language | Standard English | customizable |
| display | 8’ color touch screen | 10.4’ optional |
| Protective temperature | 55℃ interface select | customizable |
| Water pump | DP-60 diaphragm rods 12V | imported pump optional |
| Flow sensor | At least 3.5L/min | |
| Water level switch | Test water level | |
| Cooling system | 240×120cooling line(2pc),18 pcs channel | Compressor plan,TEC plan |
| Cooling fan | 4pcs fans,speed 3150r/min | 12v fans |
| Case material | ABS shell/metal shell | customizable metal shell |
| Inter structure | White zinc hob/color zinc hob | customizable |
| Water tank volume | vertical3.6L/table type 2.5L | customizable |
| Environmental moisture | < 80% | < 80% |
| Environment temperature | Air conditioning room,temperature≤35℃ | |
| voltage | 220V | 110Vavailable |
