Stackable Energy Storage Batteries 51.2v 100ah Lifepo4 Pack
Price:
negotiated price
MOQ:
10
Delivery Time:
5-14 work days
Brand:
OCELL
Product Description

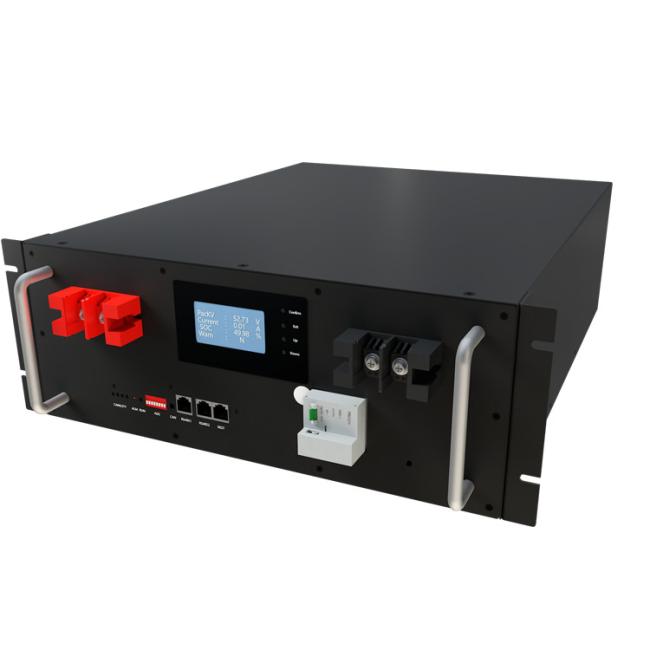

Energy Storage Batteries Stackable 51.2V 100Ah LiFePO4 Battery Pack
The 51.2V 200Ah battery system is applicable to home energy storage, small or medium sized shopping mall energy storage,which uses 32 pieces of 3.2V 50Ah battery cells in 16s2p configuration.Built-inSeplos smart BMS suppor tmaximumof 16packs of battery in paralleltoachieve high ercapacity.The system can not becon nected in series.And do not mixusea ocell battery with anyother battery brands or models.
O'Cell is committed to providing high-quality solar inverter solutions that help to power a greener future. With its advanced technology,flexible design, and user-friendly interface, [Inverter Model] is the ideal choice for anyone looking to harness the power of the sun and make the switch to clean, renewable energy.
Solar Inverter Characteristics
1.Battery and ambient temperature detection: 4 battery temperature sensors, 1 ambient temperature sensor, and 1 MOS temperature sensor, with a deviation of ±2°C.
2.Battery capacity and cycles: Complete a full charge/discharge cycle to set the actual capacity. The remaining capacity of the battery is monitored with a capacity estimation accuracy within 5% deviation. Additionally, charge and discharge cycle times as well as full charge and discharge cycle times are configurable
3.Intelligent cell balancing: The charging and static balancing strategies can be set flexibly to effectively extend the service life.
4.Communication port: PC or smart front-end can monitor battery pack data, control operation and set parameters through commands such as telemetry, remote signaling, remote adjustment, and remote control. The communication protocol conforms to the requirements of YD/T 1363.3, and realizes cascade communication at the same time.
5.Communication interface: PC or intelligent front-end can monitor battery data, control operation and set parameters through telemetry, remote signaling, remote adjustment, remote control and other commands. The communication protocol meets the requirements of YD/T 1363.3 and realizes cascade communication
6.History data recording, saving and reading: Battery condition and alarm information will be recorded and save in real time when there is abnormality in the battery. A maximum of 500 history failure data can be stored.
7.Battery management system parameter setting: battery management system parameters, including cell battery over
voltage/under voltage, battery total voltage over voltage/under voltage, charge and discharge over current, battery high/low temperature, battery capacity, working mode, charge and discharge limit current, can be set in the battery monitoring system.
voltage/under voltage, battery total voltage over voltage/under voltage, charge and discharge over current, battery high/low temperature, battery capacity, working mode, charge and discharge limit current, can be set in the battery monitoring system.
8.Working mode: charging and discharging current limiting, constant voltage output, direct output and other working modes can be set in the monitoring system
9.Multiple protection functions: hardware protection, battery protection, high and low temperature protection, output short circuit protection, etc.
|
Items
|
Specifications
|
|
Rated energy(kWh)
|
5.12KWh
|
|
Configuration
|
2P16S
|
|
Nominal Voltage(V)
|
51.2V
|
|
Working Voltage(V)
|
42V~58.4V
|
|
Nominal Capacity(Ah)
|
100Ah
|
|
Rated charge/discharge Current(A)
|
50A@25±2℃
|
|
Maximum charging current
|
100A@25±2℃
|
|
Maximum discharge current
|
100A@25±2℃
|
|
Working Temperature
|
0～40℃(Charge) -20～40℃(Discharge)
|
|
Humidity(%)
|
5~95%
|
|
Altitude Limited(m)
|
0-3000m
|
|
Dimension(mm)
|
544.7×432.5×166mm
|
|
Storage temperature and humidity
|
-10℃~35℃(Within one month of storage)
25±2℃(Within three months of storage) 65%±20%RH |
|
weight
|
47kg±3kg
|
|
cycle life
|
4800 cycles @25℃
50A charge and discharge current 70% standard capacity 90% DOD |
|
Communication mode
|
CAN&RS485
|
1. What is an energy storage battery?
An energy storage battery is a device that stores electrical energy in the form of chemical energy and releases it as electrical energy when needed. It is used to store surplus energy generated from renewable sources or during low-demand periods for later use.
2. What are the common types of energy storage batteries?
Common types of energy storage batteries include lithium-ion, lead-acid, nickel-cadmium, and flow batteries. Lithium-ion batteries are the most widely used in residential and commercial applications.
3. Why are energy storage batteries important?
Energy storage batteries play a crucial role in stabilizing the electrical grid, managing energy supply and demand, and increasing the efficiency of renewable energy sources by storing excess energy for use during peak demand periods.
4. How long do energy storage batteries last?
The lifespan of an energy storage battery varies depending on the type and usage but typically ranges from 5 to 20 years.
Lithium-ion batteries often have a lifespan of 10-15 years.
5. Can energy storage batteries be used for off-grid applications?
Yes, energy storage batteries are commonly used in off-grid and remote locations to provide a reliable source of electricity when there is no access to the main grid.
6. Are energy storage batteries environmentally friendly?
Energy storage batteries can be environmentally friendly, especiallywhen used with renewable energy sources. However, it's essential to consider the environmental impact of battery production and disposal.
2. What are the common types of energy storage batteries?
Common types of energy storage batteries include lithium-ion, lead-acid, nickel-cadmium, and flow batteries. Lithium-ion batteries are the most widely used in residential and commercial applications.
3. Why are energy storage batteries important?
Energy storage batteries play a crucial role in stabilizing the electrical grid, managing energy supply and demand, and increasing the efficiency of renewable energy sources by storing excess energy for use during peak demand periods.
4. How long do energy storage batteries last?
The lifespan of an energy storage battery varies depending on the type and usage but typically ranges from 5 to 20 years.
Lithium-ion batteries often have a lifespan of 10-15 years.
5. Can energy storage batteries be used for off-grid applications?
Yes, energy storage batteries are commonly used in off-grid and remote locations to provide a reliable source of electricity when there is no access to the main grid.
6. Are energy storage batteries environmentally friendly?
Energy storage batteries can be environmentally friendly, especiallywhen used with renewable energy sources. However, it's essential to consider the environmental impact of battery production and disposal.
