Dual Extruder Industrial FDM 3D Printer Large Size 1000x1000x1000mm
Price:
Negotiation
MOQ:
1set
Delivery Time:
7-10 days
Brand:
CreatBot
Product Description
Dual Extruder Industrial FDM 3D Printer Large Size 1000x1000x1000mm
Product Overview
CreatBot F1000
AFFORDABLE AND RELIABLE LARGE-SCALE 3D PRINTER
* Dual high temperature hot ends
* Heated and enclosed build chamber (heats to 60°C)
* Enormous build volume of 1000x1000x1000 mm
* Large 9,7” touch display
* Heated material chamber, choose between 45° or 65°C
* Resume print function
* Camera control technology
Details Images

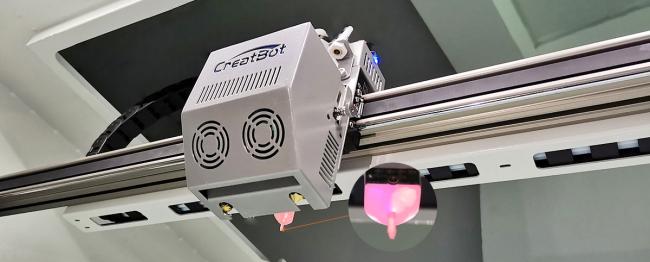

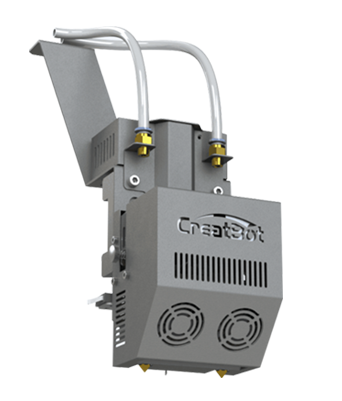

Smart Dual Extruders 420 ℃
F1000 is embedded with new smart dual-extruder kit hotend temperature up to 420 ℃, it is able to print not only huge PLA prototype
with fastest speed, but also ABS, PC, Nylon, Carbon Fiber, Flexible and more high performance material for direct application. The
dual-hotend is easy to maintain and affordable to replace.
with fastest speed, but also ABS, PC, Nylon, Carbon Fiber, Flexible and more high performance material for direct application. The
dual-hotend is easy to maintain and affordable to replace.
Print with precision and speed
We exclusively research and develop the extruder feeding system to support high-speed printing, and accuracy can reach up to 0.1
mm, it allows to extrude filament steady without block.
Precision up to: 0.1 mm Speed up to: 200 mm/s
mm, it allows to extrude filament steady without block.
Precision up to: 0.1 mm Speed up to: 200 mm/s
Steel construction for maximum stability
Fully Enclosed Chamber
Hot Chamber + Filament Drying Room
Hot Chamber + Filament Drying Room
The whole-steel body not only ensure the stability during printing but also greatly extend working life. The optimization and
cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3d printers with
whole-steel body have been working for 9 years and more than 30,000 hours.
cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3d printers with
whole-steel body have been working for 9 years and more than 30,000 hours.
High accurate linear guide system
The accurate linear rail structure can print models in accuracy high reach to 4~5 times higher than the other ordinary optical
axis printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.
axis printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.
Huge print area
The F1000 is a industrial printer at its best. With this printer you can make prototypes and functional prints at a size of
1000x1000x1000 mm, that’s 1x1x1 meters! That is a volume that is 60 times higher than most regular printers.
1000x1000x1000 mm, that’s 1x1x1 meters! That is a volume that is 60 times higher than most regular printers.

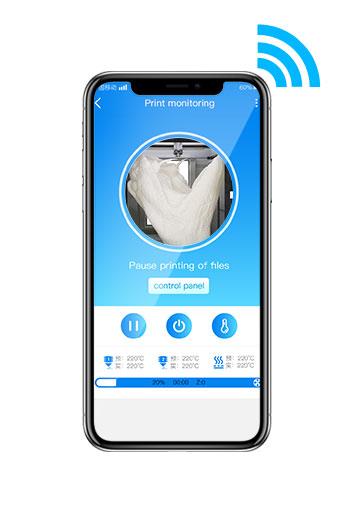

On board camera App control
The F1000 can sometimes work with print that keeps on going for several hundred of hours. In cases like that it nice to have a
camera that lets you monitor the progress from a distance.With the app you can monitor your printer, and keep an aye on the temperature, print progress and even pause and stop the current
print job if something goes wrong.
camera that lets you monitor the progress from a distance.With the app you can monitor your printer, and keep an aye on the temperature, print progress and even pause and stop the current
print job if something goes wrong.
Auto leveling platform
Use of 64 points through the BL-Touch probe to save the level of platform flatness data at the initial, through the Z axis
intelligent compensation table height in the printing process to achieve fully automatic leveling.
intelligent compensation table height in the printing process to achieve fully automatic leveling.
Outage Restored & Filament Detection
The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when
power off suddenly. It will continue to print from the last stopped point after power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.
power off suddenly. It will continue to print from the last stopped point after power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.
PRODUCT SPECIFICATIONS
|
Technical Specs
|
|
|
|
|
||||
|
Build Volume
|
1000*1000*1000mm
|
Screen
|
9.7-inch full color touch screen independent operating system (multi-language
|
|
||||
|
Print Resolution
|
0.04mm-0.4mm
|
Camera control
|
Camera remote monitoring and real-time control of the printing process
|
|
||||
|
Filament Diameter
|
1.75mm
|
Positioning Precision
|
X Y axis 0.01mm, Z axis 0.0025mm
|
|
||||
|
Number of Nozzles
|
Dual Extruder
|
Extruder
|
Directly Drive
|
|
||||
|
Print Speed
|
10-150mm/s
|
Machine Construction
|
Fully enclosed hot chamber
|
|
||||
|
Nozzle Diameter
|
0.4mm (0.3~1.0mm optional)
|
Bed Leveling
|
Manually/Automatic
|
|
||||
|
Filament Compatibility
|
ABS,PLA,Carbon Fiber,PETG,Nylon,PC,etc.
|
Software Bundle
|
Creatware, Simplify3D, Cura, Slice3r
|
|
||||
|
Nozzle Max. Temperature
|
420℃
|
Operating Systems
|
Win7/8/10
|
|
||||
|
Chamber Temperature
|
60℃
|
Print File Type
|
STL, OBJ, AMF, Gcode
|
|
||||
|
Platform Max. Temperature
|
100℃
|
Product Dimensions & Weight
|
1740*1300*1920mm 550kg
|
|
||||
|
Filament Dry Room Temperature
|
45 ℃/65 ℃
|
Packing Size & Weight
|
1910*1510*2205mm 640kg
|
|
||||
