Realiable and amazing.
The conqueror of all kinds of plastics.
SLA SLS PA ABS 3D Rapid Prototype FDM 3D Printing Machine High Accuracy
Price:
Negotiation
MOQ:
1set
Delivery Time:
7-10 days
Brand:
CreatBot
Product Description
SLA SLS PA ABS 3D Rapid Prototype FDM 3D Printing Machine High Accuracy
![]()
![]()
![]()
![]()
![]()
HE LEADER OF ULTRA HIGH PERFORMANCE 3D PRINTER
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Product Overview
CreatBot PEEK-300 High-temperature 3D Printer Peek 3D Printer Industrial 3D Printer Large Surgery Medical Peek Material Printer
Large Print Size 300*300*400mm
* Prints up to 500°C with dual extruder
* Heated build plate 200°C
* Heated build chamber 120°C
* Water cooled system
* Fully enclosed chamber
* Automatic and manual bed levelling
* 4,3” touch screen
* HEPA air filtration
* Heated build plate 200°C
* Heated build chamber 120°C
* Water cooled system
* Fully enclosed chamber
* Automatic and manual bed levelling
* 4,3” touch screen
* HEPA air filtration
* Large Build volume: 300 x 300 x 400 mm
Print worry-free, knowing we're here for you. 1-Year with Infinite Customer Support.1-year warranty;World-class customer support; CE/ROHS safety certification to allow you to print overnight without anxiety.
Details Images

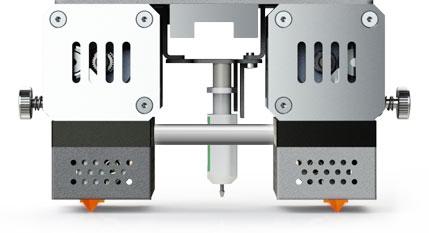

Hotend max. 500°C with dual extruder
Heated build plate 200°C
Common but necessary.
Base of printing big models with no warping.
Base of printing big models with no warping.
PCB aluminum + PEEK print board
Hot Chamber 120°C
Outstanding and important.
The protector of no cracking printing.
The protector of no cracking printing.
Triple Heat Isolation
Triple heat isolation is made of double insulation chamber, advanced insulation materials and vacuum double PC boards. It is
guarantee of ultra performance and safety.
guarantee of ultra performance and safety.
Water Cooling System
Cooling system is one of the important parts to constitute the whole thermal system. It is made of
(1) liquid cooling. Circulating liquid can be used effectively for a long time.
(2) Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.
(1) liquid cooling. Circulating liquid can be used effectively for a long time.
(2) Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.
Material Performance Comparison Chart
Engineering Plastics: PLA, PC, ABS, PA6, PETG, PVDF, POM-C, PP, TPU
High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF
Ultra performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc
High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF
Ultra performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc
HEPA Air Filtration
The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental
protection which is more suitable for house, school, office space.
protection which is more suitable for house, school, office space.
Outage Restored & Filament Detection
The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when
power off suddenly. It will continue to print from the last stopped point after power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.
power off suddenly. It will continue to print from the last stopped point after power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.
PRODUCT SPECIFICATIONS
|
Technical Specs
|
|
|
|
|
||||
|
Build Volume
|
300*300*400mm
|
Cooling
|
Air pump cooling & water cooling
|
|
||||
|
Print Resolution
|
0.04mm-0.4mm
|
Platform
|
PCB aluminum + PEEK print board
|
|
||||
|
Filament Diameter
|
1.75mm
|
Positioning Precision
|
X Y axis 0.01mm, Z axis 0.0025mm
|
|
||||
|
Number of Nozzles
|
Dual Extruder
|
Extruder
|
Directly Drive
|
|
||||
|
Print Speed
|
10-150mm/s
|
Machine Construction
|
Fully enclosed hot chamber
|
|
||||
|
Nozzle Diameter
|
0.4mm (0.3~1.0mm optional)
|
Bed Leveling
|
Manually/Automatic
|
|
||||
|
Filament Compatibility
|
Engineering Plastics: PLA, TPU, PC, ABS, PA6, PETG, TPU
High temperature Material: PEI (ULTEM), PP Ultra-performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc. |
Software Bundle
|
Creatware, Simplify3D, Cura, Slice3r
|
|
||||
|
Nozzle Max. Temperature
|
500℃
|
Operating Systems
|
Win7/8/10
|
|
||||
|
Chamber Temperature
|
120℃
|
Print File Type
|
STL, OBJ, AMF, Gcode
|
|
||||
|
Platform Max. Temperature
|
200℃
|
Packing Size
|
820*720*1080mm
|
|
||||
|
Direct Annealing Temperature
|
0~400℃
|
Weight
|
130kg(Pallet)
|
|
||||
