CreatBot High Temperature 3D Peek Printer Carbon Fiber Peek 3d Printing Machine
Price:
Negotiation
MOQ:
1set
Delivery Time:
7-10 days
Brand:
CreatBot
Product Description
CreatBot High Temperature 3D Peek Printer Carbon Fiber Peek 3d Printing Machine
Product Overview

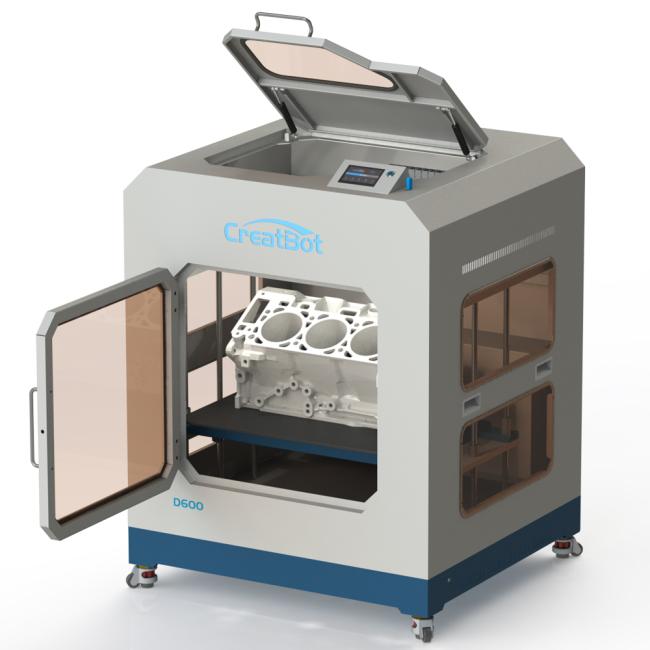

CreatBot Industrial 3D Printer Large D600PRO 600*600*600mm
3D Printing Equipment Dual Extruder 3D Printer
1. Nozzle Temprature Up To 420 ℃
2. Servo Motors With Gear Reduction with High accuracy and stability
3. Fully Enclosed Chamber
4. Accurate Linear Guide Rail
5. Hot Air Chamber 70°C
6. 4.3" touch screen, more easy to operate
7. Filaments Drying Room
8. HEPA Air Filtration
9. Outage Restored & Filament Detection
10. Auto Leveling Platform
Details Images

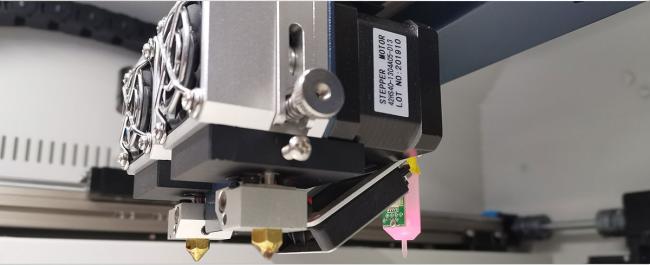

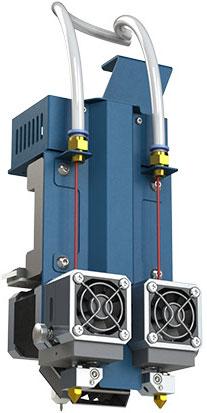

Nozzle Temprature Up To 420 ℃
D600 and D600 Pro equiped with the 4th generation 1.75mm dual extruders and hotends. The left extruder equipped with 260°C hotend,
It is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right extruder 420°C hotend is made of martensite
steel, which is able to print high performance materials. The dual hotend is replaceable, which provide more possibility on your
application.
It is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right extruder 420°C hotend is made of martensite
steel, which is able to print high performance materials. The dual hotend is replaceable, which provide more possibility on your
application.
High Precision
We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to
0.05mm, it allows to extrude filament steady without block.
Precision up to: 0.05 mm
Speed up to: 200 mm/s
0.05mm, it allows to extrude filament steady without block.
Precision up to: 0.05 mm
Speed up to: 200 mm/s
Servo Motors With Gear Reduction
High Accuracy: closed-loop control of position, speed and torque; overcome the problem of lossing step. No layer shift.
Good high-speed performance.
Stability: timeliness, fast response, no inertia, no delay.
Comfort: heat and noise are significantly reduced.
Good high-speed performance.
Stability: timeliness, fast response, no inertia, no delay.
Comfort: heat and noise are significantly reduced.
Fully Enclosed Chamber
The whole-steel body not only ensure the stability when printing but also greatly extend the usage period. The fully enclosed
chamber can block all external interference. Also this frame can reduce noises, at the same time to provide constant temperature,
so that the model won't deform. The first batch of CreatBot 3D printers have been working for 9 years and more than 30,000 hours.
chamber can block all external interference. Also this frame can reduce noises, at the same time to provide constant temperature,
so that the model won't deform. The first batch of CreatBot 3D printers have been working for 9 years and more than 30,000 hours.

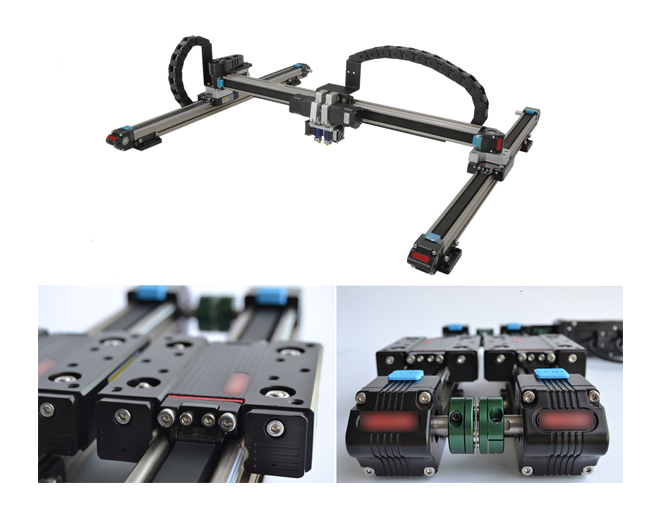

Accurate Linear Guide Rail
The accurate linear rail structure can print models in accuracy high reach to 4~5 times higher than the other ordinary optical
axis printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.
axis printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.

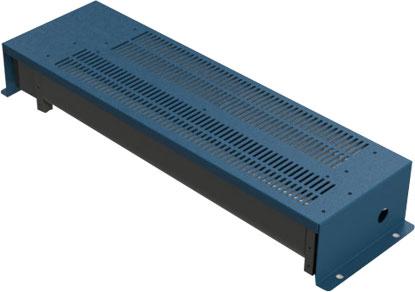

Hot Air Chamber 70°C
Hot air chamber can provide constant room temperature so that model won’t deform when printing.(D600 Pro available only)

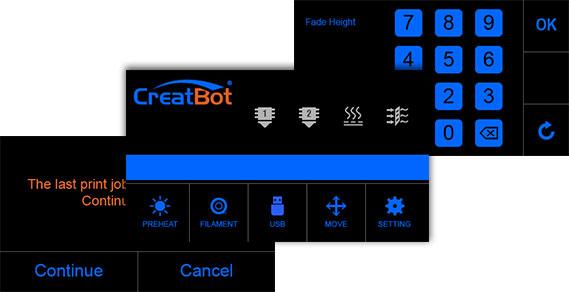

Easy Touch Screen
The printer has a 4.3" touch screen, more easy to operate. We also provide One-Key to preheat, print, home as well as other
shortcut keys.
shortcut keys.

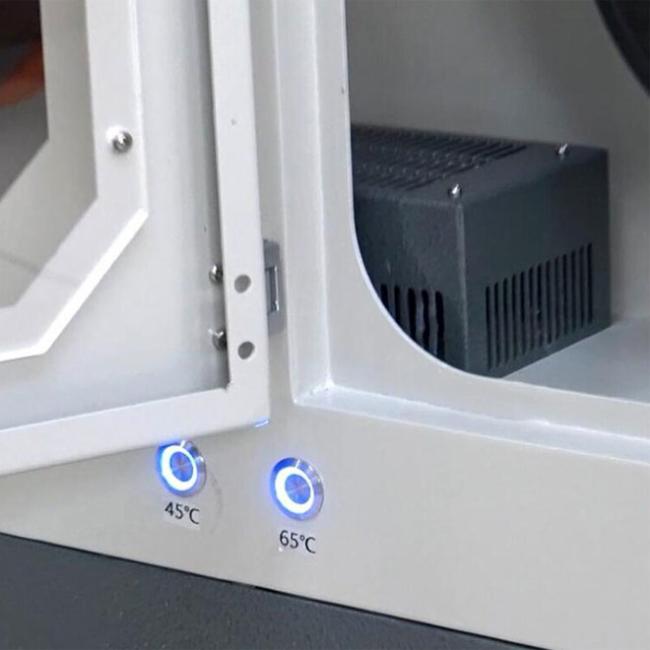

Filaments Drying Room
The function is able to dry filaments like Nylon,PC,ABS, which with high water absorption, 45°C and 65°C chamber temperature
available.(D600 Pro available only)
available.(D600 Pro available only)

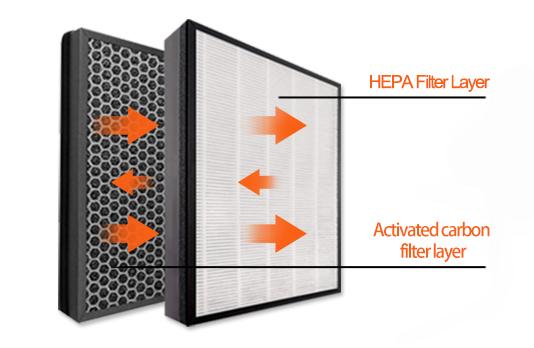

HEPA Air Filtration
The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental
protection which is more suitable for house, school, office space.
protection which is more suitable for house, school, office space.
Outage Restored & Filament Detection
The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when
power off suddenly. It will continue to print from the last stopped point after power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.
power off suddenly. It will continue to print from the last stopped point after power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.

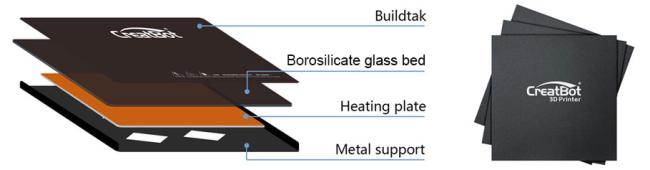

Efficient Platform
The platform surface is attached with the 3D printing special stickers, and the printer has vertical thermal conductivity so that
can support high thermal efficiency. You can set the parameters to turn off the hot bed automatically after the specified number
of layers.
can support high thermal efficiency. You can set the parameters to turn off the hot bed automatically after the specified number
of layers.
Use of 25 points through the BL-Touch probe to save the level of platform flatness data at the initial, through the Z axis
intelligent compensation table height in the printing process to achieve fully automatic leveling.(D600 Pro available only)
intelligent compensation table height in the printing process to achieve fully automatic leveling.(D600 Pro available only)
PRODUCT SPECIFICATIONS
|
Technical Specs
|
|
|
|
|
||||
|
Print Technology
|
Fused Deposition Modeling(FDM)
|
Screen
|
4.3'' Touch Screen with Multi-language
|
|
||||
|
Build Volume
|
600*600*600 mm
|
Max. Power
|
1000W~4000W
|
|
||||
|
Number of Nozzles
|
Double
|
Storage Media
|
USB Disk
|
|
||||
|
Layer Resolution
|
0.05 mm
|
Connectivity
|
USB
|
|
||||
|
Filament Diameter
|
1.75 mm
|
Build Plate
|
Borosilicate glass bed
|
|
||||
|
Max. Nozzle Temperature
|
420 ℃
|
Software Bundle
|
CreatWare, Simplify 3D, Cura, Slice 3r, etc
|
|
||||
|
Max. Bed Temperature
|
100 ℃
|
Supported File Types
|
STL,OBJ,AMF
|
|
||||
|
Max. Chamber Temperature
|
70 ℃
|
Operating Systems
|
Win7/8/10, MacOS
|
|
||||
|
Filaments Drying Temperature
|
45 ℃/65 ℃
|
Product Dimensions & Weight
|
915*845*1085mm 125kg
|
|
||||
|
Max. Power
|
1000W~4000W
|
Packing Size & Weight
|
940*1010*1320mm 165kg(Pallet)
|
|
||||

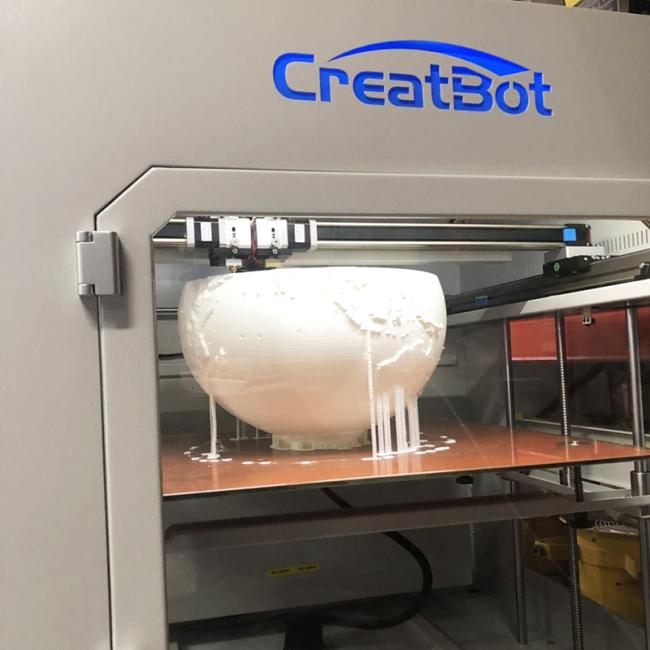

Customer Photos
FAQ
1. Q:Are you a factory or trading company?
A:We are a factory which specialized in manufacturing 3d printer. Welcome to visit our factory.
2. Q:Whether your 3d printers are your own brand or OEM?
A:It's our own brand ,and we also provide OEM service.
3. Could you print our test samples ?
A:Yes,of course. We have confidence to show you good prints.
4. Q:How can I buy?
A:You can pay on our online store directly or contact with our sales to order.
5. Q:What’s the Payment term?
A:Payment term: T/T before shipment.
We accept payment via the PayPal /Western union/TT.
6. Q:How about your transport packing? Is it possible to damage the printer during the transportation?
A:We have rich experience on international transportation. All the packing are extra thickness carton filling with protective 5 cm
honeycomb board, PE foam and waterproof membrane.Almost no damage happened during transportation until now.
7. Q:What's the shipping way?
A:Ship by DHL, FedEx, EMS, UPS, by air, by sea...etc. as you required.
8. What's the handing time?
A:It usually takes about 1-2 days after we receive your payment.
9. Q:What's the delivery time?
A:The package will arrive at your home about 5-10 working days by fast shipping .
If any reasons to make delivery delayed, our sales will contact with you immediately .
10. Q:Could we be your distributors in our countries?
A: Yes, of course. Welcome to be our distributors. So far, we have many resellers all over the world.
A:We are a factory which specialized in manufacturing 3d printer. Welcome to visit our factory.
2. Q:Whether your 3d printers are your own brand or OEM?
A:It's our own brand ,and we also provide OEM service.
3. Could you print our test samples ?
A:Yes,of course. We have confidence to show you good prints.
4. Q:How can I buy?
A:You can pay on our online store directly or contact with our sales to order.
5. Q:What’s the Payment term?
A:Payment term: T/T before shipment.
We accept payment via the PayPal /Western union/TT.
6. Q:How about your transport packing? Is it possible to damage the printer during the transportation?
A:We have rich experience on international transportation. All the packing are extra thickness carton filling with protective 5 cm
honeycomb board, PE foam and waterproof membrane.Almost no damage happened during transportation until now.
7. Q:What's the shipping way?
A:Ship by DHL, FedEx, EMS, UPS, by air, by sea...etc. as you required.
8. What's the handing time?
A:It usually takes about 1-2 days after we receive your payment.
9. Q:What's the delivery time?
A:The package will arrive at your home about 5-10 working days by fast shipping .
If any reasons to make delivery delayed, our sales will contact with you immediately .
10. Q:Could we be your distributors in our countries?
A: Yes, of course. Welcome to be our distributors. So far, we have many resellers all over the world.
