Realiable and amazing.
The conqueror of all kinds of plastics.
Dual Extruder High Temperature Resin 3d Printer High Precision Multicolor
Price:
Negotiation
MOQ:
1set
Delivery Time:
7-10 days
Brand:
Creatbot
Product Description
Dual Extruder High Temperature Resin 3d Printer High Precision Multicolor
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
|
Printing
|
|
Temperature
|
|
||
|
Build Volume
|
300*300*400mm
|
Nozzle Max. Temperature
|
500℃
|
||
|
Print Resolution
|
0.04mm-0.4mm
|
Chamber Temperature
|
120℃
|
||
|
Filament Diameter
|
1.75mm
|
Platform Max. Temperature
|
200℃
|
||
|
Number of Nozzles
|
Dual Extruder
|
Direct Annealing Temperature
|
0~400℃
|
||
|
Print Speed
|
10-150mm/s
|
Mechanical
|
|
||
|
Nozzle Diameter
|
0.4mm (0.3~1.0mm optional)
|
Cooling
|
Air pump cooling & water cooling
|
||
|
Filament Compatibility
|
Engineering Plastics: PLA, TPU, PC, ABS, PA6, PETG, PVDF, TPU
|
Platform
|
PCB aluminum + PEEK print board
|
||
|
|
High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF, POM, PP
|
Positioning Precision
|
X Y axis 0.01mm, Z axis 0.0025mm
|
||
|
|
Ultra-performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc.
|

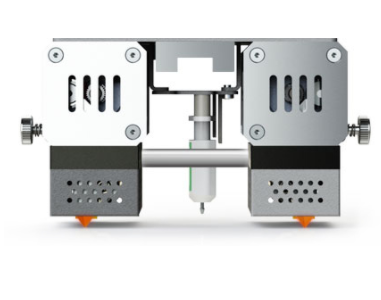

Extruder
|
Directly Drive
|
||
|
Software
|
|
Machine Construction
|
Fully enclosed hot chamber
|
||
|
Software Bundle
|
Creatware, Simplify3D, Cura, Slice3r
|
Bed Leveling
|
Manually/Automatic
|
||
|
Operating Systems
|
Win7/8/10
|
Electrical
|
|
||
|
Print File Type
|
STL, OBJ, AMF, Gcode
|
Input Power
|
200V~240V, 20A
|
||
|
Special Function
|
|
Max. Power
|
3000W
|
||
|
Outage Restored
|
Save data when power is off
|
Screen
|
4.3'' full color touch screen, multi-language
|
||
|
Filament Detection
|
Pause printing when filament run out
|
Print Method
|
USB Connectivity/USB Disk
|
||
|
Direct Annealing System (DAS)
|
Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and
cracking printing of big size functional materials. |
Size & Weight
|
|
||
|
Heat insulation
|
Triple heat insulation
|
Machine Size
|
650*600*750 mm
|
||
|
Emergency stop switch
|
Support emergency stop
|
G.W
|
100 kg
|
||
|
High temperature accessories
|
High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing.
|
Packing Size
|
820*720*1080mm
|
||
|
|
|
N.W
|
130 kg
|
||
Nozzle 500°C

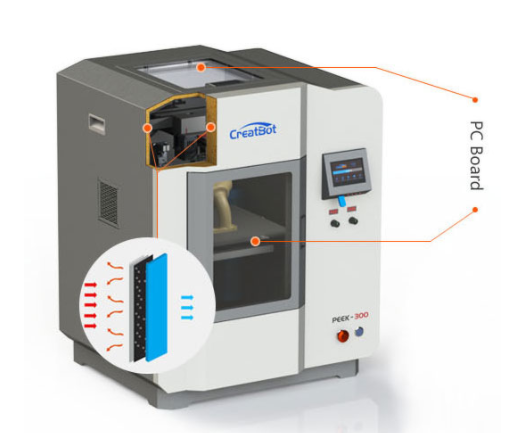

Triple Heat Isolation
Triple heat isolation is made of double insulation chamber, advanced insulation materials and vacuum double PC boards. It is
guarantee of ultra performance and safety.
guarantee of ultra performance and safety.

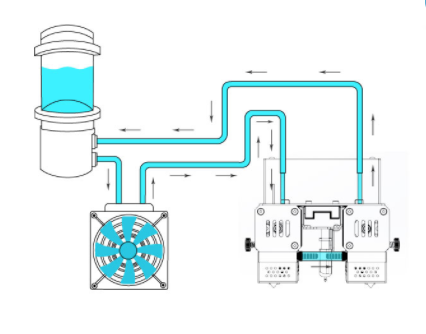

Cooling System
Cooling system is one of the important parts to constitute the whole thermal system. It is made of
(1) liquid cooling. Circulating liquid can be used effectively for a long time.
(2) Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.
(1) liquid cooling. Circulating liquid can be used effectively for a long time.
(2) Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.
Filaments Drying Room
The printer has a 4.3" touch screen, more easy to operate. Wealso provide One-Key to preheat, print, home as well as othershortcut keys.
