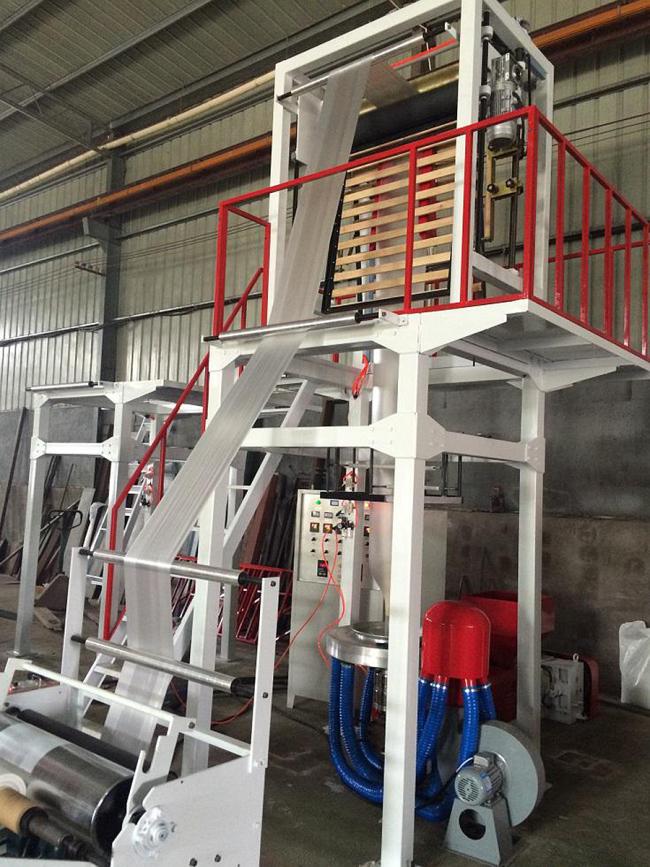

SJ-50 FILM BLOWING MACHINE
Main Technical Parameter:
| Model | SJ-50/MB600 | SJ-55/MB800 | SJ-60/MB1000 | SJ-65/MB1200 |
| Screw Diameter (mm) | Φ50 | Φ55 | Φ60 | Φ65 |
| Screw Length (L/D) | 28:1 | 28:1 | 28:1 | 28:1 |
| Film Width(mm) | 200-600 | 300-800 | 400-1000 | 600-1200 |
| Film Thickness(mm) | 0.006-0.10 | 0.006-0.10 | 0.006-0.10 | 0.006-0.10 |
| Max.Extrusion Output (kg/h) | 40 | 50 | 60 | 70 |
| Die Size(mm) | Φ60/100 | Φ80/150 | Φ100/200 | Φ120/250 |
| Cylinder Cooling (Kw) | 0.25×1 | 0.25×1 | 0.25×2 | 0.25×2 |
| Driving Motor(kw) | 11 | 15 | 18.5 | 22 |
| Total power(kw) | 28 | 36 | 42 | 48 |
| Cover Dimension L*W*H(m) | 5.0*2.1*3.8 | 5.0*2.3*4.0 | 5.5*3.3*4.2 | 5.8*3.6*4.5 |
| Weight of Machine(kg) | 1800 | 2000 | 2300 | 2600 |
