Plastic Industry Flexo Printing Machine Six Colors Automatic Paper Printer
Plastic Industry Six Colors Flexo Printing Machine Good Quality
Six Colours Flexo Printing Machine
1. Machine Introduction
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass
paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food,
supermarket handbag, vest bag and clothes bag, etc.
2. Machine Advantages
1. We use stronger steel plate for machine body, which make machine more stable.
2. Helical gear for whole machines, which make the printing quality more accurate and precise.
3. EPC, which adjust the edge of film or paper.
4. Automatic tension controlling, easy to operate.
5. Longer heating oven, improve the printing speed.
6. Doctor blade, which make the ink more equal. Double doctor blade is optional.
7. Separate ink motor to control the ink roller.
8. Ink pump is optional.
3. Machine Parameters
|
Model of Machine |
YT-6600 |
YT-6800 |
YT-61000 |
YT-61200 |
|
Max.Width of Printing Material |
600mm |
800mm |
1000mm |
1200mm |
|
Max.Printing With |
560mm |
760mm |
960mm |
1160mm |
|
Length Range of Printed Product |
191-914mm |
191-914mm |
191-914mm |
191-914mm |
|
Max.Diameter of Roll Material |
φ450mm |
φ450mm |
φ450mm |
φ450mm |
|
Printing Speed |
5~50m/min |
5~50m/min |
5~50m/min |
5~50m/min |
|
Thickness of plate(Including Two-sides Glue Paper) |
2.38mm |
2.38mm |
2.38mm |
2.38mm |
|
Total Power |
10kw |
10kw |
11kw |
11kw |
|
Weight of Machine |
3500kg |
4200kg |
5000kg |
5500kg |
|
Overall Dimensions(mm) |
3900×1660×2950 |
3900×1860×2950 |
3900×2060×2950 |
3900×2260×2950 |

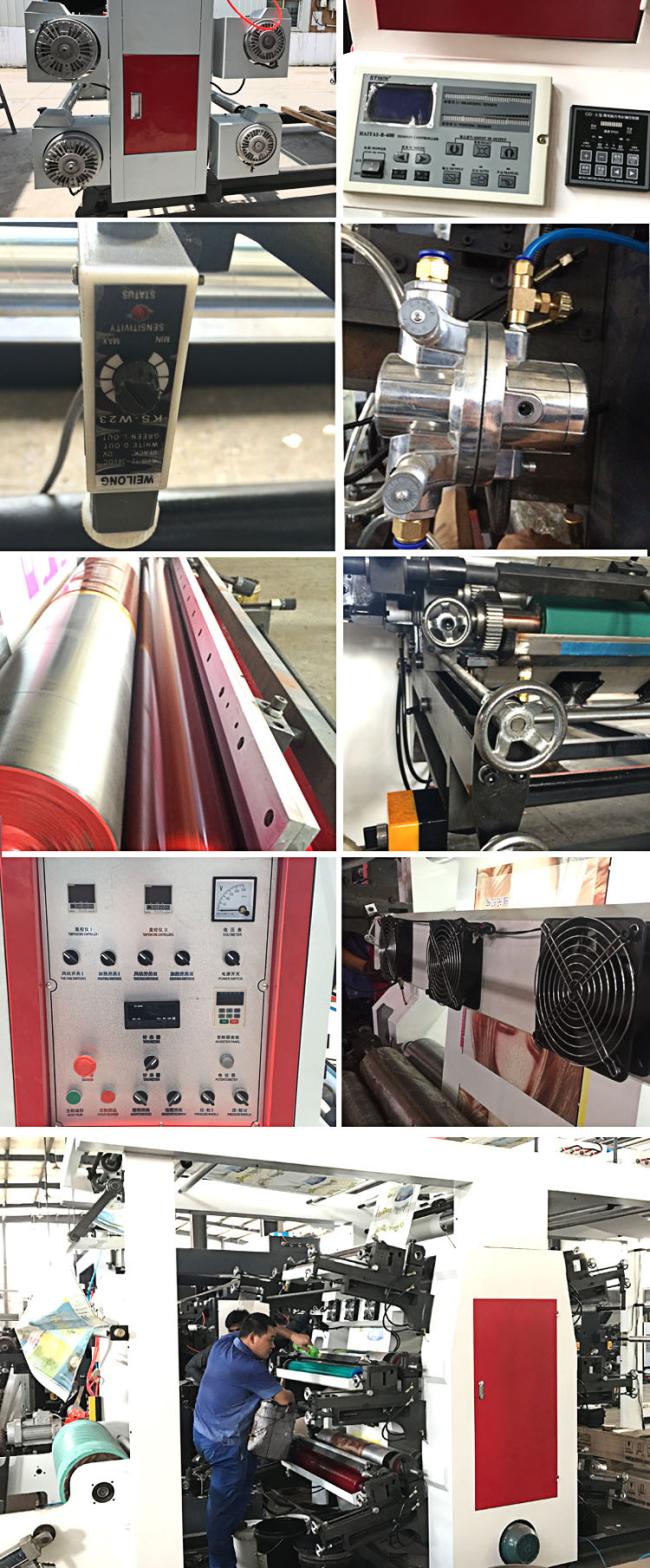

4. Machine Details
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
