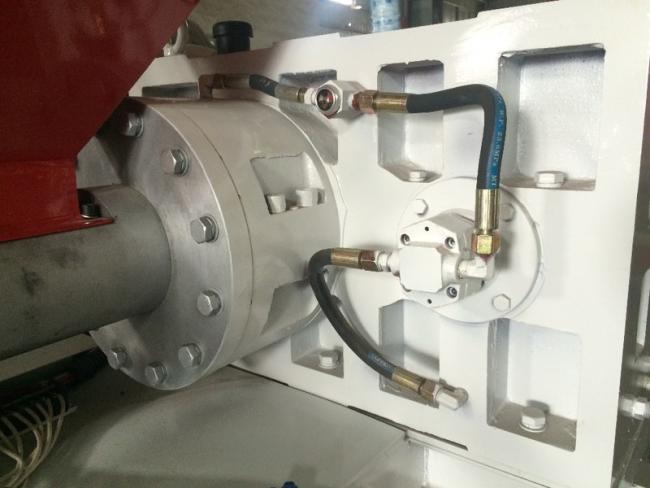

Name: Gearbox
Brand: Ruigao
Original:Hangzhou
it is hard surface gearbox. with Oil Lubrication system and water cooling system
High Speed Plastic Film Blowing Machine PE LDPE HDPE Film Nylon Extruder Machine
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
RUIGAO
Product Description

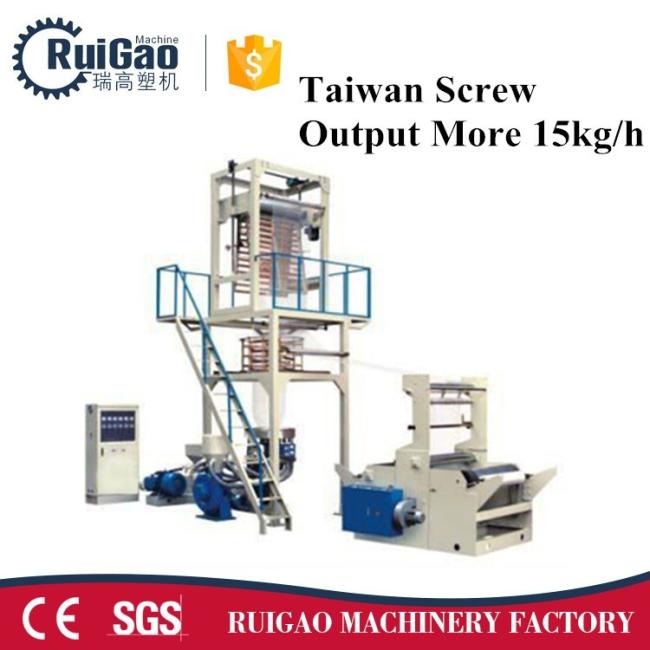

Film Taiwan Screw High Speed PE LDPE HDPE Plastic Nylon Film Blown Extruder Machine Price
Product Description
|
Model
|
SJ-50/MC600
|
SJ-55/MC800
|
SJ-60/MC1000
|
SJ-65/MC1200
|
|
Screw Diameter (mm)
|
Φ50
|
Φ55
|
Φ60
|
Φ65
|
|
Screw Length (L/D)
|
28:1
|
28:1
|
28:1
|
28:1
|
|
Film Width(mm)
|
200-600
|
300-800
|
400-1000
|
600-1200
|
|
Film Thickness(mm)
|
0.006-0.10
|
0.006-0.10
|
0.006-0.10
|
0.006-0.10
|
|
Max.Extrusion Output (kg/h)
|
45
|
55
|
60
|
70
|
|
Die Size(mm)
|
Φ60/80
|
Φ80/100
|
Φ100/150
|
Φ100/200
|
|
Cylinder Cooling (Kw)
|
0.13
|
0.13*2
|
0.13*2
|
0.13*2
|
|
Driving Motor(kw)
|
11
|
15
|
18.5
|
22
|
|
Total power(kw)
|
28
|
36
|
42
|
48
|
|
Cover Dimension(m)
|
5.0*2.1*4.2
|
5.0*2.3*4.5
|
5.5*3.3*4.8
|
5.8*3.6*5
|
|
Weight of Machine(kg)
|
2200
|
2500
|
2700
|
3000
|
Detailed Images
Machine Parts
Main Features
Name: Main driving motor
Brand: Siemens
Original: Germany
Reaching CE standard, longer life, higher quality
Machine Parts

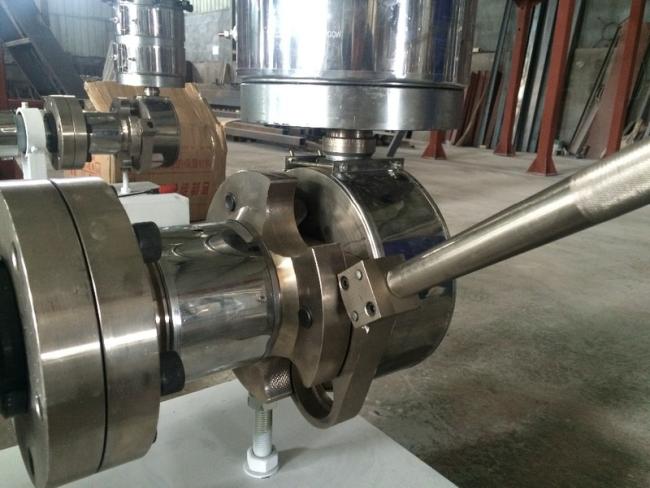

Name: Fast Screen Changer
Brand: Ruigao
Original: Chinese
It is 45 Steel Materials, very stronger, non leakage
Main Features
Name: High Speed Die Head
Brand: Ruigao
Original: Chinese
It is 45 Steel Materials.
it is processed by Taiwan Machine Center, Taiwan design
Machine Feature
Name: Double vent air ring
Brand: Ruigao
Original: Chinese
It is aluminum double vent air ring, which cool the film faster. And it is controlled by LG inverter
Machine Feature
Name: Gusset Parts
Brand: RuiGao
Original: Chinese
The gusset parts is copied from Taiwan
Machine Feature
Name: Electric Box
Brand: RuiGao
Original: Chinese
Temperature controller is Omron Brand
Inverter is LG brand
Switch is CHINT brand, best supplier of China
Machine Feature
Name: Double rewinder
Brand: RuiGao
Original: Chinese
It is with Air shaft, Cutting knife and LG Brand Inverter Controlling.
Related Products
Hot Sale Rotary Die Head High Speed Polythene Polyethylene Plastic PE LDPE HDPE Mini Film Blowing Machine Price
100% Response Rate
Automatic High Speed T-shirt Small Shopping bag Polypropylene Plastic Bag Making Machine Price For Sale
100% Response Rate
High Speed 6 color Paper Bag Plastic Film Flexographic Flexo Printing machine price
100% Response Rate
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
Please trust us, You won't be disppointed, We will provide high Quality machine and Factory price
